Fiducial errors
This error message will be displayed if it was not possible to find or detect
a fiducial.
Click on OK to acknowledge and then select from the functions displayed:
Abort process. PCB With this function you can abort processing
(see section ’Abort processing PCB’ on page 17).
Continue processing With this function you can continue processing.
Display errors menu With this function you can display the list of the machine errors which have
occurred on the screen.
Single functions Select this menu to correct the error.
Gantry
Resume placement – Transport the board onto the output conveyor.
of PCB without – Replace the board on the input conveyor.
components loss – Transport the board onto the processing conveyor. The board
is stopped there and clamped.
– Now select Continue processing.
Nozzle configuration errors
If an error occurs in connection with the nozzle configuration or if the con-
figuration has to be changed, the warning box Nozzle configuration error
Gantry 1/2/3/4 will be displayed on the screen.
Abort process Click on the small 'Abort process' box followed by the OK button to abort
the process.
SF Gantries Select the submenu Nozzle configuration revolver head and
1/2/3/4 menu change the nozzle.
When you quit the SF menu, a head reference run and a height reference
run with vacuum test will be carried out.
Continue processing With this function you can continue processing.
46
PCB barcode error (option)
If it was not possible to read the barcode properly, the following selection
and dialog box will be displayed on the screen.
enter the correct barcode using the keyboard,
transport the PCB or
remove the PCB from the input conveyor.
Continue processing With this function you can continue processing.
Coupling/uncoupling the component changeover table
Safety instructions for coupling and uncoupling the component
changeover tables
WARNING
NEVER reach into the gap between the component changeover tables
and the placement system frame (item 1) while the machine is running.
The component changeover table must be coupled to the placement sys-
tem whenever the power cable for the component changeover tables is
plugged into or removed from the placement system socket (item 2).
NEVER plug the component changeover table connecting cable into the
placement system socket and then operate the component changeover
table from outside the placement system via the compressed air controls
(item 3).
47

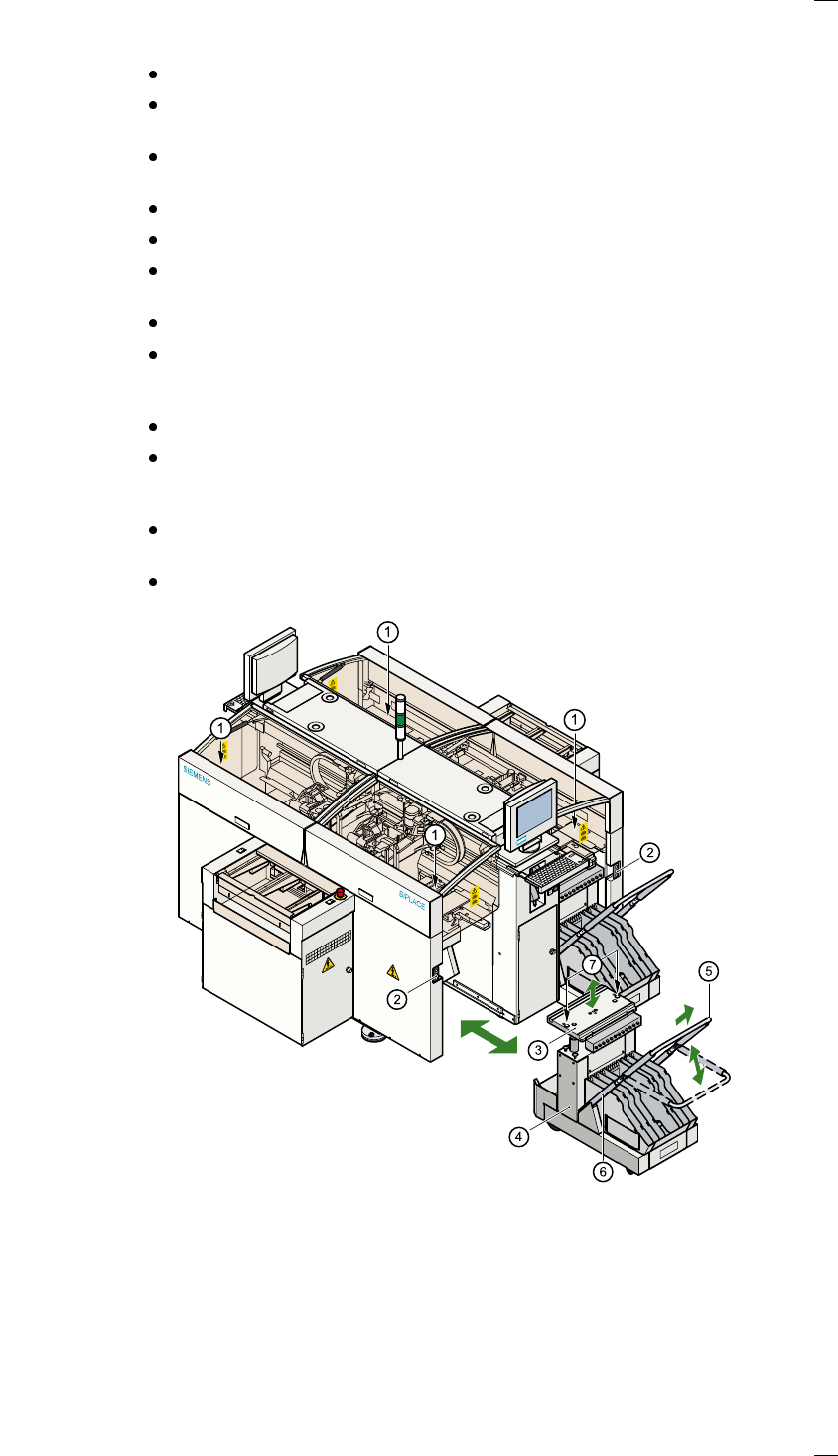

Uncoupling the component changeover table
From the MAIN VIEW menu, click on the STOP PROCESSING icon.
The PCB in progress will be completed. The icons of the SINGLE FUNC-
TIONS menus will then be activated.
Click on the SINGLE FUNCTIONS GANTRY X icon for the gantry you
wish to use (gantry 1, 2, 3 or 4).
Click on the GANTRY FUNCTIONS icon.
From this menu, click on the APPROACH SET-UP POSITION button.
The selected placement head will move over the PCB conveyor so that it
cannot be damaged when the component changeover table is changed.
Lift up the protective cover on the selected gantry.
Pull the two actuating tubes (item 6) towards you and, at the same time,
raise the locking bar (item 5). This will lock the raised component
changeover table plate in its top end position.
Press the button to open the cover flap (item 1).
Press the button (item 1) to raise the component changeover table plate
(item 3) until the component changeover table plate reaches its top end
position.
Unplug (item 2) the component changeover table from the placement sys-
tem.
Pull out the component changeover table.
a Button for raising and lowering the component changeover table plate
beneath the cover flap
s Plug for connecting the component changeover table cable
d component changeover table plate, can be raised and lowered
f component changeover table
g Locking bar
h Actuating tube
j Centering holes for the centering pins
