5 Abbreviations The followin g abbrev iations are em ployed in this quick ref erence g uide: #E Error counte r BC Barcode BE, Cmp, C O Component DEV Originator of the error GF Package for m IC Input conve yor IC Intermed…
4
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
Track errors. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
Machine errors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
Transport errors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
Fiducial errors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45
Nozzle configuration errors. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45
PCB barcode error (option). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46
Coupling/uncoupling the component changeover table . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46
Safety instructions for coupling and uncoupling the component changeover tables. . . . . 46
Uncoupling the component changeover table. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47
Coupling the component changeover table. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48
Index . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49
Flowchart "Switching ON the SIPLACE Line" . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53
5
Abbreviations
The following abbreviations are employed in this quick reference guide:
#E Error counter
BC Barcode
BE, Cmp, CO Component
DEV Originator of the error
GF Package form
IC Input conveyor
IC Intermediate conveyor
OC Output conveyor
PC1 Processing conveyor 1
PC2 Processing conveyor 2
PCB, LP Printed circuit board
Seg Segment
SF Single functions
TR/D/T Track/Division/Tray
Structure of the placement system
Switches and buttons on the placement system
The following diagram shows the positions of the switches and buttons on
the placement system.
a Gantry 1 j Component changeover table
s Gantry 2 k Controls, right (pneumatic system)
d Gantry 3 l Controls, left (electrical system)
f Gantry 4
g 12-segment Collect&Place head A PCB conveyor - output side
h Socket for the component
changeover table cable
E PCB conveyor - input side
6
Main switch
The main switch is used to switch the power supply to the placement sys-
tem on and off.
RISK OF DEATH
Certain parts inside the placement system continue to carry potentially
lethal voltages even when switched off at the main switch.
Key switch
The key switch is normally set to the "0" position during operation. The key
should be removed and kept in a safe place. Only authorized personnel
may turn it to the "I" position (line engineer mode), and then only for cer-
tain maintenance or servicing work.
Stop button
This button is used to stop placement on the placement system.
Start button
Use this button to start the placement system after switching on or elimi-
nating a fault.
Emergency stop mushroom-head push-button
The emergency stop mushroom-head push-button latches in place when it
is pressed. The power supply to the gantry axes, component changeover
tables, conveyor belts and cutting devices is interrupted and the power

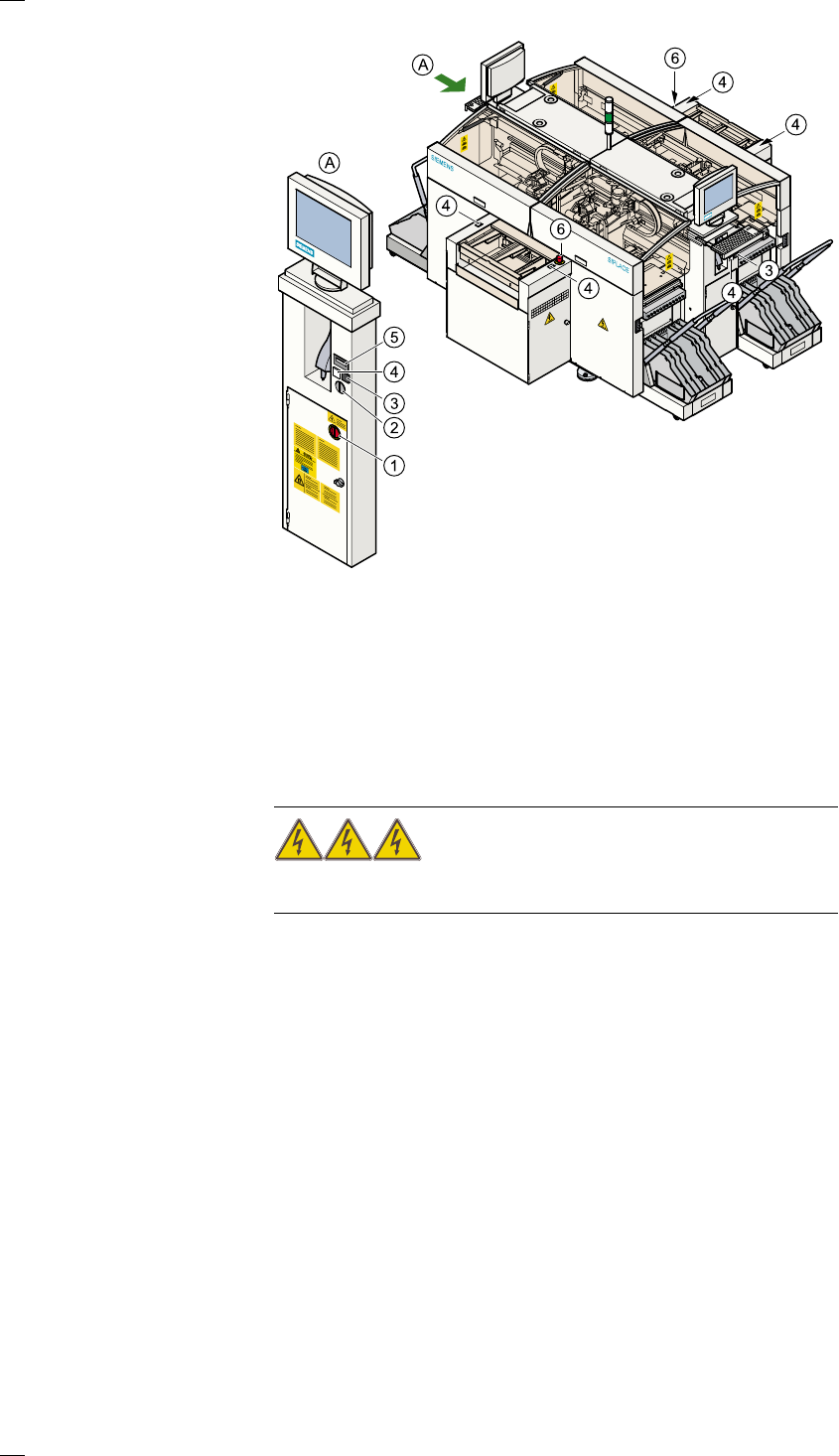

a Main switch (red with yellow enclosure) f Start button (white)
s Key switch g Component counter
d Stop button (black) h Emergency stop mushroom-
head push-button
AView: ’Left side of operating panel’
