00197696-02_IM_SIPLACE_Pro_12.1_EN.pdf - 第12页
Installation Manual 1 Introduction SIPLACE Pro 12.1 Edition 04/2015 10 Memory requirements - Example b: Complete SIPLACE Pro installation with the following characteristics: – 1000 o ptimized recipes in the system – Jobs…
1 Introduction Installation Manual
Edition 04/2015 SIPLACE Pro 12.1
9
1.4 Resource Requirements
Hard disk
– Windows and programming files:
– ~4000 MB
– Database and backup:
– ~Number of optimized recipes x 20 MB
Main memory
– Windows:
– ~200 MB.
– SQL Server:
– Typically 500 MB (RAM requirement depends on the data volume)
– LineControl Server
– ~100 MB
– For every client (Desk, LineControl GUI, Optimizer Toolkit) each
– ~100 MByte + number of recipes x number of placement positions / 1000 MB
Memory requirements - Example a:
Complete SIPLACE Pro installation with the following characteristics:
– 500 optimized recipes in the system
– Jobs with an average of seven recipes, each with 1000 placement positions
– One job is loaded in SIPLACE Pro Desk.
– A maximum of seven recipes are loaded in one production schedule in the LC GUI.
– Hard drive (minimum)
–~ 25 GB
– RAM (minimum)
– ~ 800 MB
Installation Manual 1 Introduction
SIPLACE Pro 12.1 Edition 04/2015
10
Memory requirements - Example b:
Complete SIPLACE Pro installation with the following characteristics:
– 1000 optimized recipes in the system
– Jobs with an average of ten recipes, each with 2000 placement positions
– One job is loaded in SIPLACE Pro Desk.
– One production plan with maximum 20 recipes is loaded in the LC GUI.
– Hard drive (minimum)
– ~ 50 GB
– RAM (minimum)
– ~ 1200 MB
2 System components and configurations Installation Manual
Edition 04/2015 SIPLACE Pro 12.1
11
2 System components and configura-
tions
This chapter describes the components of SIPLACE Pro and possible configurations.
2.1 Overview
2

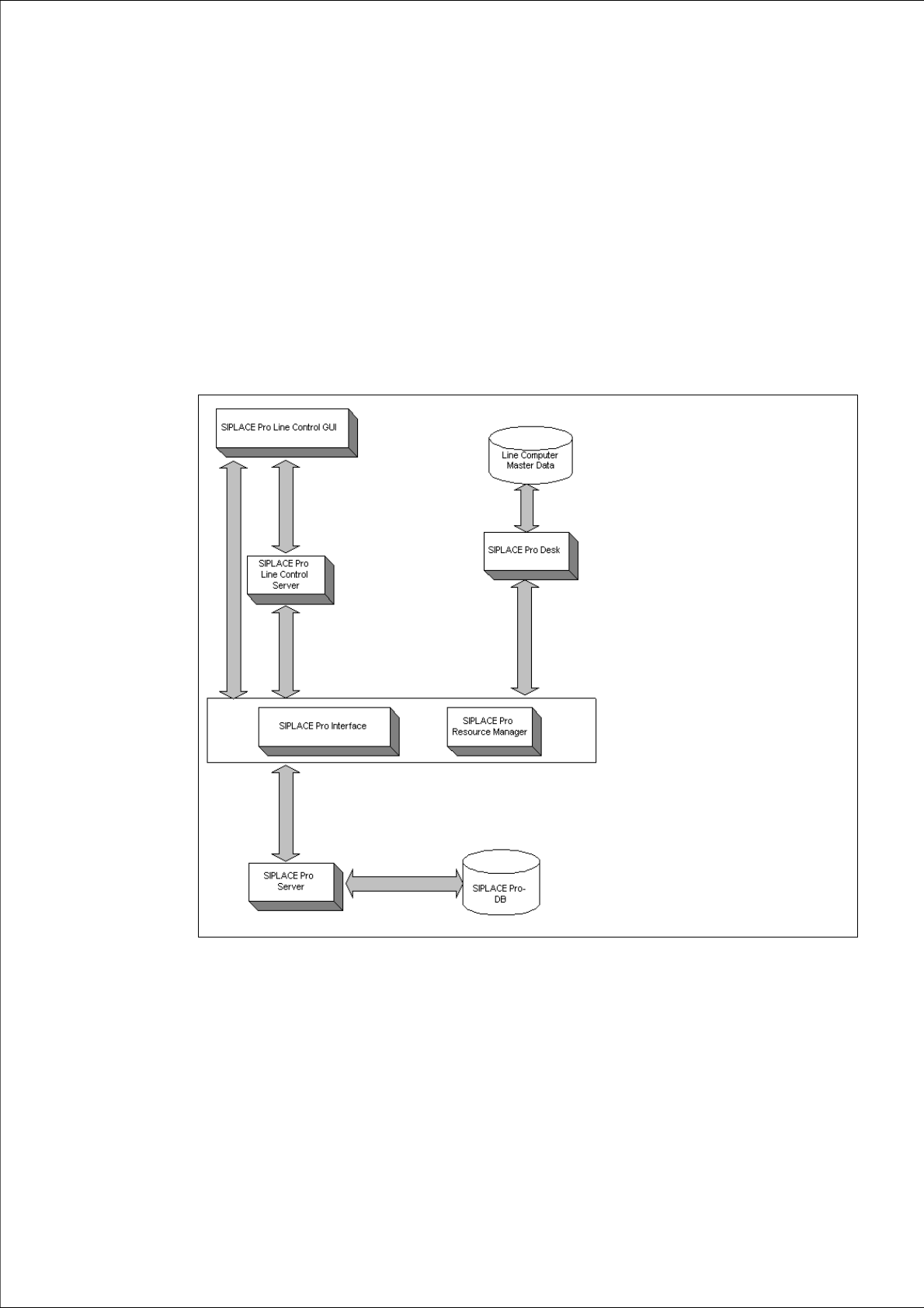

Fig. 2.1 - 1 Overview of SIPLACE Pro system components
