4 Installation of SIPLACE Pro and possible Setup Types Installation Manual

Edition 04/2015 SIPLACE Pro 12.1

4.3 Individual setup types and next steps

4.3.1 Setup Type – Custom

This setup type allows the experienced user to select any possible combination of SIPLACE Pro

components. However, you should use one of the other specified setup types if you are installing

standard components, since this means the necessary components are always installed and you

do not have to pay attention to the details.

Step 1

 Run through the steps in “Starting installation – first steps” on page 21.

 Select the Custom setup type

 Click Next.

Step 2

In the "Setup Features" dialog box, select the features you want to install.

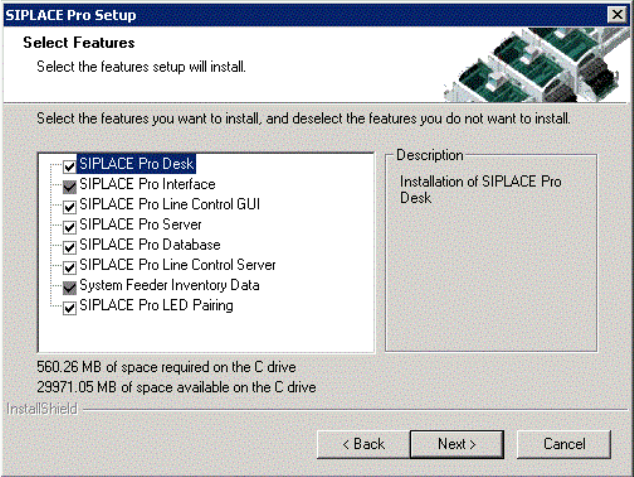

Fig. 4.3 - 1 "Select Features" dialog box

– The disk space required by all selected components is shown. The size information for

SIPLACE Pro Database is misleading, since it only takes into account the size of the SQL

scripts copied by InstallShield and installed for these components. The size of the database

itself should also be considered. The initial value is defined in a later dialog when creating a

new database. The database size is dynamic anyway - it will grow as required during use of

SIPLACE Pro.

Installation Manual 4 Installation of SIPLACE Pro and possible Setup Types

SIPLACE Pro 12.1 Edition 04/2015

 Select the features you want to install.

 Click Next.

Note

You need to install SIPLACE Pro Interface as minimum requirement for external applica-

tions.

Note

After choosing the feature "SIPLACE Pro Database" and clicking Next, setup immediate-

ly checks if SQL server is installed on the computer.

Note

From this point onwards, the dialog boxes displayed depend on which features have

been selected (either implicit via the other Setup Type selection or explicit in the Custom

Setup Type). The sequence varies according to which features and options have been

selected, so there are many possible combinations. It is not feasible to describe all the

combinations for Custom installation here. However, you will see the individual dialog

boxes occuring in the course of the following setup types.

4 Installation of SIPLACE Pro and possible Setup Types Installation Manual

Edition 04/2015 SIPLACE Pro 12.1

4.3.2 Setup Type – SIPLACE Pro Complete System

This setup type contains all SIPLACE Pro components for operating the system on a single com-

puter. Setup detects if SQL Server has already been installed.

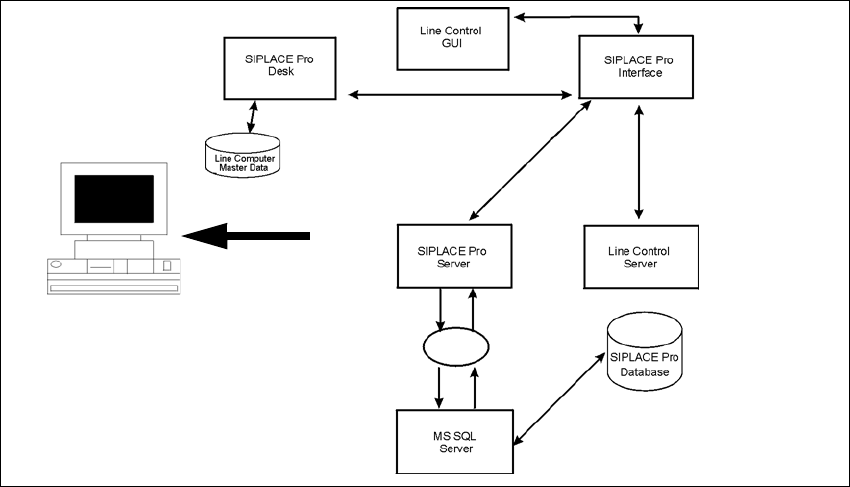

Fig. 4.3 - 2 Components – SIPLACE Pro Complete Installation

Select this type to install all SIPLACE Pro system components (Programming system, LC GUI, LC

Server) on one computer as described here. Even if you choose this Setup type, it is possible to

integrate further clients on other computers.

Step 1

 Run through the steps in “Starting installation – first steps” on page 21.

 Select the SIPLACE Pro complete system setup type

 Click Next.

Setup
