2 System components and configurations Installation Manual
Edition 04/2015 SIPLACE Pro 12.1
15
2.3 Stand-alone Configuration
Install all software components on one computer. This computer then functions as both server and
client. Optionally a second connection to the customer's network can be established via a second
network card.
2.3.1 Logical Layout
2
Fig. 2.3 - 1 Stand-alone Configuration - Logical Layout
Installation Manual 2 System components and configurations
SIPLACE Pro 12.1 Edition 04/2015
16
2.3.2 Physical Layout
2

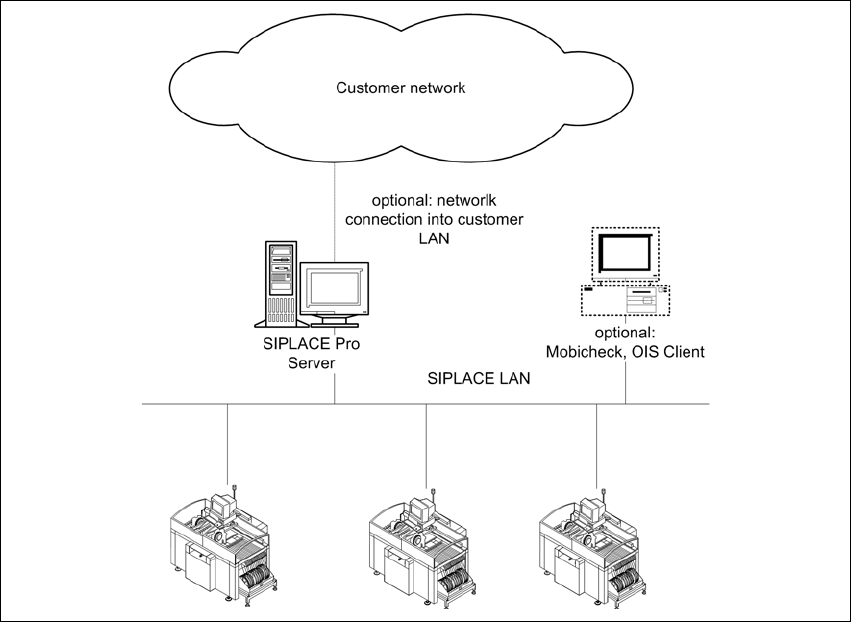

Fig. 2.3 - 2 Stand-alone Configuration - Physical Layout
2.3.3 Characteristics
– The SIPLACE Pro Server is a Windows Workstation Version.
– Up to 7 SIPLACE Machines are supported.
– SIPLACE Pro Server is configured in Workgroup mode.
– SIPLACE Pro Client machines can be connected, if they are in Workgroup mode and share
a shadow account with the server (like plr/plr)
– One Option is to connect the SIPLACE Pro server to the customer network to exchange data
with customer computer.
– No WINS or DNS Server is necessary, if all computer are connected to one network segment.
If the customer network is segmented by routers the optional network connection to the cus-
tomer network must be configured by the customer.
– Security settings for different user levels (operator, programmer etc.) inside SIPLACE Pro is
possible.
3 Important preparations prior to installation Installation Manual
Edition 04/2015 SIPLACE Pro 12.1
17
3 Important preparations prior to
installation
All computers must have been set up and prepared appropriately in advance for the complete in-
stallation of SIPLACE Pro to function correctly.
These preparatory measures demand knowledge about the administrative functions of Windows
and SQL Server. Please contact your system administrator for assistance if required.
This installation guide only describes the procedure for a installation configuration called "stand
alone installation" and "standard configuration".
3
3
Network access rights must have been set up in order to permit data exchange with the UNIX
line computer.
3
Caution
For more detailed information which software is essential and has to be successfully in-
stalled before conducting the installation of SIPLACE Pro please refer to the Support Me-
dia DVD and the respective manual.
Furthermore, you require Windows administrative rights for all computers on which
you are installing SIPLACE Pro.
Before installing SIPLACE Pro make sure you use Prerequisite Analyzer of Support Me-
dia and select SIPLACE Pro as planned Product to install all required missing prerequi-
sites for SIPLACE Pro (e.g. License Manager, Operation Manager, Error Reporter, Net
Framework).
Caution
If you install SIPLACE Pro via remote desktop connection, ensure that you establish a
connection to the session for administering the server. This can be done by using the pa-
rameter “/admin” when executing the remote desktop application mstsc.exe. To avoid
conflicts with running applications, ensure that no other users are logged on to the server
during the installation.
Note
By default, Support Media installs SQL Express editions only. If you want to use SQL
Server edition instead, install it manually by following the steps described in the SQL in-
stallation documentation on Support Media before using Prerequisite Analyzer for further
preparation. We strongly recommend you follow the installation documentation on Sup-
port Media, since it describes the settings needed for SIPLACE Line Software.
