MACHINE CONTROL CAN BUS Chapter Issue 12, Feb 18 Technical Reference Manual 7.61 PL3 SK4 Servo Node 1 1 - Board Load Mechanism (RTC Left to Right only) Figure 7-14 Servo Motor Node 10 Connectors P i n N o .S i g n a lP i…

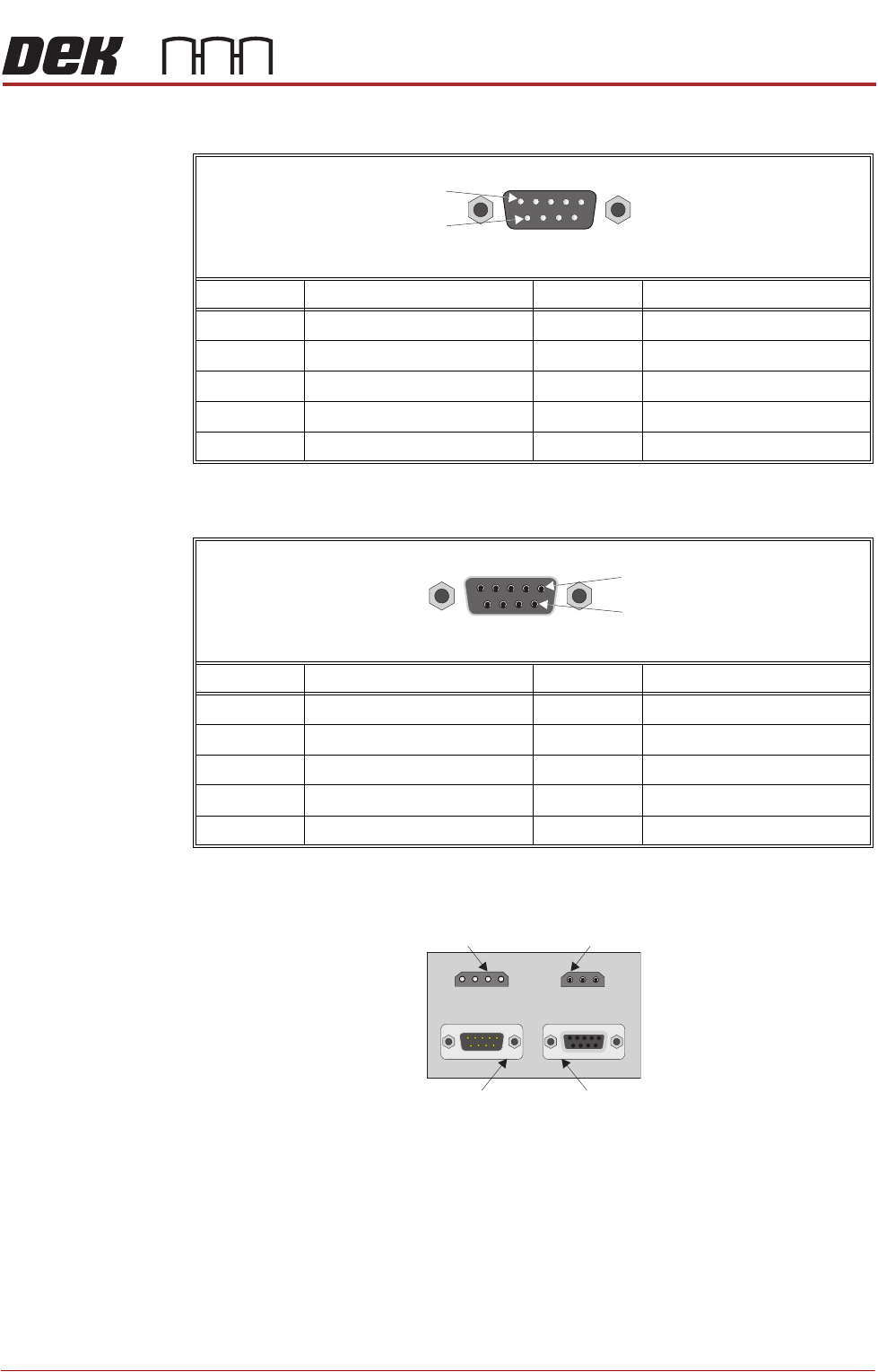

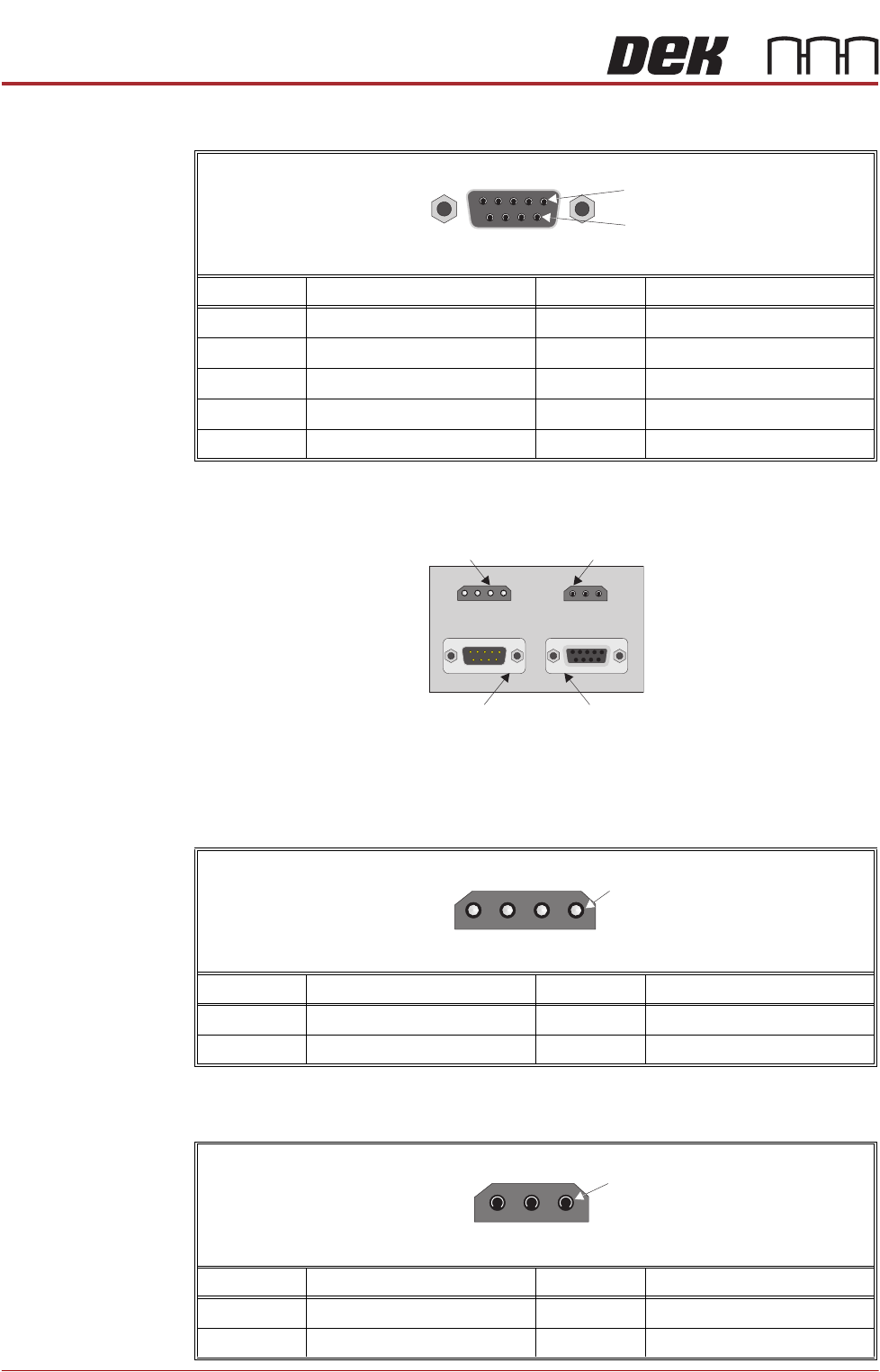

MACHINE CONTROL
CAN BUS
7.60 Technical Reference Manual Chapter Issue 12, Feb 18
SK4
Servo Node 10 -
Paste Dispenser
Motor
Figure 7-13 Servo Motor Node 10 Connectors
PL2
SK1
Pin No. Signal Pin No. Signal
1N/C 6N/C
2CAN_L 7CAN_H
3CAN_GND 8N/C
4N/C 9N/C
5N/C
9 Way D Type Socket
1
6
Pin No. Signal Pin No. Signal
1 +42V SW 3 +24V US
20V 4N/C
Pin No. Signal Pin No. Signal
1+24V US 30V
2 I/O 3
PL2
(Supply In)
PL3
(Can Out)
SK1
(Supply Out)
SK4
(CAN In)
1
4 Way Trident Plug
1
3 Way Trident Socket
MACHINE CONTROL
CAN BUS
Chapter Issue 12, Feb 18 Technical Reference Manual 7.61
PL3
SK4
Servo Node 11 -
Board Load
Mechanism (RTC
Left to Right only)
Figure 7-14 Servo Motor Node 10 Connectors
Pin No.SignalPin No.Signal
1N/C 6N/C
2CAN_L 7CAN_H
3CAN_GND 8N/C
4N/C 9N/C
5N/C
Pin No.SignalPin No.Signal
1N/C 6N/C
2CAN_L 7CAN_H
3CAN_GND 8N/C
4N/C 9N/C
5N/C
9 Way D Type Plug
1
6
9 Way D Type Socket
1
6
PL2
(Supply In)
PL3
(Can Out)
SK1
(Supply Out)
SK4
(CAN In)
MACHINE CONTROL
CAN BUS
7.62 Technical Reference Manual Chapter Issue 12, Feb 18
PL2
SK1
PL3
Pin No. Signal Pin No. Signal
1 +42V SW 3 +24V US
20V 4N/C
Pin No. Signal Pin No. Signal
1+24V US 30V
2 Sensor Signal
Pin No. Signal Pin No. Signal
1N/C 6N/C
2CAN_L 7CAN_H
3CAN_GND 8N/C
4N/C 9N/C
5N/C
1
4 Way Trident Plug
1
3 Way Trident Socket
9 Way D Type Plug
1
6
