Type 2 Covers In order to protect personnel and prevent damage, covers are fitted to the
printer.
The sliding cover, the rear printhead cover and two upper side panels which
house the control switches protect the upper part of the printer. The four corner
panels, front and rear panels, safety covers and the front and rear side panels
protect the lower part of the printer.
NOTE
Some of the covers can only be removed in a specific order due to the covers
interlocking with each other.
Cover Removal Before removing covers ensure that the supplies (air and electrical) have been
isolated from the printer.
Quarter-Turn Ring
Fasteners
To remove a panel secured with quarter-turn ring fasteners, turn the fastener
ring anti-clockwise (-) by a quarter-turn and pull out. To refit a panel, locate the
fastener shaft into the fastener, push against the spring whilst turning the ring
clockwise a quarter turn to secure (+).

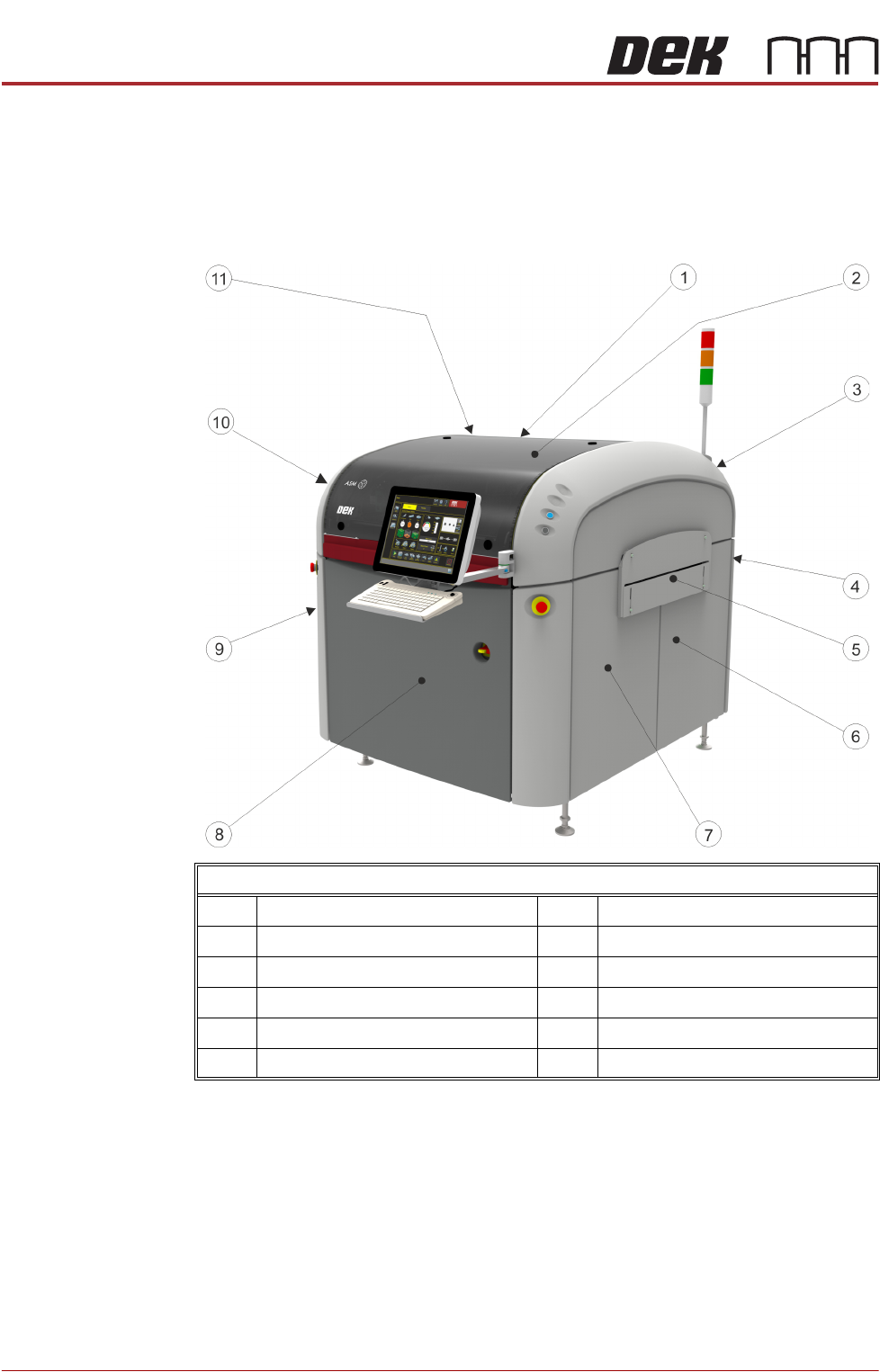

Front Left Quarter View
1 Rear Printhead Cover 7 Front Side Panel (2 positions)
2 Sliding Cover 8 Front Panel
3 Right Hand Upper Side Panel 9 Front Corner Panel (2 positions)
4 Rear Corner Panel (2 positions) 10 Left Hand Upper Side Panel
5 Safety Cover (2 positions) 11 Rear Panel
6 Rear Side Panel (2 positions)
COVERS
PRINTER COVERS
Chapter Issue 11, Jan 17 Technical Reference Manual 3.11
Figure 3-3 Quarter-Turn Ring Fastener
Figure 3-4 Fastener Locations
+
-
Locations (behind panels) of the Quarter Turn Ring Fasteners
Front Left Quarter
Rear Left Quarter
COVERS
PRINTER COVERS
3.12 Technical Reference Manual Chapter Issue 11, Jan 17
4mm Hexagonal
Head Quarter-Turn
Fasteners
To prevent personnel from having direct access to areas of the printer where
safety hazards exist, the front and rear panels each have two hexagonal head
fasteners. These fasteners are covered by the sliding cover, in the front of the
printer, and the rear printhead cover, at the back. Once access is gained, a
4mm Allen Key is used to release the fasteners on the top of the panel.
Figure 3-5 Front Safety Fasteners
Figure 3-6 Rear Safety Fasteners
Locating Pins Side, corner, front and rear panels are secured on location pins at the base of
the printer. Plates mounted on each corner of the printer (see vignette below)
house the four pins; the two centre pins are for the corner panels and two outer
pins are for the side, front and rear panels.
4mm Hexagonal Head
Quarter-Turn Fastener
View on Printer Rear Right Corner
4mm Hexagonal Head
Quarter-Turn Fastener
View on Printer Front Right Corner
