PRINTER OVERVIEW
MODULE OVERVIEWS
Chapter Issue 11, Jan 17 Technical Reference Manual 4.1
CHAPTER 4 PRINTER OVERVIEW
MODULE OVERVIEWS
This chapter describes the function and the purpose of each of the printer
modules, their location within the printer and the relationship and interaction
between modules, if applicable.
For detailed information regarding each module refer to the relevant module
chapter in this manual.
Man Machine
Interface (MMI)
Module
The MMI module enables communication and interaction between the user and
the printer.

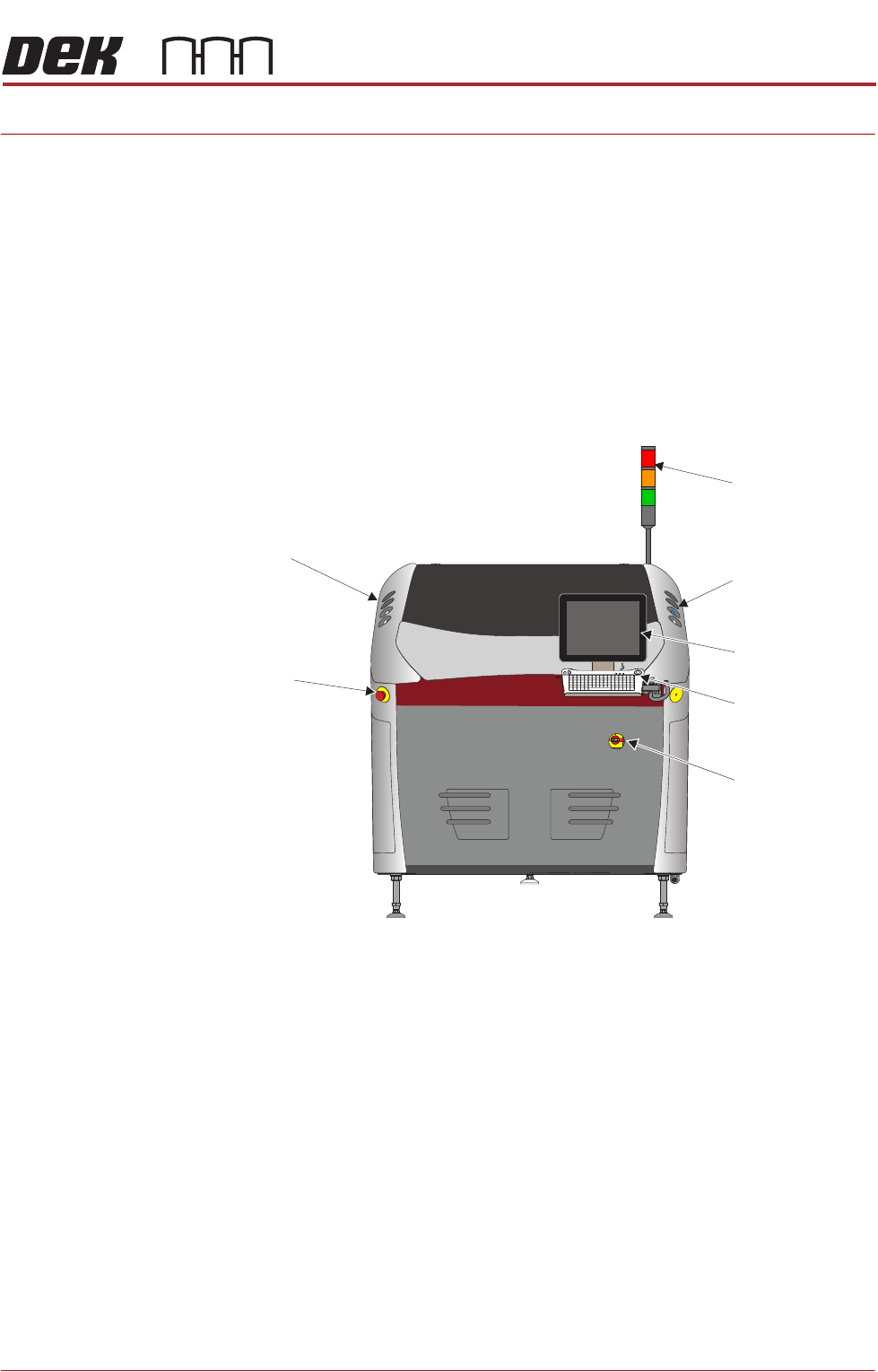

Figure 4-1 Type 1 Covers
View on Front of Machine
Control Buttons
Control Buttons
Beacon
E Stop
Touch creenS
Monitor
Keyboard/
MouseTrackball
Mains Isolator
Switch
