MACHINE CONTROL CAN BUS 7.66 Technical Reference Manual C hapter Issue 12, Feb 18 SK4 Servo Node 16 - Board Load Mechanism (R TC Right to Left only) Figure 7-17 Servo Motor Node 10 Connectors PL2 SK1 Pin No. Signal Pin N…
MACHINE CONTROL
CAN BUS
Chapter Issue 12, Feb 18 Technical Reference Manual 7.65

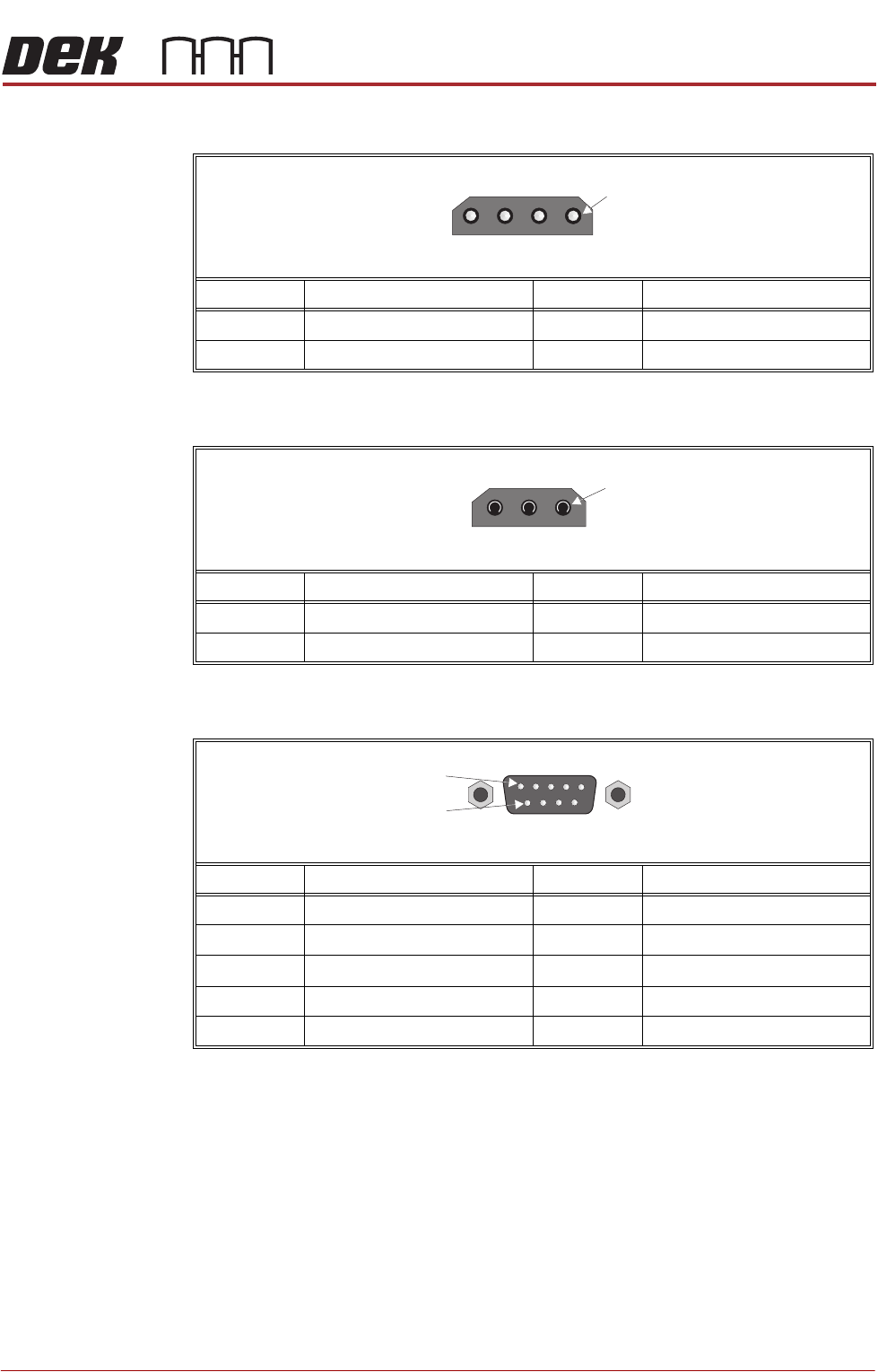

PL2
SK1
PL3
Pin No.SignalPin No.Signal
1 +42V SW 3 +24V US
20V 4N/C
Pin No.SignalPin No.Signal
1+24V US 30V
2 Sensor Signal
Pin No.SignalPin No.Signal
1N/C 6N/C
2CAN_L 7CAN_H
3CAN_GND 8N/C
4N/C 9N/C
5N/C
1
4 Way Trident Plug
1
3 Way Trident Socket
9 Way D Type Plug
1
6
MACHINE CONTROL
CAN BUS
7.66 Technical Reference Manual Chapter Issue 12, Feb 18
SK4
Servo Node 16 -
Board Load
Mechanism (RTC
Right to Left only)
Figure 7-17 Servo Motor Node 10 Connectors
PL2
SK1
Pin No. Signal Pin No. Signal
1N/C 6N/C
2CAN_L 7CAN_H
3CAN_GND 8N/C
4N/C 9N/C
5N/C
9 Way D Type Socket
1
6
Pin No. Signal Pin No. Signal
1 +42V SW 3 +24V US
20V 4N/C
Pin No. Signal Pin No. Signal
1+24V US 30V
2 Sensor Signal
PL2
(Supply In)
PL3
(Can Out)
SK1
(Supply Out)
SK4
(CAN In)
1
4 Way Trident Plug
1
3 Way Trident Socket
MACHINE CONTROL
CAN BUS
Chapter Issue 12, Feb 18 Technical Reference Manual 7.67
PL3
SK4
Servo Node 18 -
Proactiv Interface
Figure 7-18 Node 18
Pin No.SignalPin No.Signal
1N/C 6N/C
2CAN_L 7CAN_H
3CAN_GND 8N/C
4N/C 9N/C
5N/C
Pin No.SignalPin No.Signal
1N/C 6N/C
2CAN_L 7CAN_H
3CAN_GND 8N/C
4N/C 9N/C
5N/C
9 Way D Type Plug
1
6
9 Way D Type Socket
1
6
MAIN I/O NODE 18
200811 ISSUE
N18SK01
N18SK05
N18SK04
JP1
N2SK08
N2SK10
