10 P/N 1048257_03  2018 Nordson Corporation PatternPro Edition 02/18 First Aid If molten hot melt comes in contact with your skin: 1. Do NOT attempt to remove the molten hot melt from your skin. 2. Immediately soak the …

P/N 1048257_03

 2018 Nordson Corporation

PatternPro

Edition 02/18

General Safety Warnings and Cautions (contd)

Table 1 General Safety Warnings and Cautions (contd)

Equipment

Type

Warning or Caution

CAUTION: Hot surfaces! Avoid contact with the hot metal surfaces of

applicators, hoses, and certain components of the melter. If contact

can not be avoided, wear heat‐protective gloves and clothing when

working around heated equipment. Failure to avoid contact with hot

metal surfaces can result in personal injury.

CAUTION: Some Nordson melters are specifically designed to

process polyurethane reactive (PUR) hot melt. Attempting to process

PUR in equipment not specifically designed for this purpose can

damage the equipment and cause premature reaction of the hot melt.

If you are unsure of the equipment's ability to process PUR, contact

your Nordson representative for assistance.

HM, CA

CAUTION: Before using any cleaning or flushing compound on or in

the equipment, read and comply with the manufacturer's instructions

and the MSDS supplied with the compound. Some cleaning

compounds can react unpredictably with hot melt or cold adhesive,

resulting in damage to the equipment.

CAUTION: Nordson hot melt equipment is factory tested with Nordson

Type R fluid that contains polyester adipate plasticizer. Certain hot

melt materials can react with Type R fluid and form a solid gum that

can clog the equipment. Before using the equipment, confirm that the

hot melt is compatible with Type R fluid.

Other Safety Precautions

 Do not use an open flame to heat hot melt system components.

 Check high pressure hoses daily for signs of excessive wear, damage, or

leaks.

 Never point a dispensing handapplicator at yourself or others.

 Suspend dispensing handapplicators by their proper suspension point.

P/N 1048257_03

 2018 Nordson Corporation

PatternPro

Edition 02/18

First Aid

If molten hot melt comes in contact with your skin:

1. Do NOT attempt to remove the molten hot melt from your skin.

2. Immediately soak the affected area in clean, cold water until the hot melt

has cooled.

3. Do NOT attempt to remove the solidified hot melt from your skin.

4. In case of severe burns, treat for shock.

5. Seek expert medical attention immediately. Give the MSDS for the hot

melt to the medical personnel providing treatment.

Safety Labels and Tags

Figure 1 illustrates the location of the product safety labels affixed to the

equipment. Table 2 provides an illustration of the hazard identification

symbols that appear on each safety label, the meaning of the symbol, or the

exact wording of any safety message. Occasionally, the safety labels may be

located elsewhere on the applicator.

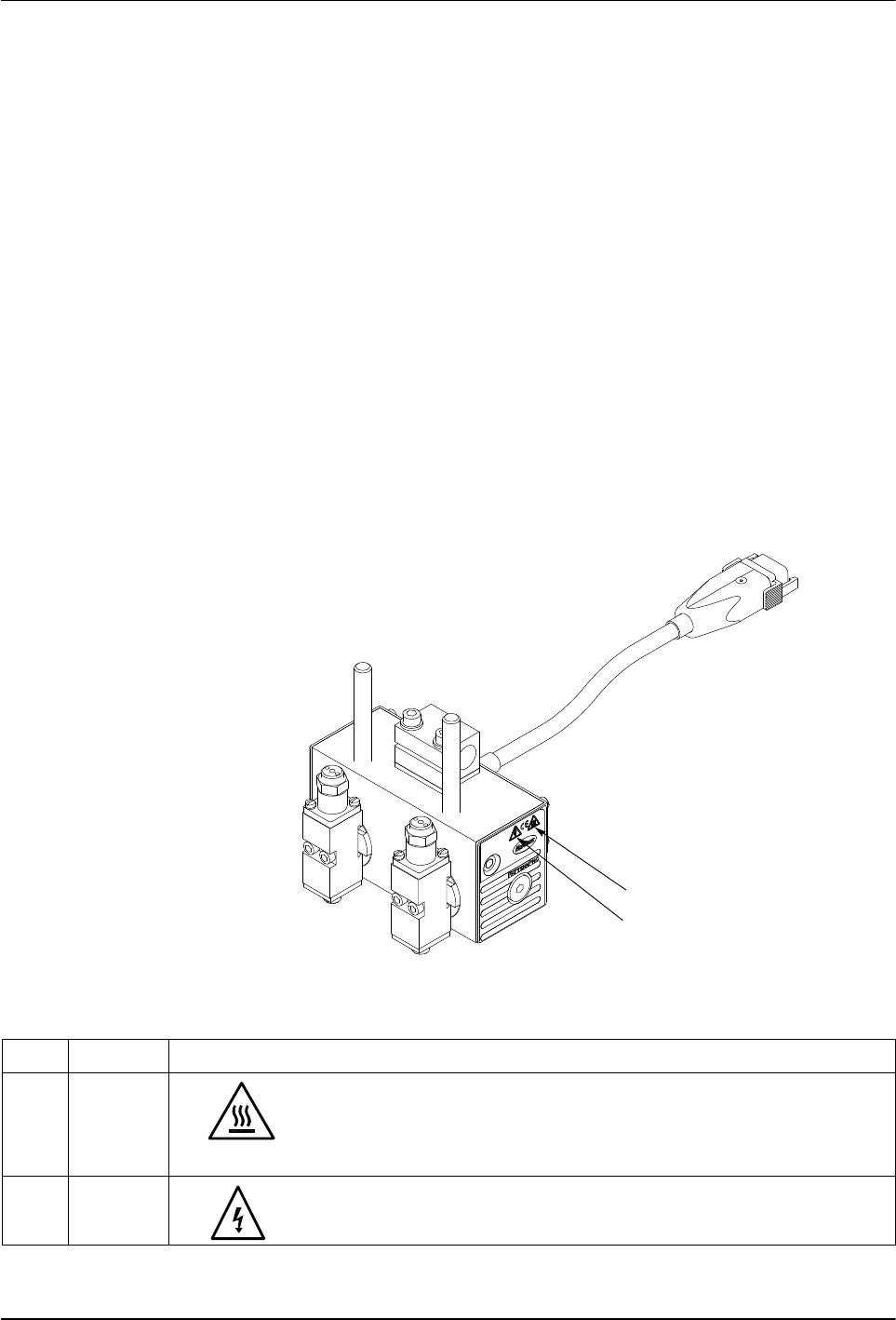

Fig. 1 Safety labels

Table 2 Safety Labels

Item

Part Description

1. N/A

WARNING: Hot surface! Before touching the applicator body, allow the

applicator to cool, or wear heat‐protective gloves. Failure to allow the

applicator body to cool or to wear heat‐protective gloves may cause

personal injury.

2. N/A

WARNING: Risk of electrical shock. Failure to observe may result in

personal injury, death, or equipment damage.

P/N 1048257_03

 2018 Nordson Corporation

PatternPro

Edition 02/18

Description

The PatternPro pneumatic applicator has a unique rotating disk design (twist

adapter), which enables an applicator module to be pivoted for application of

variable pitch patterns.

The applicator is designed to be configured with the following components:

 Applicator modules

 Nozzles

 Solenoid valves

 Cordsets

 Glue connector / Filter

Refer to Figure 3 for applicator Configuration Options and Table 3 for

Component Specifications.

Intended Uses

PatternPro applicators are designed for use

 in industrial applications that require the deposition of a precise

application of hot melt adhesive onto a moving substrate

 with an electrically controlled solenoid valve

 with melters, hoses, and pattern controllers designed and manufactured

by Nordson Corporation

NOTE: The applicator should only be connected to approved devices. Use

only new Nordson replacement parts or approved factory refurbished parts.
