Key Components

4

1

5

8

6

237

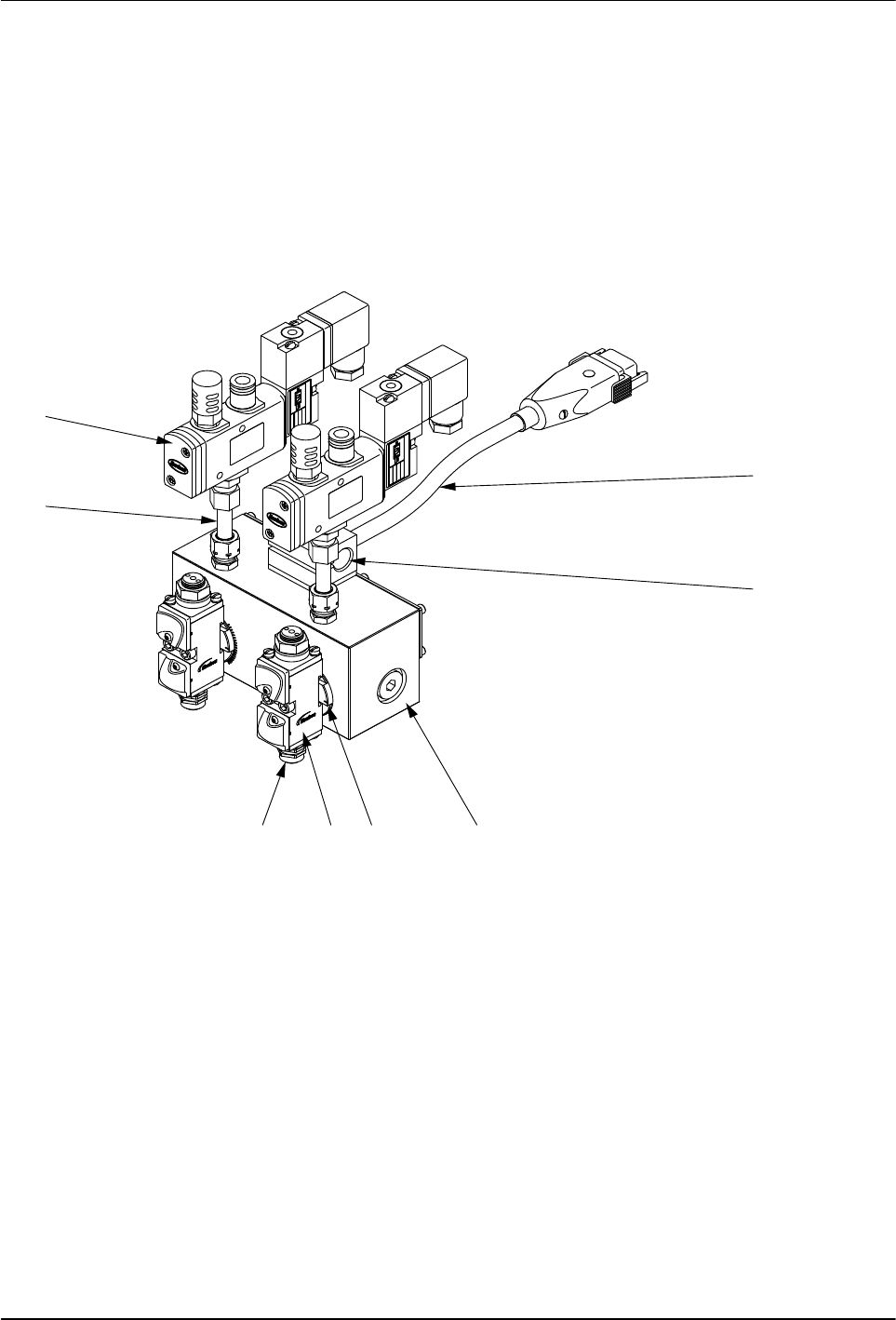

Fig. 2 Key Components of the applicator

1 Applicator Module

2 Nozzle

3 Rotating disk

4 Cordset

5 Solenoid valve

6 Tube to Solenoid valve

7 Applicator body

8 Mounting bracket

Note: Hose connector is located on the back of the applicator.

13

P/N 1048257_03

 2018 Nordson Corporation

PatternPro

Edition 02/18

Applicator Configuration Options

The PatternPro should be configured with the “PatternPro Excel Configurator”.

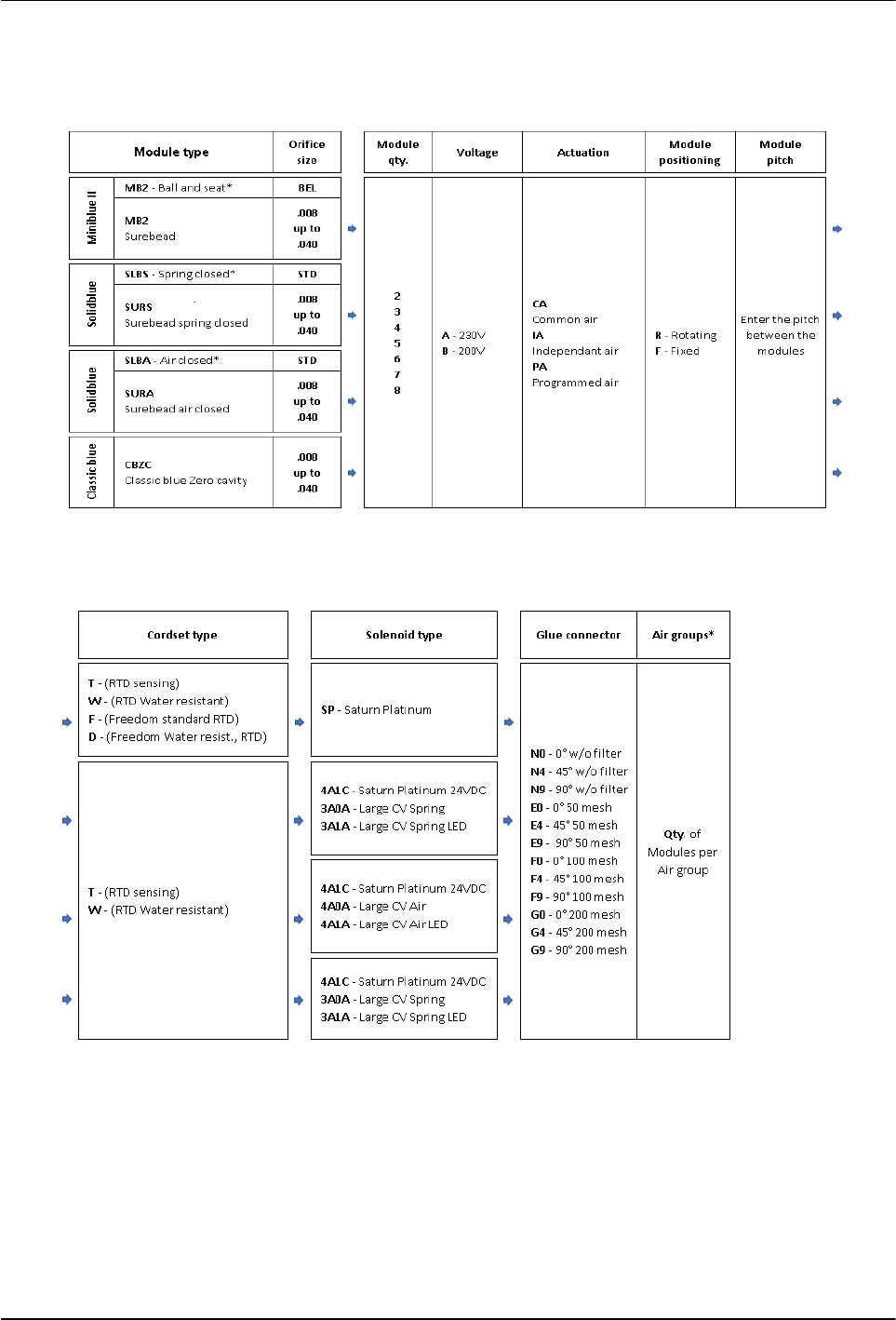

Fig. 3 Component Options for the PatternPro applicator. Refer to Table 3 for Component Specifications.

14

P/N 1048257_03

 2018 Nordson Corporation

PatternPro

Edition 02/18

Component Specifications

Table 3 Components Specifications
