2 Retrofitt. Instruct. RV6-DLM1 Head & Nozzle Chang. RV6 Standard (Optionen) S IPLACE S-25 HM 2.4 Sequence: Inst alling the Hardware 02/01 Issue 62 .H\ 1. 4 Rubber- metal vibr ation dampers (enclos ed package from…
SIPLACE S-25 HM 2 Retrofitt. Instruct. RV6-DLM1 Head & Nozzle Chang. RV6 Standard (Optionen)
02/01 Issue 2.4 Sequence: Installing the Hardware
61
Å Pull the ribbon cable "Illumination" off the dismantled head and make the connection to the il-
lumination board and the new head. Take note of: This cable is different for the modular head
board than for the "Conversion board, small axis".
Å Make the connections of the 3 ribbon cables "Stepped motor" and the round cable "Revolver
head" (motor, tachometer) on the board.
Press the 3 ribbon cables with the 3 Velcro-type connections against the board holder.
Å ,QVWDOOWKHQHZUXEEHUPHWDOYLEUDWLRQGDPSHUVIURPWKHUHWURILWNLWRQWKHQHZKHDG
VHH)LJ!DVGHVFULEHGLQGHWDLOLQWKH&RQYHUVLRQ,QVWUXFWLRQV
DLM1 Col-
lect&Place Head", Item-No. 00191684-03.
CAUTION
If, instead of the rubber-metal vibration dampers, a metal bracket is still installed on the remaining
RV12-DLM1 head, the bracket must be replaced by the dampers (from a 2 enclosed package).
De-install the vacuum generator incl. silencer and proceed as described in the conversion instruc-
tions (see above).
Å Place the vacuum generator incl. silencer on the adapter plate and screw it tight (4 washers
A 4.3 und 4 socket hex head cap screws M4; size 3, in the enclosed package).
The enclosed package contains all fastening parts.
Å If applicable, remove the cover from the vacuum generator (2 socket hex head cap screws
M2.5; size 2).
Å Connect the ribbon cable "Vacuum board" to the conversion board / modular head board.
Secure it to the bottom of the board with the Velcro-type fastener (see: Fig. 2.4.7 -> 2).
For details -> see conversion instructions for the DLM1 head.
Å Fold down all black terminal strips (see: Fig. 2.4.7 -> 5).
2 Retrofitt. Instruct. RV6-DLM1 Head & Nozzle Chang. RV6 Standard (Optionen) SIPLACE S-25 HM
2.4 Sequence: Installing the Hardware 02/01 Issue
62

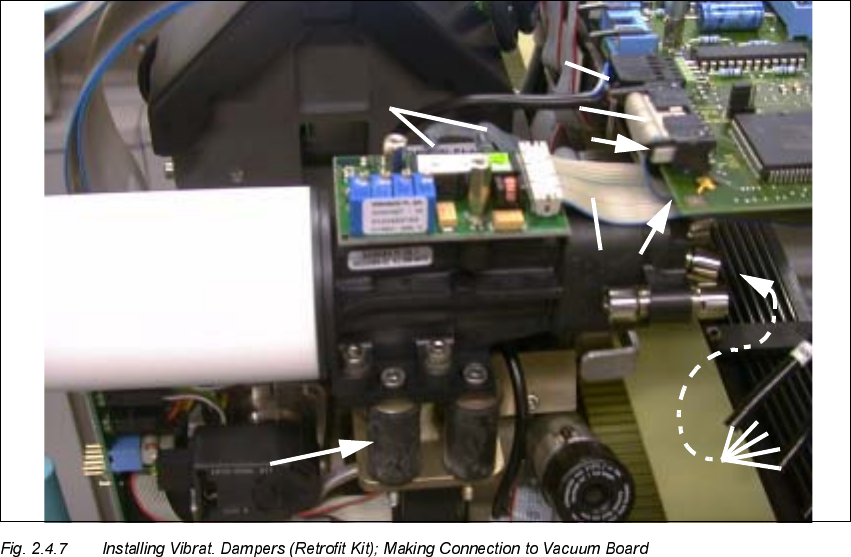

.H\
1. 4 Rubber-metal vibration dampers (enclosed package from retrofit kit)
2. Velcro-type fastener (enclosed package from retrofit kit)
3. Ribbon cable "Vacuum board" (present on the new head)
4. Strain relief bow on the socket connector (removed for "Conversion board, small axis")
5. 2 terminal strips
6. Round cable "Revolver head" (tachometer, motor), present on new head
7. Pneumatic hoses, compressed air feed to the vacuum generator
8. Connection of the silicone hoses
Å Connect the 5 compressed air feeders - in correct order (number is on the hose) - to the vac-
uum generator and the blast unit (see: Fig. 2.4.7 -> 7).
Å Connect the sets of 2 thin silicone hoses to the vacumm board in the correct order (see: Fig.
2.4.7 -> 8).
Å Connect the 2 thick silicone hoses to the vacuum generator in the correct order.
SIPLACE S-25 HM 2 Retrofitt. Instruct. RV6-DLM1 Head & Nozzle Chang. RV6 Standard (Optionen)
02/01 Issue 2.4 Sequence: Installing the Hardware
63
Å Mount the cover on the vacuum generator (2 socket hex head cap screws M2.5;
size 2).
Å Mount the new head cover of the 6-segment revolver head from the retrofit kit.
Take note of:
The difference between the cover of the 6-segment head and 12-segment head is scarcely
visible. The item number of the 6-segment head cover is 00329003-01.
1R]]OH&KDQJHU596WDQGDUGIRU6HJPHQW+HDG
,QIRUPDWLRQDERXWWKH6HTXHQFH
– When installing the RV12 nozzle changer standard for the 12 segment revolver head, obey the
CAUTION text in Section 2.1!
– If the option MTC exists, you have to install the nozzle changer RV6 / RV12 MTC. In this case,
proceed for all steps on the basis of the "Retrofitting Instructions MTC on S-25 HM" (Item no.
see: Section 2.3.6).
– For removing the RV6 (or RV12) nozzle changer, proceed as described below.
