Installation Manual, Windows XP Embedded operating syst em for the machine controller Issue 04/2007 11 of 28 4.2.2 SIPLACE D series machine controller hardware Name SIMATIC Microbox 420 CPU / clock frequency Pentium III …
Installation Manual, Windows XP Embedded operating system for the machine controller Issue 04/2007
10 of 28
4.2 Hardware components of the computer system for the machine
controller
4.2.1 SIPLACE X series and SIPLACE D3 machine controller hardware
Name SMP16-CPU076
CPU / clock frequency Celeron / 650 MHz
RAM 256 MB
Hard disk 40 GB
External DVD drive No
Floppy drive 3.5", 1.44 MB
USB interfaces
and external USB hub
Yes
Network 1 x 10/100Base-T
Table 4-1: Machine controller hardware (previous configuration of SIPLACE X series)
Name SMP16-CPU086
CPU / clock frequency Intel M / 1600 MHz
RAM 512 MB
Hard disk 40 GB
External DVD drive No
USB interfaces
and external USB hub
Yes
Network 1 x 10/100Base-T
Table 4-2: Machine controller hardware (current configuration of SIPLACE X series and SIPLACE D3)
Name SIMATIC Box PC 627
CPU / clock frequency Pentium M / 2 GHz
RAM 1 GB
Hard disk 40 GB
External DVD drive Yes
Serial interfaces 1
USB interfaces
and external USB hub
Yes
Network 2x 100 MBit
Table 4-3: Machine controller hardware (future configuration of SIPLACE X series and SIPLACE D3)
Installation Manual, Windows XP Embedded operating system for the machine controller Issue 04/2007
11 of 28
4.2.2 SIPLACE D series machine controller hardware
Name
SIMATIC Microbox 420
CPU / clock frequency
Pentium III / 933 MHz
RAM
256 MB
Hard disk
40 GB
External DVD drive
Yes
Serial interfaces
1
USB interfaces
and external USB hub
Yes
Network
2x 100 MBit
Table 4-4: Machine controller hardware (SIPLACE D series)
Installation Manual, Windows XP Embedded operating system for the machine controller Issue 04/2007
5 Installation for the SMP16-CPU076 and SMP16-CPU086

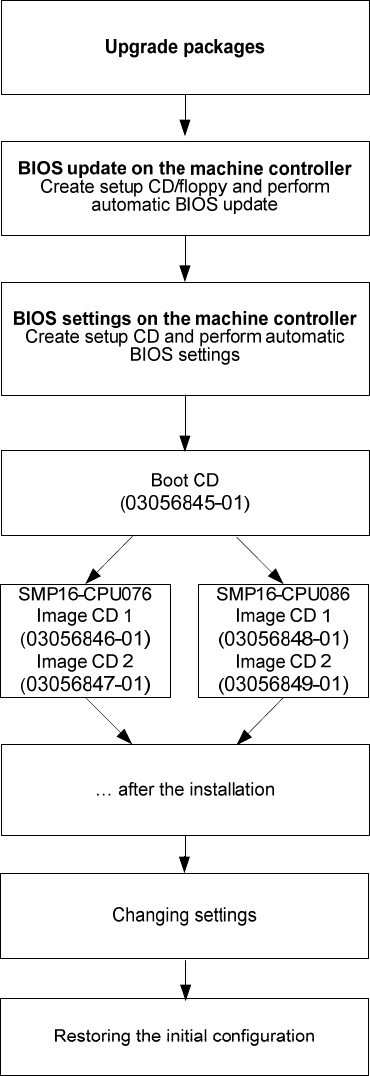

5.1 Overview
CPU 076 with X4 machine: upgrade package (item number:
03029123S03) for upgrade to CPU 086 is required
CPU 076 with X2/X3 machine: upgrade package (item number:
03051831) for memory expansion is required
See the section
5.2.
See the section
5.3.
Installing the operation system Windows XP embedded see the
section
5.4.
See the section
7.
See the section
8.
See the section
9.
