Installation Manual, Windows XP Embedded operating system for the machine controller Issue 04/2007
6.3 Installing the Windows XP Embedded operating system
Note:
Before you start work, ensure that the CD-ROM drive is set as the first boot device in the
BIOS to allow the computer to be booted from DVD.
→ Insert the installation DVD for the Windows XP Embedded operating system (see section
4.1) in the
external DVD drive connected to the MC computer.
→ Switch the machine on to boot the MC computer from DVD or, if the machine is already switched on,
restart the MC computer.
An automatic inspection of the system is carried out and then the screen for selecting the language
appears.
1 German
2 English
→ Select the required language with the cursor keys and confirm your selection with <ENTER>.
The restore options appear.
1 Restore system partition only
2 Restore entire hard disk
3 Cancel
→ Select option 2 "Restore complete hard disk" and confirm your selection with <ENTER>.
→ Confirm the query whether the action should really be carried out by choosing "Yes".
The operating system is installed and the computer is automatically rebooted.
After a short time, the message "Restore completed" is displayed and you are requested to remove the
data media and restart the computer.
→ Remove the installation DVD from the DVD drive and reboot the computer.
22 of 28
Installation Manual, Windows XP Embedded operating system for the machine controller Issue 04/2007
7 …after the installation
→ Wait until the login window appears and then log in as administrator.
After you have logged in, settings are made and installation operations carried out automatically.
The computer is then automatically rebooted.
After the computer has rebooted, you are logged in automatically as "Operator".
After further settings have been made automatically, the following window appears which confirms that
installation of Windows XP Embedded has been completed on the MC computer.
→ Press any key to close the window in background.
→ Reboot the computer.
23 of 28
Installation Manual, Windows XP Embedded operating system for the machine controller Issue 04/2007
8 Changing settings
It is now necessary to check the display settings and change them if necessary.

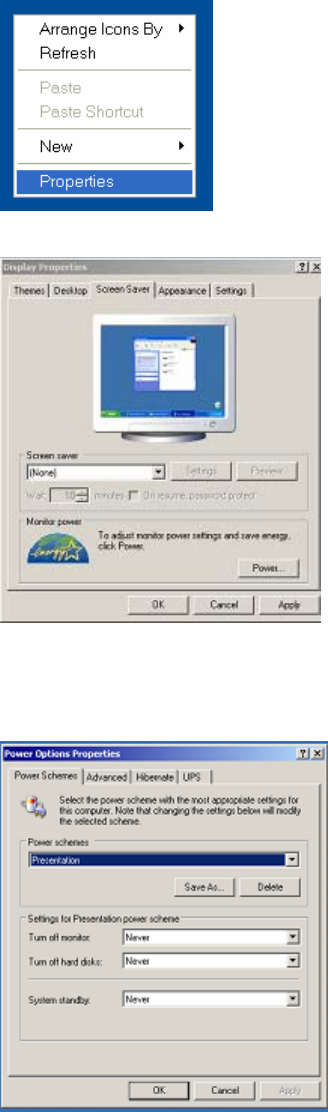

→ Right-click on a free area of the desktop and select Properties from the context menu.
→ Click the Screen Saver tab.
→ Select (None) from the list of screen savers.
→ Confirm the settings by clicking OK.
→ Click the Power… button.
→ Set all the options to Never under the "Settings for Presentation power scheme".
→ Confirm the settings by clicking OK.
24 of 28
