Installation Manual, Windows XP Embedded operating system for the machine controller Issue 04/2007
5.3 Automatic BIOS settings on the machine controller
A setup CD must first be created to automatically make the BIOS settings on the machine controller. To do
this, you require a computer running Windows XP that is fitted with a CD and CD-RW drive.
The image files necessary for creating the CD (see table below) are in the "BIOS-Images" folder of the CD
for version 604.01 of the software.
Machine controller computer type BIOS settings ISO image
SMP16-CPU086 CPU086_SR_MC_BIOS_Settings.iso
SMP16-CPU076 CPU076_MC_BIOS_Settings.iso
Table 5-1: Files required for creating the data media for making the BIOS settings on the MC
5.3.1 Creating a setup CD
→ Insert an empty writable CD in the drive on any computer.
→ Insert the CD for version 604.01 of the software in the drive.
→ In the Windows Explorer, open the "BIOS-Images" folder on the CD.
→ Open the image file for the relevant computer type (see table above) using the installed CD writing
program and follow the instructions on screen.
→ Once the CD has been written, remove the CDs from the drives.
5.3.2 Making the BIOS settings on the machine controller
Note:
Before you start work, ensure that the CD-ROM drive is set as the first boot device in the
BIOS to allow the computer to be booted from CD.
→ Insert the CD you have created in the drive on the machine controller and boot from the CD by
switching the machine on.
→ Follow the instructions regarding the BIOS settings that appear on screen.
→ Remove the setup CD from the CD drive.
→ Press the key combination <Ctrl><Alt><Del> to perform a warm start of the MC computer.
14 of 28
Installation Manual, Windows XP Embedded operating system for the machine controller Issue 04/2007
5.4 Installing the Windows XP Embedded operating system
Note:
Before you start work, ensure that the CD-ROM drive is set as the first boot device in the
BIOS to allow the computer to be booted from CD.
5.4.1 Boot CD
→ Insert the boot CD (item number: 03056845-01, see section 4.1) in the CD drive.
→ Switch the machine on to boot the MC computer from CD or, if the machine is already switched on,
restart the MC computer.
An automatic inspection of the system is carried out and the program Ghost32 is started automatically.

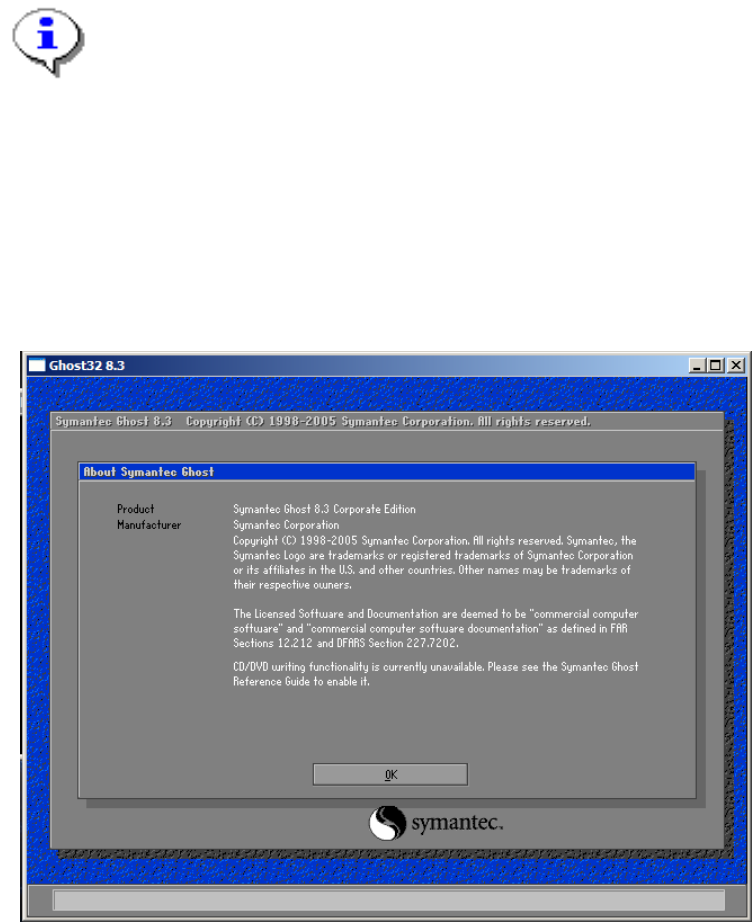

The following dialog is displayed (after approx. 15 minutes).
→ Click on „OK“.
→ Remove the boot CD from the CD drive.
15 of 28
Installation Manual, Windows XP Embedded operating system for the machine controller Issue 04/2007
5.4.2 Image CDs
Caution:
Use the image CDs for the relevant computer type as given in the table below.
MC computer type Names of the CDs
SMP16-CPU076 03056846-01 Software Boot CD1-eXP 2.01 CPU 076
03056847-01 Software Boot CD2-eXP 2.01 CPU 076
SMP16-CPU086 03056848-01 Software Boot CD1-eXP 2.01 CPU 086
03056849-01 Software Boot CD2-eXP 2.01 CPU 086
→ Insert the image CD1 for the relevant computer type in the CD drive.

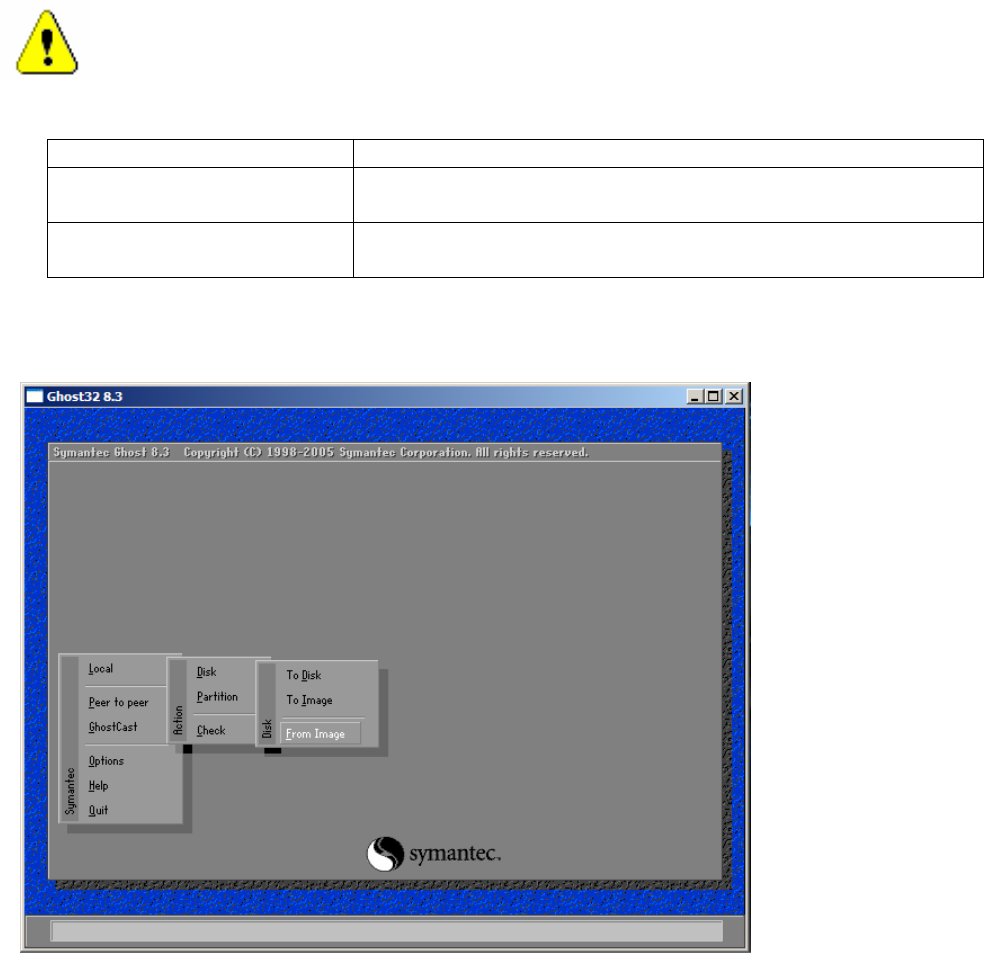

The following dialog is displayed.
→ Select Local -> Disk -> From Image.
16 of 28
