SI0804004E-000 = YS12, YG12: Procedure for adjustment after installation of the machine
39/60
Double click on the graph to
display the details.
6.2. Check the “VgChart”

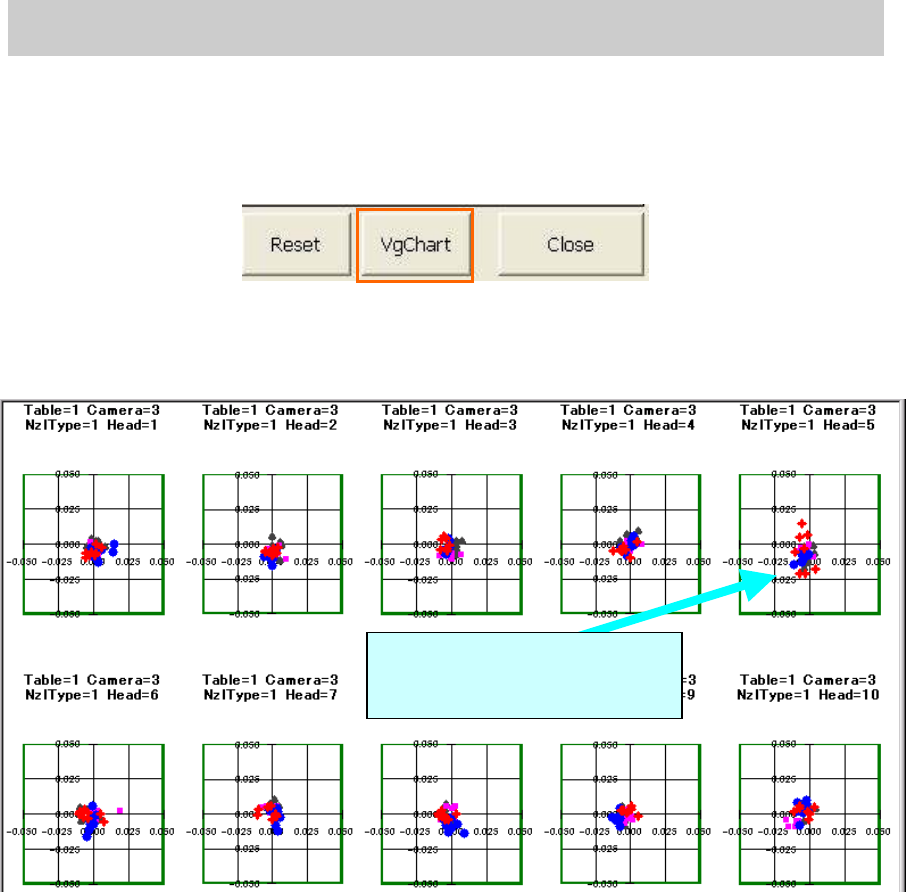

1. Click on the [VgChart] button.
The chart screen is automatically created based on the measured data by clicking on the
[VgChart] button.
Figure 53
2. Check the Chart screen
Check the Chart screen to determine which head is the causal factor that the “AMF Index 1”
does not meet the specified value.
Figure 54
Analyze the chart and perform further adjustment if needed.
Service Engineer
Service Information
SI0804004E-000 = YS12, YG12: Procedure for adjustment after installation of the machine
40/60
6.3 How to analyze the “VgChart”
Please refer to the following for the typical chart of the adjustment result and how to take
measures.
A. If the XY offset shift is found in the data of mounting result
What is “XY offset shift”?
When the deviation is found in the positions where all the components are mounted, in the same
direction and in all the angles as can be seen in Figure 55
.
If the analysis result by the Vg Chart indicates that there is “XY offset shift”, perform feedback for
the compensation value of the measured result.
Figure 55

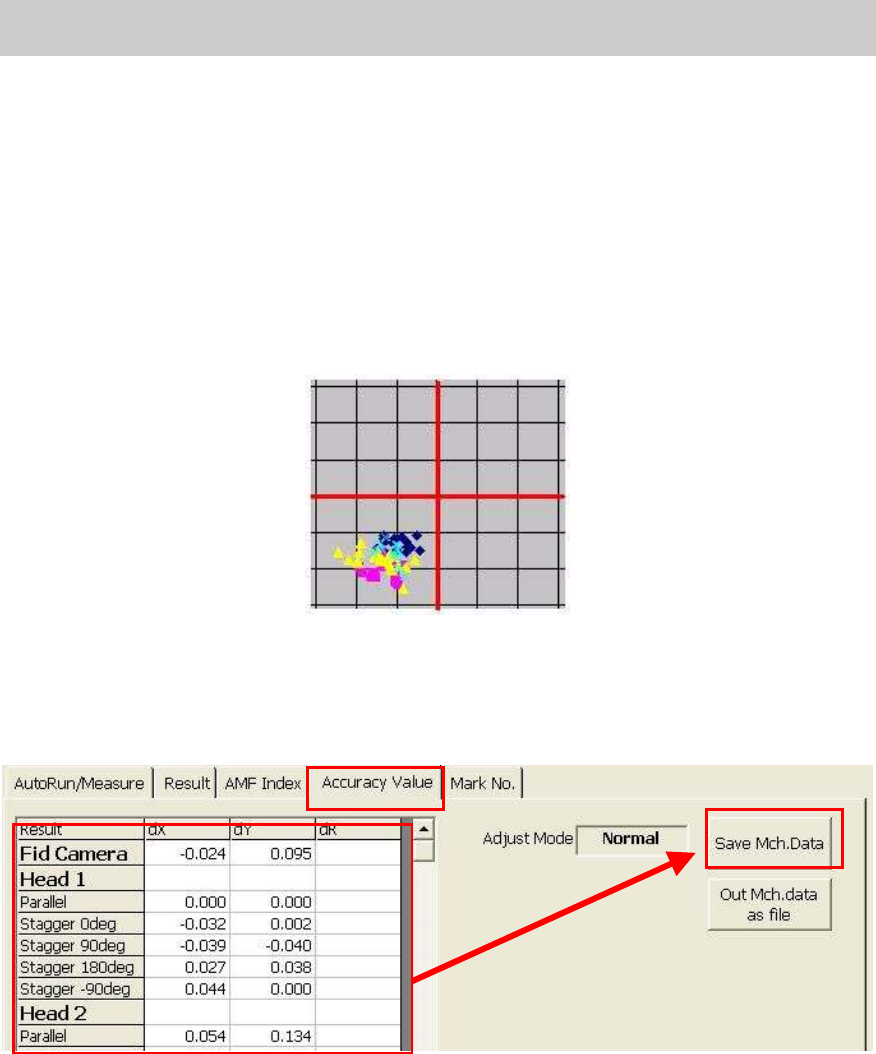

1. Check and save the corrected value
1) Select the “Accuracy Value” tab.
Click on the “Accuracy value” tab to display the screen shown in Figure 56.
Figure 56
2) Check the values to be corrected.
Check if there is no problem with the values to be corrected, then click on the [Save
Mch.Data] button.
2. After saving the corrected value in the machine data, perform ACP accuracy check again.
If the measured result meets the specified value:
- Bring back the machine data and the data of the mounting result.
- If the machine is equipped with the multi camera Move on to “0.7. Accuracy adjustment
of the multi camera (Option).”
If the machine is not equipped with the multi camera Move on to “8. Items to be adjusted
relating to the mounting accuracy of the machine”.
Service Engineer
Service Information
SI0804004E-000 = YS12, YG12: Procedure for adjustment after installation of the machine
41/60
If the measured result does not meet the specified value:
The “XY offset shift” is supposed to be corrected by performing feedback.
If the result does not meet the specified value, please investigate the cause of the problem
and perform the relevant basic adjustment again.
Please refer to “C. When the variation and the abrupt shift are found in the mounting
result.”

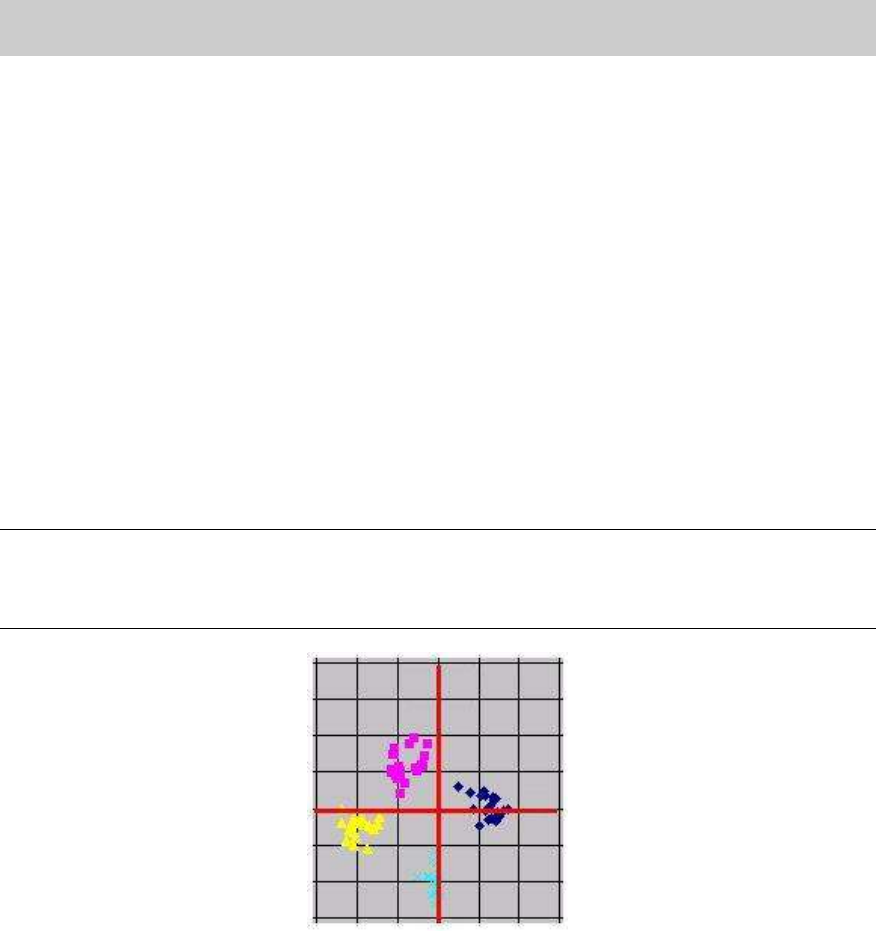

B. If the mounting result data spreads in the X and Y directions
The mounting result data spreads in the X and Y directions in different way depends on the
mounting angle as shown in Figure 57
.
The value of “Index 2” varies depends on the pattern of the mounting result data.
This symptom indicates that some adjustment data may have changed from the factory setting.
Instead of performing feedback (saving the machine data) of the ACP correction value, please
perform readjustment of the following items (check the variation of the data), and then perform
ACP accuracy check again.
Note:
Even when the value of “Index 2” is 1.000 or above, the mounting result data may spread in the X
and Y directions. In this case, please perform feedback of the correction data instead of
readjusting the basic data.
Figure 57
1. Items to be adjusted of the basic data
Please perform adjustment for the following items:
Scale adjustment of the fiducial camera
Scale adjustment of the scan camera
Positioning of the scan camera
Adjustment of the Head Offset XY
If the machine is equipped with the multi camera:
When performing the adjustment of the head offset of the scan camera, the basic data
adjustment of the multi camera needs to be performed. Please perform “Camera scale
adjustment” and “Positioning” of the multi camera after completing the above
adjustments.
