Service Engineer
Service Information
SI0804004E-000 = YS12, YG12: Procedure for adjustment after installation of the machine
55/60
8.3. Positioning of the Scan Camera (Main camera)
Click on the [Scan Camera] button on the main screen of the CalibSm.
Select “Camera Position” from the “Main Camera” item on the “Scan Camera” screen.

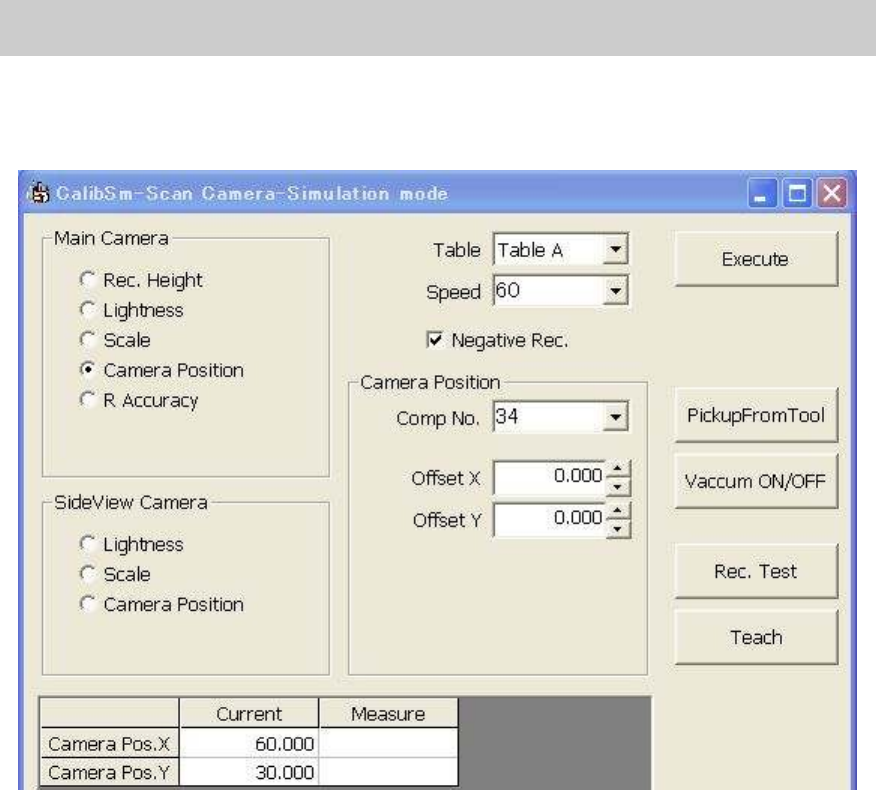

Figure 78
Please follow the same procedure as the scale adjustment of the scan camera.
There should not be much difference between the measured value and the current value.
8.4. How to adjust “Head Offset XY”
The adjustment of the Head Offset XY is performed with the main camera (Scan camera).
(It is also possible to perform adjustment with the multi camera by logging in as “Engineer”.)
[Tools required for adjustment]
- Nozzle to be used: Type 303A (314A) nozzle (For SOP)
- Component to be used: Glass QFP 16pin (with white sticker) (KHY-M880A-00)
- Part No.: No.34 QFP16_P0.8_WHITE (Board data: MCH_SETUP)
[Procedure for adjustment]
Click on the [Head Offset] button on the main screen of the CalibSm.
Select “Head Offset XY” from the “Adjust Item”.
Make the nozzle vacuum the Glass QFP 16pin (with white sticker on the back) to perform
adjustment.
The number of the head to be adjusted at the same time is limited depends how many Glass
QFPs are prepared.
Please tick only the boxes with the names of the head to be adjusted before adjustment. Untick the
boxes after adjustment, and then tick the rest of the boxes to perform the next round of
adjustment.
Service Engineer
Service Information
SI0804004E-000 = YS12, YG12: Procedure for adjustment after installation of the machine
56/60
Figure 79
Make the nozzle vacuum the Glass QFP and click on the [Execute] button to start adjustment and
display the compensation values in the “Result X, Y” field. If the values exceed the specified value,
they are indicated in the red letters.
Items to be adjusted Specified value
Head Offset XY Designed value +- 0.06mm
Table 27
* If the head offset does not meet the specified value, it affects the vacuuming and mounting
accuracy. The possible causes are distortion of the shaft, the improper installation of the nozzle,
and so on. Please take the relevant measures.
8.5. How to adjust “Head Offset Z”
The “Vacuum level” needs to be adjusted before performing adjustment for “Head Offset Z”.
Click on the [Head Offset] button on the main screen of the CalibSm and select “Head Offset Z”
from the “Adjust Item” on the “Head Offset” screen.
Perform measurement on the top surface of the aluminum frame of the glass board.
- Nozzle to be used: Type 302A (313A)… (For Chip components)
8.6. Scale adjustment of the multi camera (Option)
Click on the [Multi Camera] button on the main screen of the CalibSm.
[For reference]
Camera No. Camera Type
Mounting
position
Maximum
angle of view
XY (mm)
Maximum
angle of view
Z (mm)
Mounting
angle
Digital camera 5 Digital Multi C
Front/
Either front or rear
24 7 0 degree
Digital camera 6 Digital Multi C Rear 24 7 180 degrees
Table 28
* When the machine is equipped with two multi cameras, the camera mounted on the front side is
Digital camera 5, and the one mounted on the rear side is Digital camera 6.
Service Engineer
Service Information
SI0804004E-000 = YS12, YG12: Procedure for adjustment after installation of the machine
57/60
When the machine is equipped with only one multi camera, whichever side the camera is mounted,
it is Digital camera 5.
Make the nozzle vacuum the Glass QFP and perform adjustment.
- Nozzle to be used: Type 304A (315A) nozzle (For QFP)
- Component to be used: Glass QFP 68pin (KW8-M880A-10* GLASS QFP 68P)
- Part No.:No.11 QFP68_P0.65 （Board data: MCH_SETUP）
Items to be adjusted Specified value
Angle 0.000 +- 0.100
Scale Ｘ 24.000 +- 0.100
Scale Ｙ 24.000 +- 0.100
Offset 0.000 +- 0.050
Table 29
8.7. Positioning of the Multi Camera
Click on the [Multi Camera] button on the main screen of the CalibSm.
Select “Camera Pos.” from the “Adjust Item” on the “Multi Camera” screen.
- Nozzle to be used: Type 304A (315A) nozzle (For QFP)
- Component to be used: Glass QFP 68pin (KW8-M880A-10* GLASS QFP 68P)
- Part No.: No.11 QFP68_P0.65 （Board data: MCH_SETUP）
8.8. Check the machine reference
Click on the [Axis] button on the main screen of the CalibSm.
Click on the [Originize] button on the “Axis” screen to perform ”Return to origin”.
If the values do not meet the specification, please investigate the cause of the problem and take
relevant measures.
Axis name Specification (%)
XY 50 +- 5
Z 10 +- 5
R 45 +- 2
W 50 +- 5
PU 50 +- 5
SC 62 +- 5
Table 30
If the values do not fall within specification, click on the [Originize] button again in order to check if
the reference values are stable.
Repeatability of the reference: Within +-2%
