Service Engineer
Service Information
SI0804004E-000 = YS12, YG12: Procedure for adjustment after installation of the machine
51/60
7.4. Check the result of the measurement
7.4.1. Check the value of the “Index (Total)”

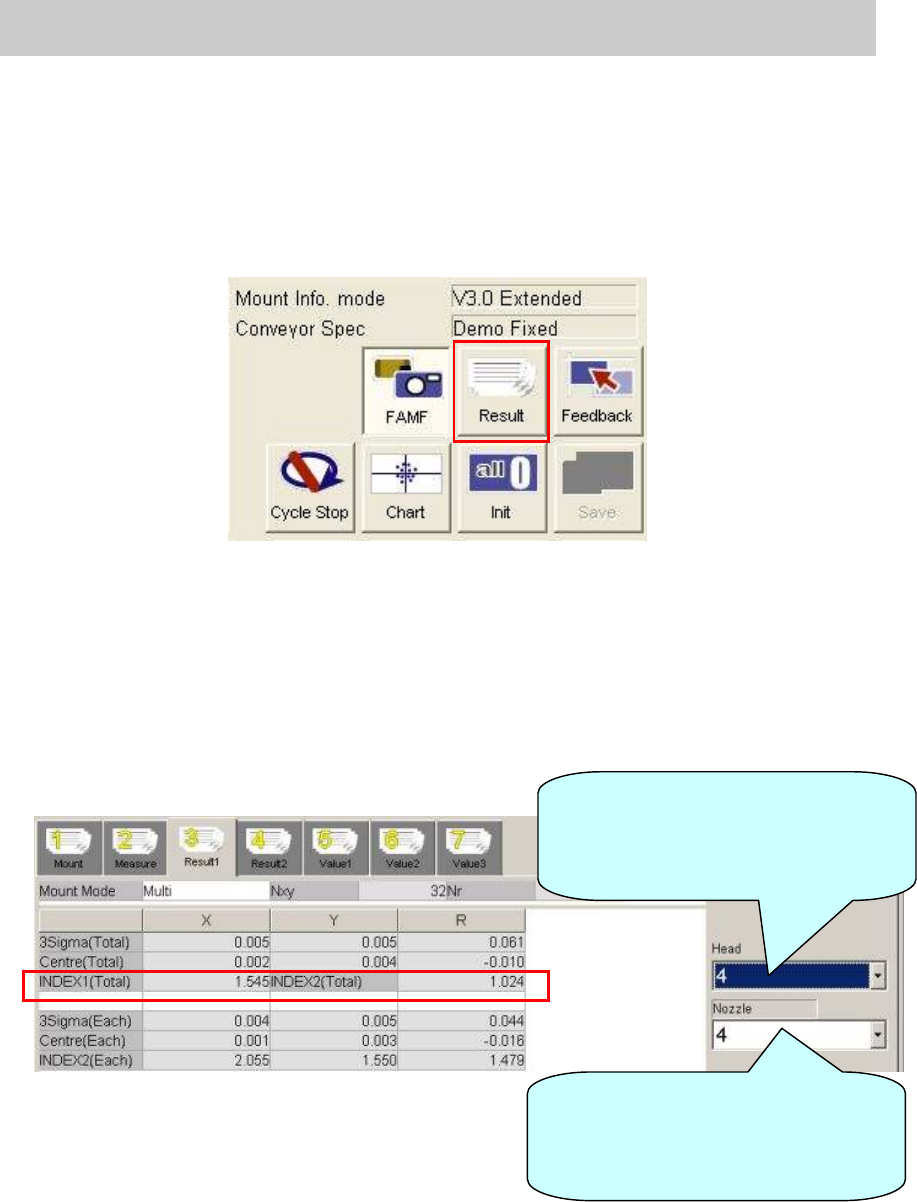

1. Click on the [Result] button after completing measurement.
The value of the “Index” can be checked on the “Result 1” tab.
Figure 72
2. Display “Result 1” screen to check the values in the “INDEX 1 (Total)” and “INDEX2 (Total)”
fields.
Select the nozzle type used for mounting from the dropdown list at the lower right.
When the 304A nozzle is used: 4
When the 315A nozzle is used: 5
Please fill in the value as “The data before feedback” on the check sheet.
Figure 73
Select the relevant head from the
dropdown list to check the value of
the “INDEX 2” for each head on the
“Result 1” screen.
Select the relevant nozzle from the
dropdown list to check the total
values of the “INDEX 1” and
“INDEX 2” on the “Result 1” screen.
Service Engineer
Service Information
SI0804004E-000 = YS12, YG12: Procedure for adjustment after installation of the machine
52/60

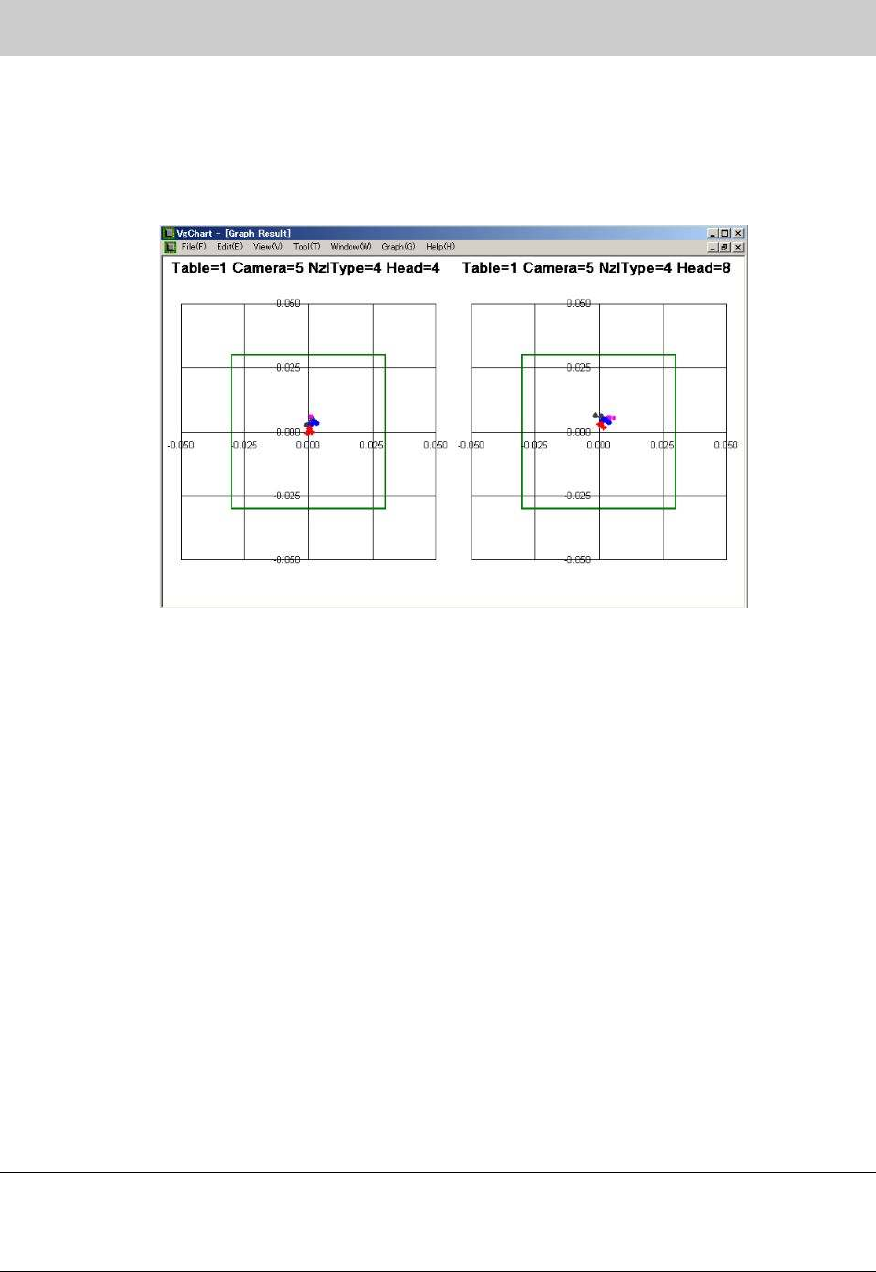

3. Click on the [Chart] button.
Click on the [Chart] button to display the “VgChart” screen for checking the accuracy.
Please check the result on the “VgChart” screen regardless of the values in the “INDEX 1
(Total)” and “INDEX2 (Total)”
Figure 74
Please refer to “6. If “AMF index” falls below 1.0.when performing accuracy check by ACP” for
how to interpret the graphs.
7.4.2. When the value of INDEX (Total) is 1.000 or above
1. Check the INDEX (Total)
If the values in the “INDEX 1 (Total)” and “INDEX2 (Total)” on the “Result 1” tab are 1.000 or
above, the adjustment does not need to be performed.
Please fill in the value as “The data after feedback” on the check sheet.
2. Initialize the data.
After recording the values of “INDEX” on the check sheet, click on the [Init] button to initialize
the measurement data.
3. Save “RESULT.DAT”.
Change the name of the “RESULT.DAT” file in the “D:¥Machine¥Result” on the Explorer.
Please add the serial number of the machine, date the adjustment is performed, and the head
number to the file name.
Create a folder using the date of adjustment as a name in “D:¥Machine¥Result” and save the
data in the folder.
Note:
Even though the value of INDEX is 1.000 or above, if any deviation is found on the chart, please
perform feedback of the correction value.
Please refer to “7.4.3. When the value of INDEX (Total) falls below 1.000” for the method.
Service Engineer
Service Information
SI0804004E-000 = YS12, YG12: Procedure for adjustment after installation of the machine
53/60
7.4.3. When the value of INDEX (Total) falls below 1.000
1. Check the values of “INDEX (Total)”
Display the “Result 1” and check the values in the “INDEX 1 (Total)” and “INDEX2 (Total)”. If
the values fall below 1.000, the fields turn red and the lowest Index value of each head is
indicated by boldface. Please check the recognition state and the cause of the problem on the
“VgChart” screen and perform adjustment.

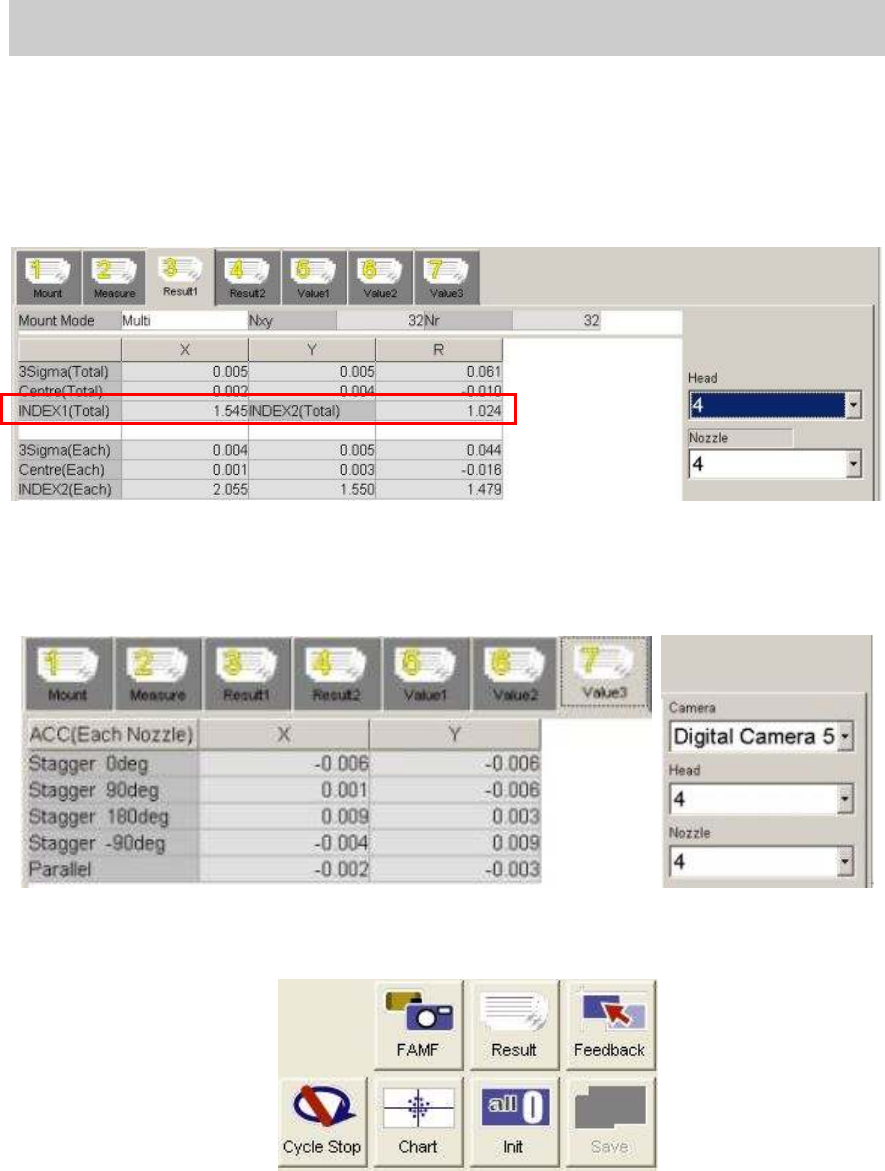

Figure 75
2. Click on the [Feedback] button to check the compensation value.
If you click on the [Feedback] value, the compensation values are automatically calculated.
Please display the “Value 1”, the “Value 2”and the “Value 3” tabs to check if any abnormal
values are found in the compensation value fields.
3. Click on the [Save] button.
After checking the compensation values, click on the [Save] button to save the values in the
system data
. When the data is saved, the “Result” data is initialized.
Figure 76
4. Check the accuracy by performing mounting with FAMF.
When performing feedback of the compensation value and readjustment, please delete the
“RESULT.DAT” file before start mounting. Otherwise, the data is added to the previous data.
5. Check the accuracy.
Please refer to “7.4.2. When the value of INDEX (Total) is 1.000 or above” for the procedure
after checking the accuracy (when the value of the INDEX is 1.000 or above.).
Please fill in the value as “The data after feedback” in the relevant column of the check
sheet.
