2 Assembly instructions Special design Cognex Scanner SIPLACE HS-60 / HF-series / X-series / D-series / S / F
10/2008 Edition
30
2.4 Scope of delivery
General: 2
– Dataman I/O Box from Cognex (item no.: 00176118-xx)
– Adapter cable for Dataman 100 I/O Box (item no.: 00176120-xx)
– Assembly instructions for Cognex Scanner (item no.: 00195610-xx)
2
For one scanner: 2
– 1 Cognex scanner Dataman 100 (item no.: 00176117-xx)
– 1 Interface cable for Dataman 100 (item no.: 03062979-xx)
– 1 Holding bracket for scanner – upper side – premounted
or
1 holding bracket for scanner – lower side – premounted
– 2 Hexagon socket screws M3 x 5 mm
– 2 Washers ø 7,0 mm
2
For two scanners: 2
– 2 Cognex scanner Dataman 100 (item no.: 00176117-xx)
– 2 Interface cables for Dataman 100 (item no.: 03062979-xx)
– 1 (2) Holding bracket(s) for scanner – upper side – premounted
or
1 (2) holding bracket for scanner – lower side – premounted
– 4 Hexagon socket screws M3 x 5 mm
– 4 Washers ø 7,0 mm
2
For four scanners: 2
– 4 Cognex scanner Dataman 100 (item no.: 00176117-xx)
– 4 Interface cables for Dataman 100 (item no.: 03062979-xx)
– 2 Holding bracket(s) for scanner – upper side – premounted
or
2 holding bracket for scanner – lower side – premounted
– 8 Hexagon socket screws M3 x 5 mm
– 8 Washers ø 7,0 mm
2 Assembly instructions Special design Cognex Scanner SIPLACE HS-60 / HF-series / X-series / D-series / S / F
10/2008 Edition
31
2
2.5 Necessary tools
– Set of hexagon socket spanners
– Set of screw drivers
– Cable ties
– Cable clips
– Side cutter
– Measuring tape
– Lintfree cloths
– Ethylalcohol for cleaning
2
2
2

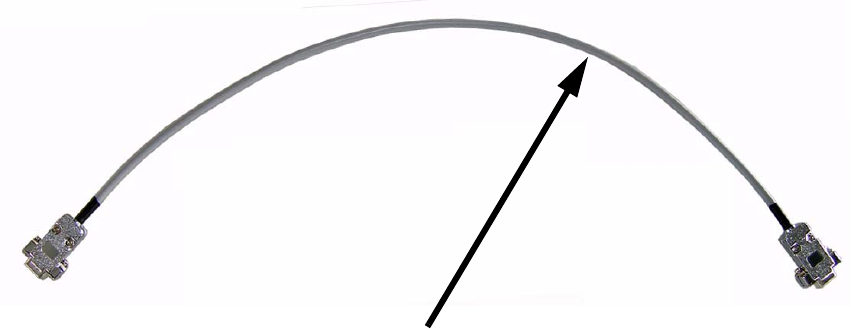

Interface cable for Dataman 100
2 Assembly instructions Special design Cognex Scanner SIPLACE HS-60 / HF-series / X-series / D-series / S / F
10/2008 Edition
32
2.6 Safety instructions
WARNING
The safety instructions from the "Operational safety" chapter of the user manual and servicing in-
structions take precedence over these instructions. 2
The SIPLACE placement machines are supplied with main power voltage.
Consequently parts of these systems carry dangerous voltages! This voltage is present at certain
modules inside the machine base, even when the machine is switched off at the main power
switch.
Incorrect handling of the placement machine or touching live parts of the machine can result in
death or severe injury, and considerable damage to equipment.
BEFORE starting any work, shut down the operating system correctly, then switch the machine
OFF at the main power switch and disconnect from the main power supply. In addition, the com-
pressed air supply must be switched off at the compressed air unit's main valve in the machine
base and vented by actuating the needle valve on the compressed air unit.
There is DANGER for heart pacemaker wearers in the vicinity of the linear motors, as described
in detail in the "Special safety instructions for working in the vicinity of strong magnetic fields"
section of the user manual and service manual.
Always follow the accident prevention regulations, DIN or other standards and special safety
rules applicable in your country.
Pay attention to the information concerning residual voltages in the Operational Safety chapter.
Follow the ESD regulations as described in the operational safety section of the operating
instructions.
During the retrofit, always secure the machine to prevent access by other people and to prevent
it being switched on again as described in the "Lock out and tag out procedure" in the user man-
ual.
Working with the SITEST program further increases the risk of accident.
The SITEST program must only be used by authorized and trained personnel.
2
2
2.6.1 Definitions
2
Note 2
