: In the view “Light and Camera Settings” you can make the general necessary settings like trig-
ger delay, exposure time and intensity.
: Via the field “Trigger Delay” the delay time of the trigger of the machine can be set up. That
means that the start of the record will be delayed by this time.
: The “Trigger-Type” has to be set to “Burst (external)”.
: The “Intervall” is the time between the single pictures.
: The “Maximum exposure” is the maximum exposure time. It always should be higher than
1/2000s, to make sure that the pictures are sharp.
: The "Timeout" time is the maximum time which the scanner searches for a barcode.
2
2
2
2
2
2
2
2
2
2 Assembly instructions Special design Cognex Scanner SIPLACE HS-60 / HF-series / X-series / D-series / S / F
10/2008 Edition
48

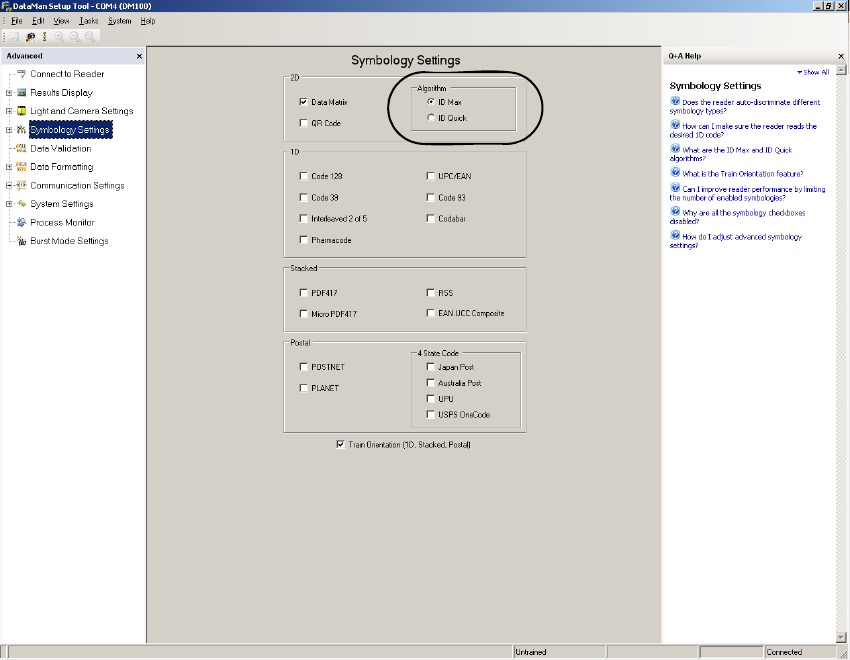

: In the view “Symbology Settings” the algorithm can be changed between “ID Mac” and “ID
Quick”.
2
2
2
2
2
2
2
2
2
2
2
2
2
2 Assembly instructions Special design Cognex Scanner SIPLACE HS-60 / HF-series / X-series / D-series / S / F
10/2008 Edition
49
If you tick on "Reserve Process Monitor images for Burst mode" you have 6 more pictures for
scanning available. 2
If you tick on "Decode and Show all images" all pictures are shown on your screen (reads and no
reads). If you tick off this function, the scanner stops reading after the first read barcode. 2
2
The function should be disabled after all settings and tests. 2
2
2
With both sliding controllers you can reduce the resolution of the scanner. If you have reduced the
resolution the number of pictures, which can be made, increases. 2
2
The “Burst length” is the maximum amount of pictures, which are taken. 2
