2 Assembly instructions Special design Cognex Scanner SIPL ACE HS-60 / HF-serie s / X-series / D-series / S / F 10/2008 Edition 41 : Connect the end of the adapter cable coming fr om the Dat aman I/O-Box with the relevan…
2 Assembly instructions Special design Cognex Scanner SIPLACE HS-60 / HF-series / X-series / D-series / S / F
10/2008 Edition
40
2

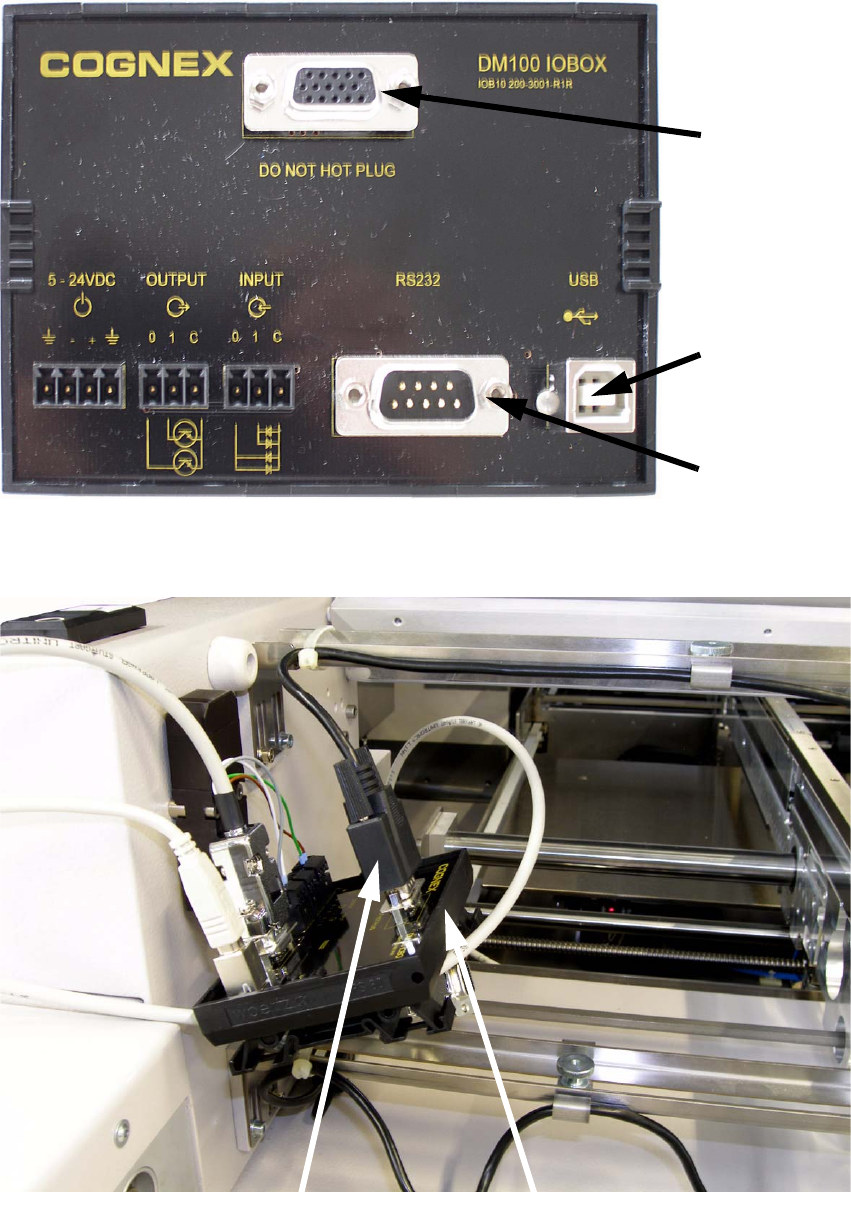

: Take the Dataman I/O-Box and connect the scanner to it.
2
Scanner
connection
Adapter cable
connection
USB
connection
Cable from scanner
Dataman I/O Box
2 Assembly instructions Special design Cognex Scanner SIPLACE HS-60 / HF-series / X-series / D-series / S / F
10/2008 Edition
41
: Connect the end of the adapter cable coming from the Dataman I/O-Box with the relevant con-
nection on the barcode manifold.
2
: Connect the USB cable to the Dataman I/O-Box.
2
2
2
If the scanner is operated by the I/O-Box and connected with the software, an error message
caused by a runtime error of the RS 232 interface will appear on the station computer.
Disconnect the scanner from the computer after completion of the settings. 2
2
: Switch on the machine.
: Connect the second end of the USB cable with a computer on which the program for the scan-
ner software is installed. The program “DataMan 3.x Software” can be installed from the CD or
downloaded at http://www.cognex.com. Please follow the instructions.
2
2
USB cable
2 Assembly instructions Special design Cognex Scanner SIPLACE HS-60 / HF-series / X-series / D-series / S / F
10/2008 Edition
42
: Open the program. The following menu will appear:
2
2
: Click to “ScanPorts” and choose by the pulldown menu the COM connection where DM100
stands behind it and then click “Connect”.
The software connects to the scanner.
