2 Assembly instructions Special design Cognex Scanner SIPLACE HS-60 / HF-series / X-series / D-series / S / F
10/2008 Edition
37
: Connect the interface cable with the barcode manifold X1 to X4.
: Switch the switch S1 number 1 to 4 (depending on the position of the connected scanners) to
OFF.
2
The unconnected ports has to stay ON. 2
2
2
2
2
2
2
2
2
2
2
Interface cable
Switch S1
2 Assembly instructions Special design Cognex Scanner SIPLACE HS-60 / HF-series / X-series / D-series / S / F
10/2008 Edition
38

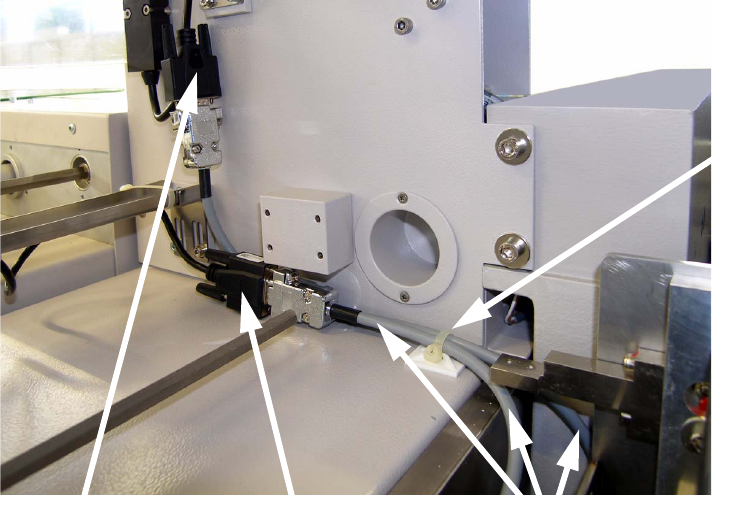

: Fix the interface cable with cable clip and cable tie.
2
2
2
Cognex scanner
upper cable
Cognex scanner
lower cable
Cable clip
and
cable tie
Interface cables for
Dataman 100
