2 Assembly instructions Special design Cognex Scanner SIPLACE HS-60 / HF-series / X-series / D-series / S / F
10/2008 Edition
43
: By clicking the "Toggle View Mode” you can see the tree structure.
2
2
: Set the follwing values in the “Communication Settings” view.
If more than one scanner is connected, the tick has to be set at “Enables Multi-Port (RS 232 –
Sharing).
2
2
2
2
2
Toggle View
2 Assembly instructions Special design Cognex Scanner SIPLACE HS-60 / HF-series / X-series / D-series / S / F
10/2008 Edition
44

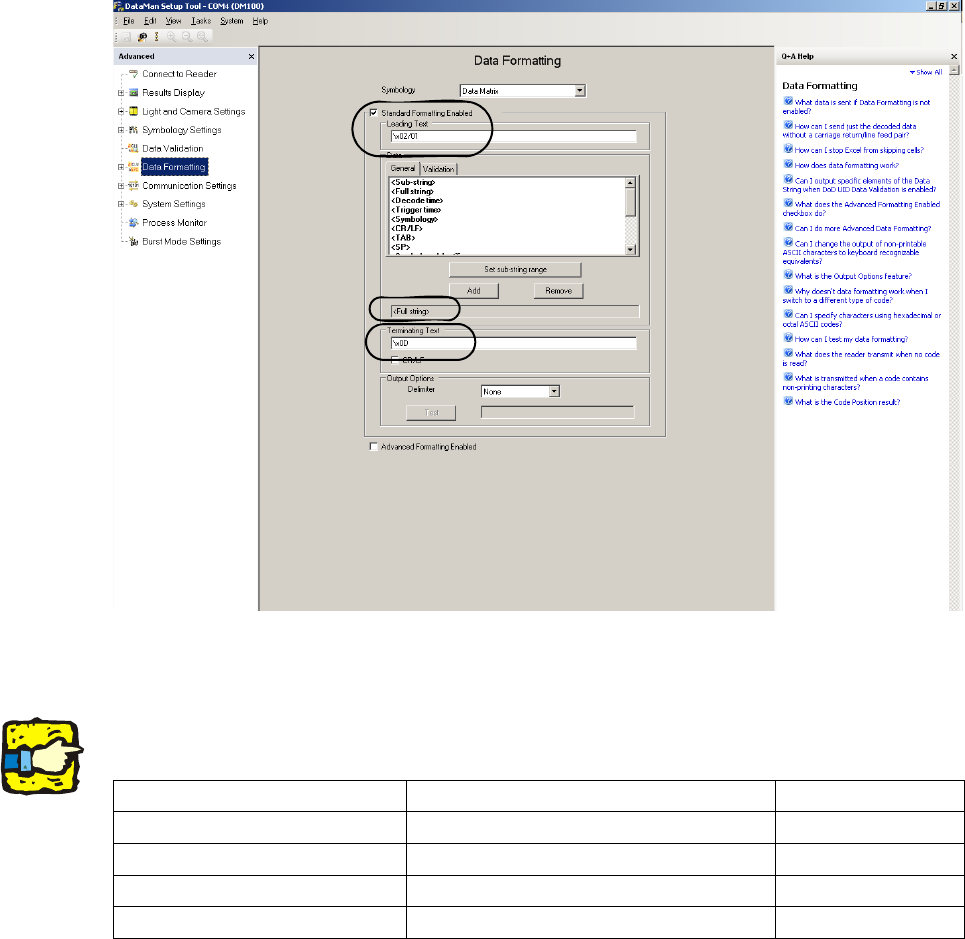

: Change to the “Data Formatting” view and make the following settings:
2
2
: Under “Leading Text” has to be put in the following command: “\x02/0A”.
2
The “A” stands for the installation position of the scanner. Depending on the installation position
the A has to be displaced by “1”, “2”, “3” or “4”. 2
2
2
2
2
2
2
Scanner position Figure for scanner position Command
Single conveyor upper 1 \x02/01
Single conveyor lower 2 \x02/02
Double conveyor upper 3 \x02/03
Double conveyor lower 4 \x02/04
2 Assembly instructions Special design Cognex Scanner SIPLACE HS-60 / HF-series / X-series / D-series / S / F
10/2008 Edition
45

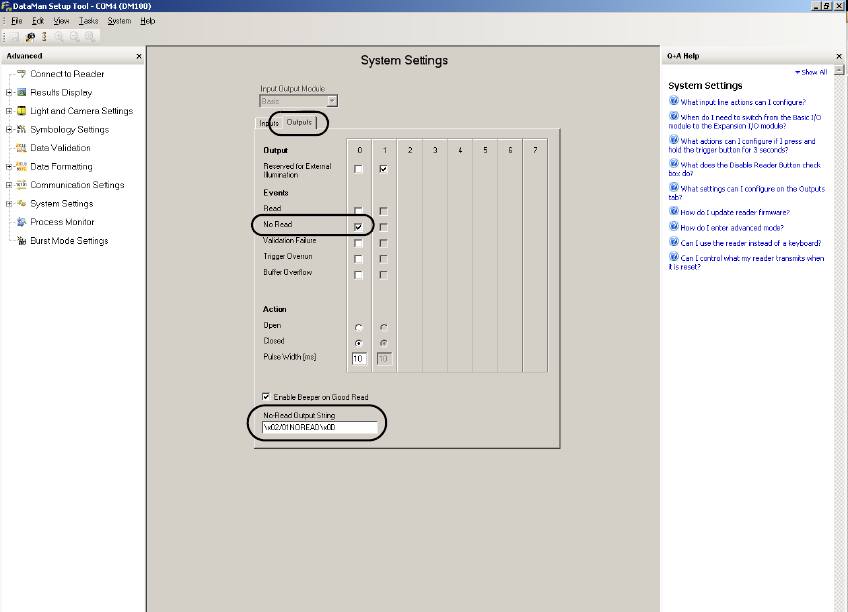

: Change to the view "System-Settings" => "Output" and activate the No-Read function:
Enter the following at "No-Read Output String":
"\x02/0ANOREAD\x0D".
The first "A" stands as described in the former table for the installation position of the scanner.
2
2
After these settings the scanner is able to send the data in the correct format to the machine. 2
