2 Assembly instructions Special design Cognex Scanner SIPL ACE HS-60 / HF-serie s / X-series / D-series / S / F 10/2008 Edition 35 : Fix the cable of the scanner with a cable tie to the mounting rail at the left machine …
2 Assembly instructions Special design Cognex Scanner SIPLACE HS-60 / HF-series / X-series / D-series / S / F
10/2008 Edition
34
: Mount the bracket with each 2 cable guides, 2 washers and 2 knurled knuts to the rail.
2
2

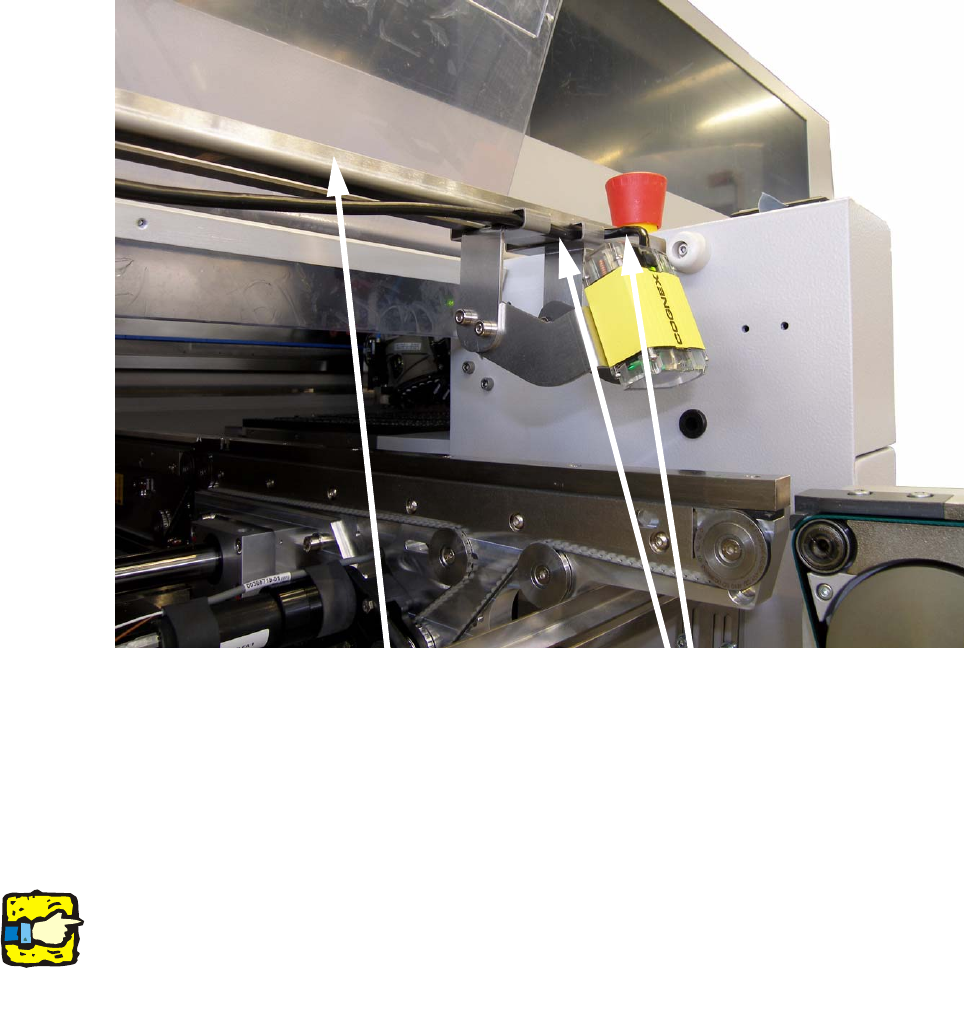

: Run the cable of the scanner as shown in the picture below.
Fix the cable with another cable guide.
: Connect the cable of the scanner with the interface cable and screw them together.
2
If the scanner is connected directly (without interface cable) to the barcode manifold, it can
be damaged. 2
2
2
2
2
2
2
Mounting rail
Cable guide
2 Assembly instructions Special design Cognex Scanner SIPLACE HS-60 / HF-series / X-series / D-series / S / F
10/2008 Edition
35

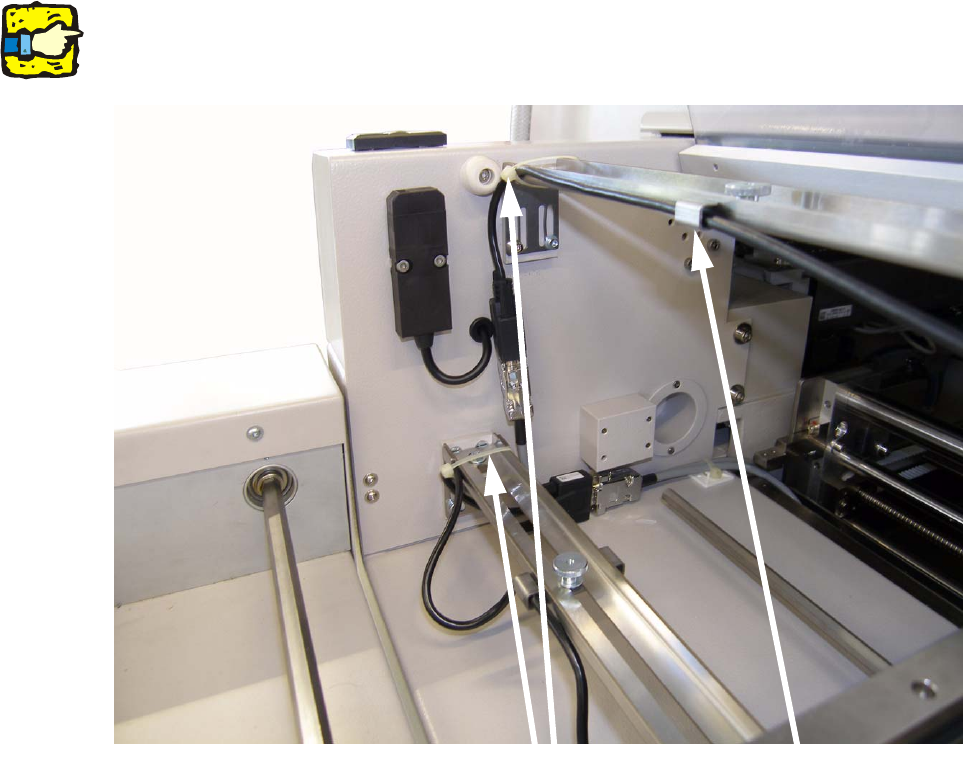

: Fix the cable of the scanner with a cable tie to the mounting rail at the left machine side.
2
Make sure that the scanner can be moved over the total width. 2
2
2
2
2
2
2
2
2
2
2
2
2
Cable ties
Cable guide

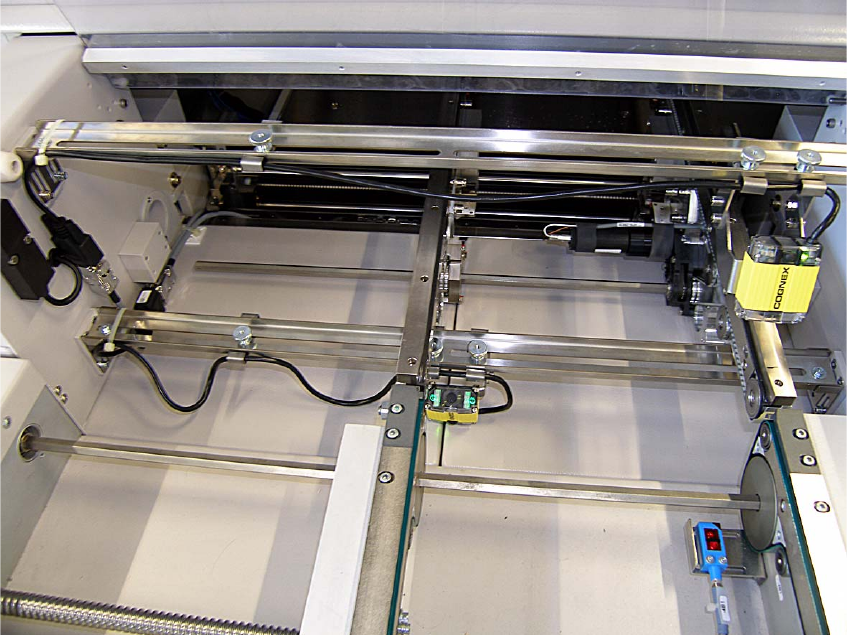

2 Assembly instructions Special design Cognex Scanner SIPLACE HS-60 / HF-series / X-series / D-series / S / F
10/2008 Edition
36
: Repeat this step for all scanners.
