Flexseam Dispensing System 12 Part 1127900_01 E 2019 Nordson Corporation Safety Labels and Tags Figure 1 illustrates the location of the product safety labels and tags affixed to the equipment. Table 2 provides an illust…
Flexseam Dispensing System
11
Part 1127900_01
E 2019 Nordson Corporation
Other Safety Precautions
S Do not use an open flame to heat hot melt system components.
S Check high pressure hoses daily for signs of excessive wear, damage, or
leaks.
S Never point a dispensing hand‐held applicator at yourself or others.
S Suspend dispensing hand‐held applicators by their proper suspension
point.
First Aid
If molten hot melt comes in contact with your skin:
1. Do NOT attempt to remove the molten hot melt from your skin.
2. Immediately soak the affected area in clean, cold water until the hot melt
has cooled.
3. Do NOT attempt to remove the solidified hot melt from your skin.
4. In case of severe burns, treat for shock.
5. Seek expert medical attention immediately. Give the SDS for the hot melt
to the medical personnel providing treatment.
Flexseam Dispensing System
12
Part 1127900_01
E 2019 Nordson Corporation
Safety Labels and Tags
Figure 1 illustrates the location of the product safety labels and tags affixed to
the equipment. Table 2 provides an illustration of the hazard identification
symbols that appear on each safety label and tag, the meaning of the
symbol, or the exact wording of any safety message.
1
2
Figure 1 Safety labels and tags
Table 2 Safety Labels and Tags
Item Part Description
1.
- - - - - -
WARNING: Hot Surface! Do not touch.
2. - - - - - -
WARNING! Risk of electrical shock. Failure to observe may result in
personal injury, death, or equipment damage.
Flexseam Dispensing System
13
Part 1127900_01
E 2019 Nordson Corporation
Description
This manual describes the installation and use of the Flexseam dispensing
system. When necessary, the reader is referred to the documentation
supplied with other Nordson products or products supplied by third parties.
The Flexseam dispensing system liquifies solid‐form polyurethane reactive
(PUR) hot melt adhesive contained in 300‐cc cartridges and maintains the
adhesive at the desired temperature. When the system is activated, it uses
compressed air to dispense a row of adhesive beads onto the surface
(usually fabric) of a product.
See Figure 2. The system includes:
S The Flexseam controller
S The Flexseam applicator
S The four‐axis robot with vision detection (camera) and feedback
system
(if applicable—other robots are available)
1
2
3

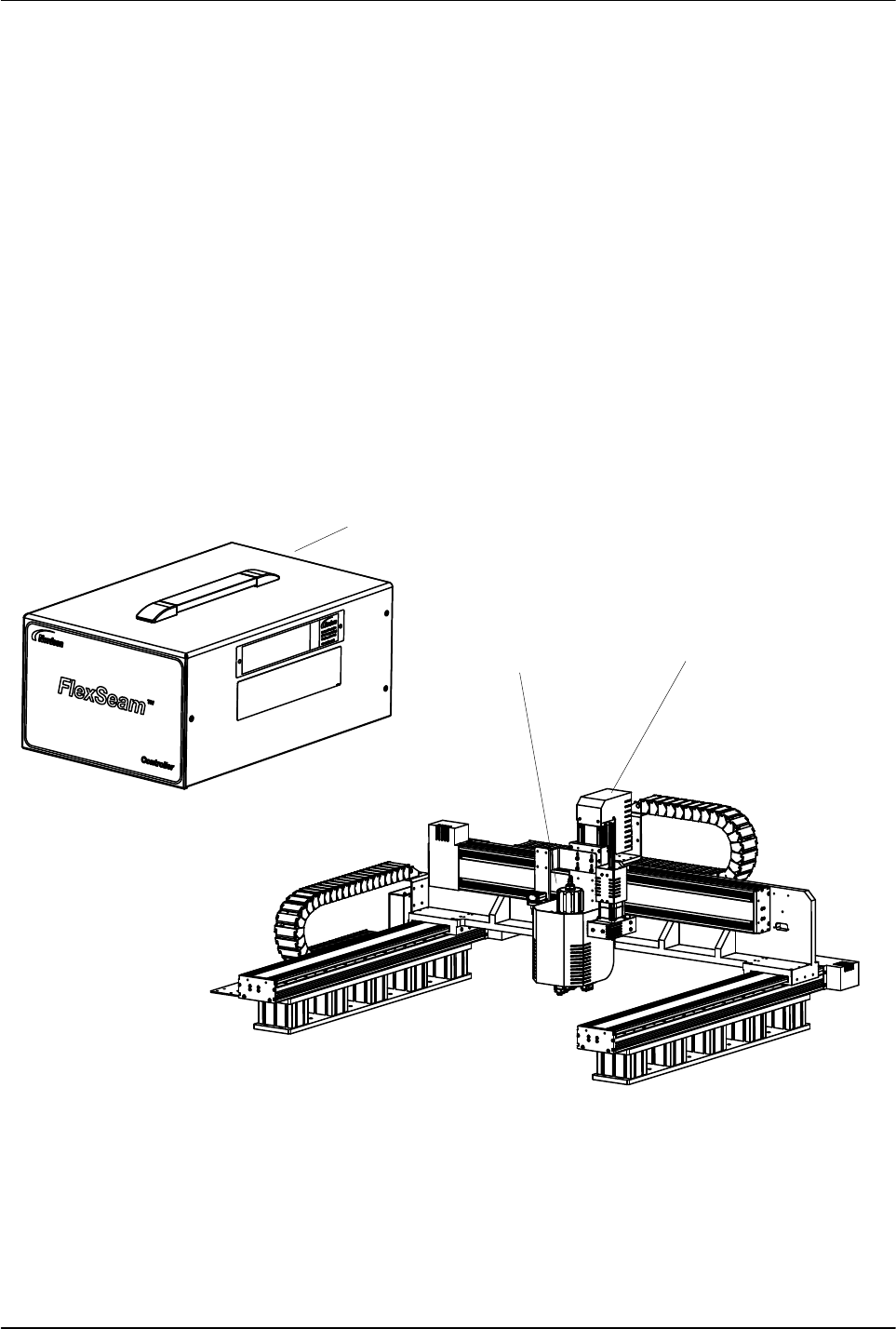

Figure 2 Flexseam dispensing system components
1. Flexseam controller 2. Flexseam applicator 3. Robot
