Flexseam Dispensing System
48
Part 1127900_01
E 2019 Nordson Corporation
Nozzle Plate Module FS300 Parts
See Figure 21.
Item Part Description Quantity Note
------ MODULE,NOZZLE PLATE,FS300
1
7407697 KIT-SVC,NOZZLE PLATE 7-10MM,FS 1 A
7404539 KIT-SVC,NOZZLE PLATE 7-10MM,C,FS 1 B
2 ------ SCR,SKT,M3X8,BL 3
3 7407705 KIT-SVC,O-RING,NOZZLE PLATE 1
4 ------ CAPSCRM,SOCKETHEAD,M2x0.4 2
5 ------ SCR,SKT,M5X10,ZN 3
6 ------ LUBRICANT,O-RING,NSF-H1,FOOD GRADE,4L 1
NOTE A: Apply to 7-10mm dispensed adhesive width for the chemical fabric.
B: Apply to 7-10mm dispensed adhesive width for the cotton fabric.
2
3X
1
3
4
2X
5
3X
6

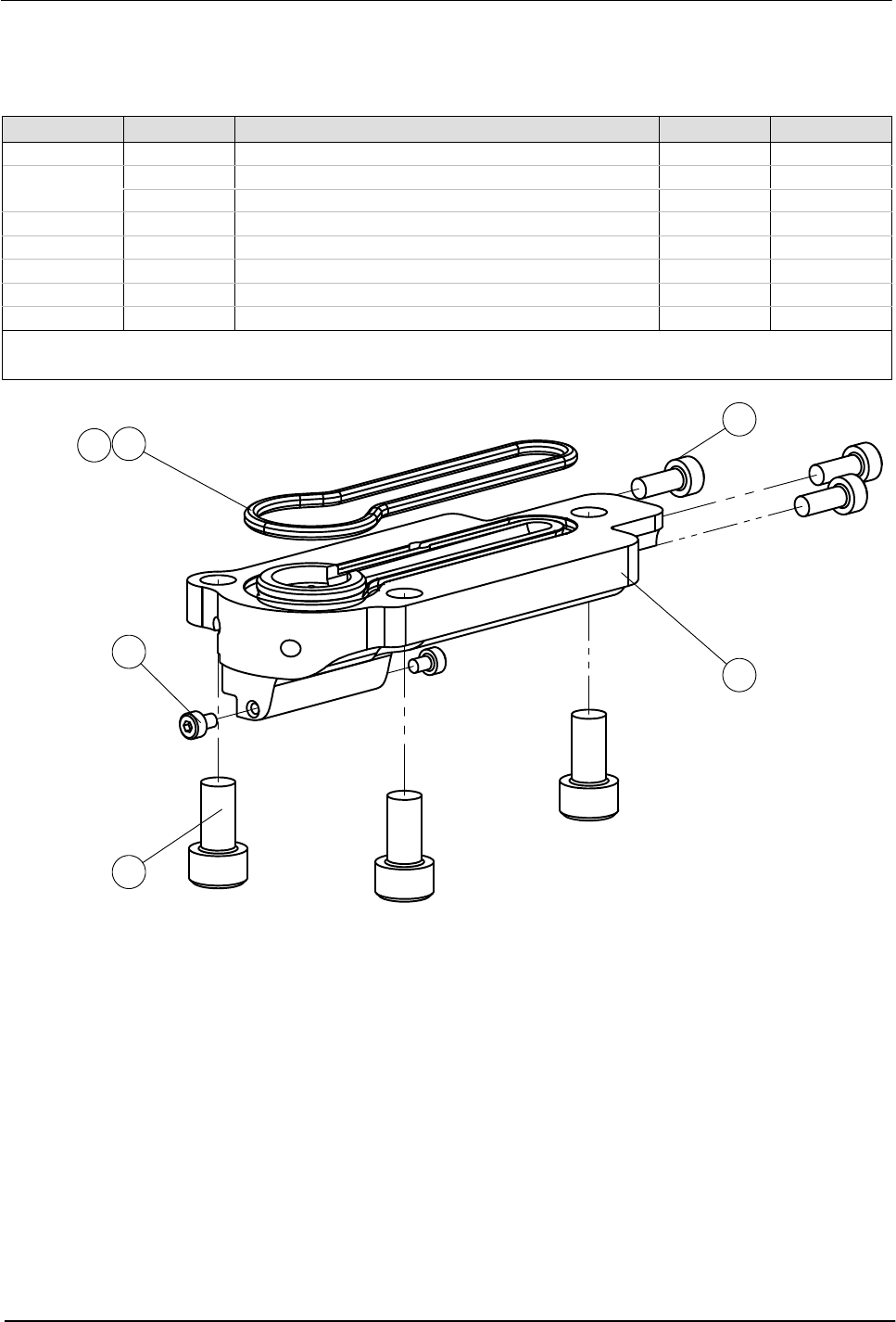

Figure 22 Nozzle plate module FS300 parts
Flexseam Dispensing System
49
Part 1127900_01
E 2019 Nordson Corporation
Nozzle Plate SEPA Jettiing FS300 Parts
See Figure 23.
Item Part Description Quantity Note
1
7404246 KIT-SVC,PLATE,SEPA,JP!,DUAL DOTS 1
2 ------ SCR,SKT,M3X8,BL 1
3 ------ SCR,SKT,M2X5,ZN 2
4 7407705 KIT-SVC,O-RING,NOZZLE PLATE 1
5 7404248 KIT-SVC,O-RING,NOZZLE,JP!,FS 1
6 ------ SCR,SKT,M5X10,ZN 3
4
3
2
1
5
6
Figure 24 Nozzle plate SEPA Jetting FS300 parts
Flexseam Dispensing System
50
Part 1127900_01
E 2019 Nordson Corporation
Flexseam Module Package Parts
See Figure 25.
Item Part Description Quantity Note
------ MODULE,PACKAGE,FS
1 ------ INSERT,TOP,PACKAGE,FS 1
2 ------ INSERT,BOTTOM,PACKAGE,FS 1
3 ------ BOX,CARDBOARD,425L X 350W X 245D 1
4 ------ LABEL,BLANK,3.00X5.00 1
3124
Figure 25 Flexseam module package parts
