Flexseam Dispensing System 45 Part 1127900_01 E 2019 Nordson Corporation 1 2 6 9 10 16 13 15 19 14 16 20 23 22 25 21 11 7 8 12 26 24 3 16 35 18 17 36 5 4 27 28 29 30 29 32 31 33 Figure 19 Flexseam module body parts
Flexseam Dispensing System
44
Part 1127900_01
E 2019 Nordson Corporation
Flexseam Module Body Parts
See Figure 19.
Item Part Description Quantity Note
------ MODULE BODY,FS
1 ------ COPPER FITTING,G1/8-Φ6 1
2 7407706 KIT-SVC,CAP,300CC 1
3 ------ SCR,SKT,M4X8,SST 4
4 ------ WASHER,FLT,M,NARROW,M4,STL,ZN 4
5 ------ WASHER,LK,M,SPT,M4,STL,ZN 4
6 ------ Ф8-1.0mm,PROTECTIVE RING 3
7 ------ Ф4.8-1mm,OPEN BUSHES 2
8 ------ COVER AND BRACKET, FS 1
9 ------ CORDSET,IC30 2HC,9 WIRE,1.5M 1
10 7407698 KIT-SVC,HARNESS,CARTRIDGE HEATER&RTD 1
11 ------ WIRE CLIP, 8-M3 2
12 ------ SCR,SKT,M3X0.5X6,ZN 5
13 ------ BRACKET FOR SOLENOID VALVE 1
14 ------ CONN,MALE,ELBOW,8MM T X 1/8UNI 3
15 7407694 KIT-SVC,SOLENOID,VALVE,HIGH FREQUENCY,FS 1
16 ------ SCR,SKT,M3X8,BL 10
17 ------ WASHER,FLT,M,REG,M3,ZINC PLATE 2
18 ------ WASHER,LK,M,SPT,M3,STL,ZN 2
19 ------ SCR,SKT,M4 X 20,ZN 2
20 ------ CONN,MALE,6MM T X 1/8 UNI 2
21 ------ BLOCK SHEET,IC30 2HC 2
22 7404199 KIT-SVC,INSULATION, CARTRIDGE 1
23 7404200 KIT-SVC,O-RING, MODULE PLATE 1
24 7407699 KIT-SVC,HARNESS,NOZZLE HEATER&RTD 1
25 ------ PISTION INSERT,SEAL,FS300 1
26 ------ CATRIDGE BODY,FS300,4AXIS 1
27 ------ SCR,SKT,M5X16,BL 4
28 ------ TAG,STAMPING,W/ADDRESS INFO 1
29 ------ RIVET,BLIND,3/32X.125,BLK,ALUM 2
30 ------ SIGN,DANGEROUS VOLTAGE 1
31 ------ SCR,DRIVE,RD,2X .187,ZN 2
32 ------ NOTCHED TAPER PIN 1,7x4 DIN1476 2
33 ------ TAG,HOT SURFACE,GENERAL 24x19 1
NS ------ LUBRICANT,O-RING,NSF-H1,FOOD GRADE,4L 1
NS ------ LUBRICANT,NEVER-SEEZ,NSF-H1,FOOD GRADE 1
36 7403228 CABLE,M8 MALE 0,FEMALE 90 1
NS: Not Shown
Flexseam Dispensing System
45
Part 1127900_01
E 2019 Nordson Corporation
1
2
6
9
10
16
13
15
19
14
16
20
23
22
25
21
11
7
8
12
26
24
3
16
35
18
17
36
5
4
27
28
29
30
29
32 3133

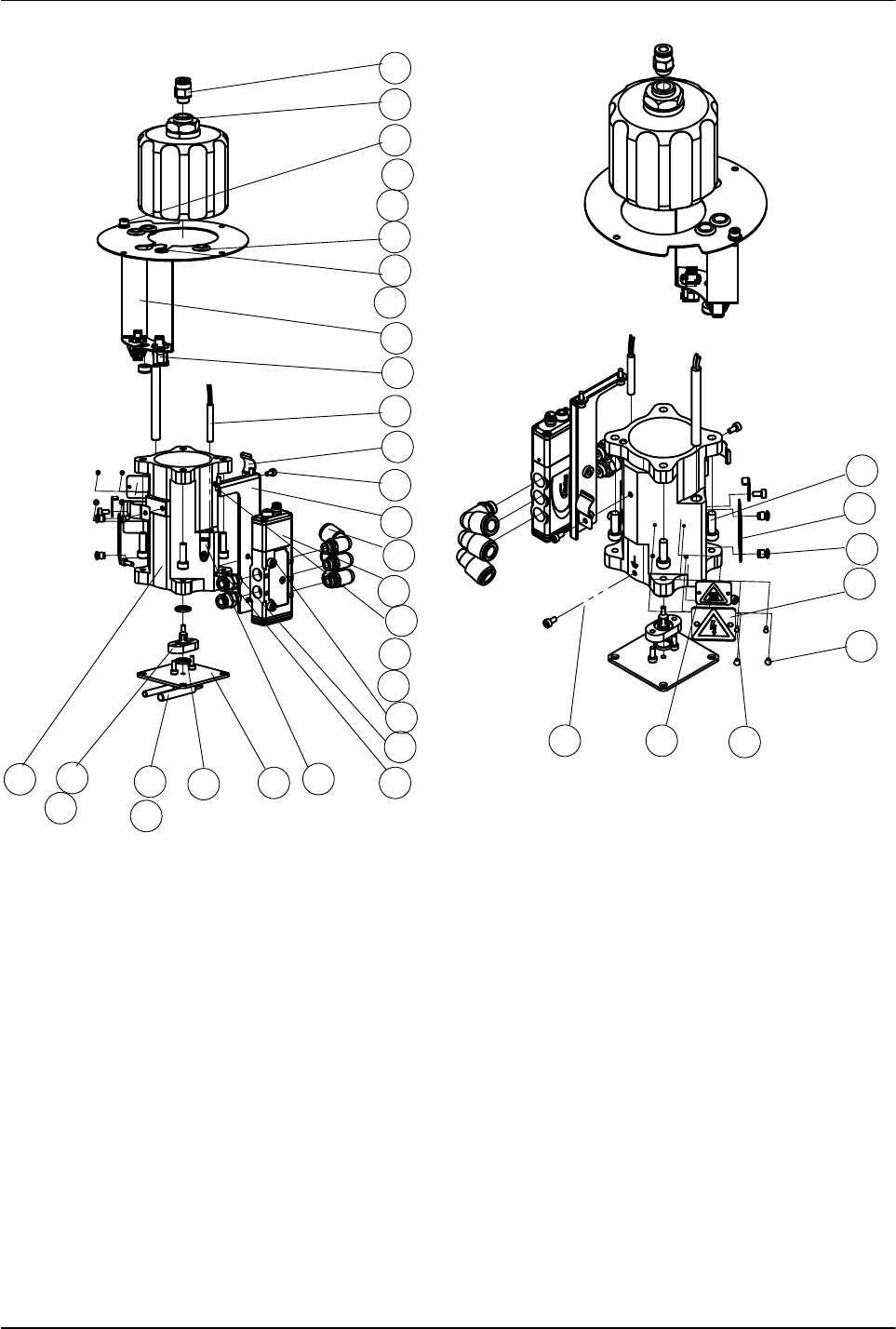

Figure 19 Flexseam module body parts
Flexseam Dispensing System
46
Part 1127900_01
E 2019 Nordson Corporation
Flexseam Pump Module 300CC Parts
See Figure 20.
Item Part Description Quantity Note
------ MODULE,PUMP,300CC
1 ------ COPPER FITTING,G1/8-Φ6 2
2 ------ MODULE,BODY,FS 1
3 7404200 KIT-SVC,O-RING, MODULE PLATE 1
4
7407700 KIT-SVC,NEEDLE,FLAT,FS 1 SLOT
COATING
7404249 KIT-SVC,NEEDLE,RN1,FS 1 JETTING
5 ------ O RING,VITON, .500X .688X.094 1
6 7407702 KIT-SVC,O-RING,NEEDLE,10/PACK,FS 1
7 7407704 KIT-SVC,O-RING,AIR CAP,10/PACK 1
8
7407703 KIT-SVC,AIR CAP,1.5MM 1 SLOT
COATING
7404244 KIT-SVC,AIR CAP,2.0MM 1 JETTING
9 ------ SCR,SKT,M5X10,ZN 2
10 ------ RETAINING RING,INT, 43,PUSHON 2
11 ------ DISC,SEAL SUPPORT 2
12 7407701 KIT-SVC,O-RING,MODULE PUMP,FS 1
13 ------ SCR,SKT,M5X18,ZN 4
14 ------ LUBRICANT,O-RING,NSF-H1,FOOD GRADE,4L1 1
