Flexseam Dispensing System 50 Part 1127900_01 E 2019 Nordson Corporation Flexseam Module Package Parts See Figure 25. Item Part Description Quantity Note ------ MODULE,PACKAGE,FS 1 ------ INSERT,TOP,PACKAGE,FS 1 2 ------…
Flexseam Dispensing System
49
Part 1127900_01
E 2019 Nordson Corporation
Nozzle Plate SEPA Jettiing FS300 Parts
See Figure 23.
Item Part Description Quantity Note
1
7404246 KIT-SVC,PLATE,SEPA,JP!,DUAL DOTS 1
2 ------ SCR,SKT,M3X8,BL 1
3 ------ SCR,SKT,M2X5,ZN 2
4 7407705 KIT-SVC,O-RING,NOZZLE PLATE 1
5 7404248 KIT-SVC,O-RING,NOZZLE,JP!,FS 1
6 ------ SCR,SKT,M5X10,ZN 3
4
3
2
1
5
6

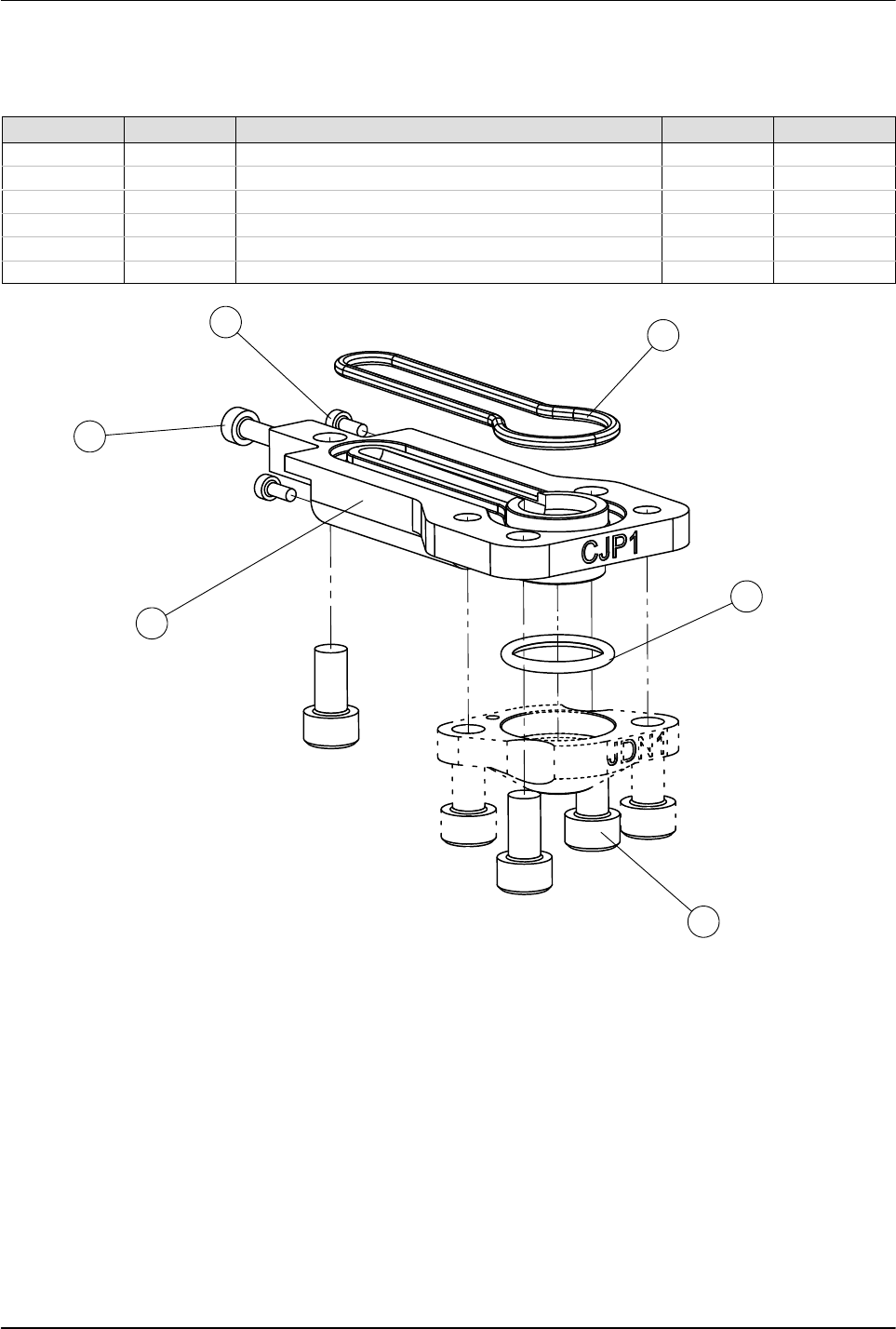

Figure 24 Nozzle plate SEPA Jetting FS300 parts
Flexseam Dispensing System
50
Part 1127900_01
E 2019 Nordson Corporation
Flexseam Module Package Parts
See Figure 25.
Item Part Description Quantity Note
------ MODULE,PACKAGE,FS
1 ------ INSERT,TOP,PACKAGE,FS 1
2 ------ INSERT,BOTTOM,PACKAGE,FS 1
3 ------ BOX,CARDBOARD,425L X 350W X 245D 1
4 ------ LABEL,BLANK,3.00X5.00 1
3124

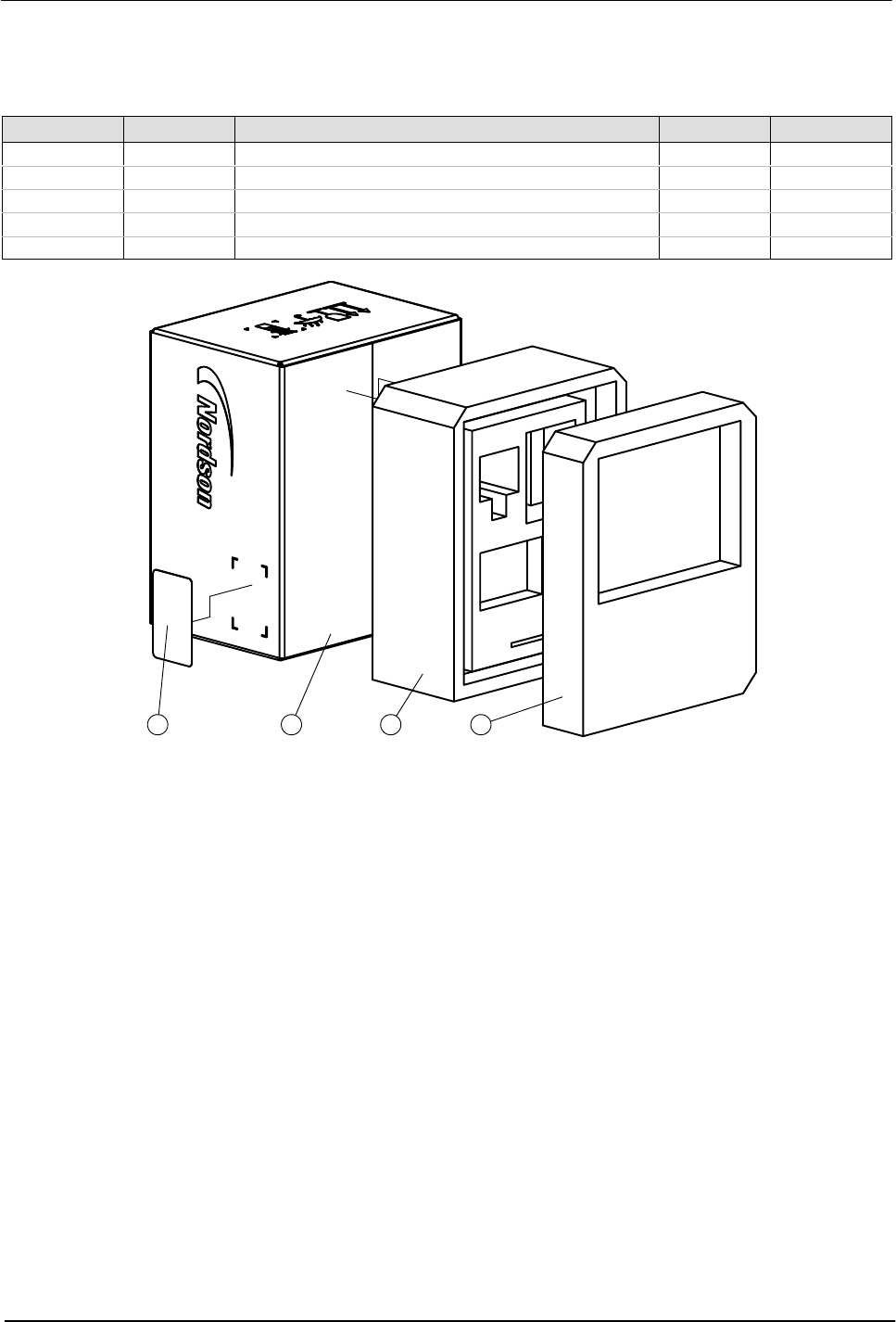

Figure 25 Flexseam module package parts
Flexseam Dispensing System
51
Part 1127900_01
E 2019 Nordson Corporation
Flexseam Ship‐with Kit
Item Part Description Quantity Note
------ KIT,SHIP WITH FS
1 ------ CHECK VALVE,SYRINGE, ASSY,PJ300 1
2 7402541 CORDSET,SOL,PJ,UNITY TOUCH 1
3 ------ MAN,FLEXSEAM SLOT DISPENSER 1
4 ------ BAG,POLY,KITS,ROLLS,5X7 3
5 ------ BAG,POLY,KITS,ROLLS,3 1/2X5 1/2 4
6 ------ SCR SKT M2x5,ZN 4
7 ------ SCR,SKT,M4X8,SST 4
8 ------ WASHER,FLT,M,NARROW,M4,STL,ZN 4
9 ------ WASHER,LK,M,SPT,M4,STL,ZN 4
10 ------ SCR,SKT,M5X16,BL 2
11 ------ SCR,SKT,M3X8,BL 2
12 ------ WASHER,FLT,M,REG,M3,ZINC PLATE 2
13 ------ WASHER,LK,M,SPT,M3,STL,ZN 2
