Flexseam Dispensing System 40 Part 1127900_01 E 2019 Nordson Corporation Flexseam Slot Dispenser Applicator Parts See Figure 17. Item Part Description Quantity Note 7404039 APPLICATOR,SLOT,8MM/4/0.3X0.6/D,4AX 1 ------ MO…
Flexseam Dispensing System
39
Part 1127900_01
E 2019 Nordson Corporation
Flexseam Dispensing System Assemblies
See Figure 16. Refer to Cable Part Numbers for a list of cables that may be
used with a Flexseam system.
Item Part Description Quantity Note
1 7403289 FLEXSEAM CONTROLLER 1 A
NS 7402620 UNITY,TOUCH,DISPLAY,S,DESKTOP — A
2
7404039 APPLICATOR,SLOT,8MM/4/0.3X0.6/D,4AX 1 B
7404525 APPLICATOR,SLOT,10MM/5/0.3X0.6/D,4AX 1 C
7404495 APPLICATOR,SLOT,7MM/4/0.3X0.3/L,4AX 1 D
7404526 APPLICATOR,SLOT,9MM/5/0.3X0.3/L,4AX 1 E
7404527 APPLICATOR,JETTING,SEPA,0.17,4AX 1 F
NS ------ KIT,SHIP WITH FS — G
3 ------ 4 AIX ROBOT —
NOTE A: Refer to Controller S manual.
B: Apply to 8mm dispensed adhesive width for the chemical fabric.
C: Apply to 10mm dispensed adhesive width for the chemical fabric. Refer to Flexseam applicator parts.
D: Apply to 7mm dispensed adhesive width for the cotton fabric. Refer to Flexseam applicator parts.
E: Apply to 9mm dispensed adhesive width for the cotton fabric. Refer to Flexseam applicator parts.
F: Refer to Flexseam applicator parts.
G: Refer to Contents of the Ship-With Kit in the Installation and Flexseam Ship‐with Kit sections.
NS: Not Shown
1
2
3

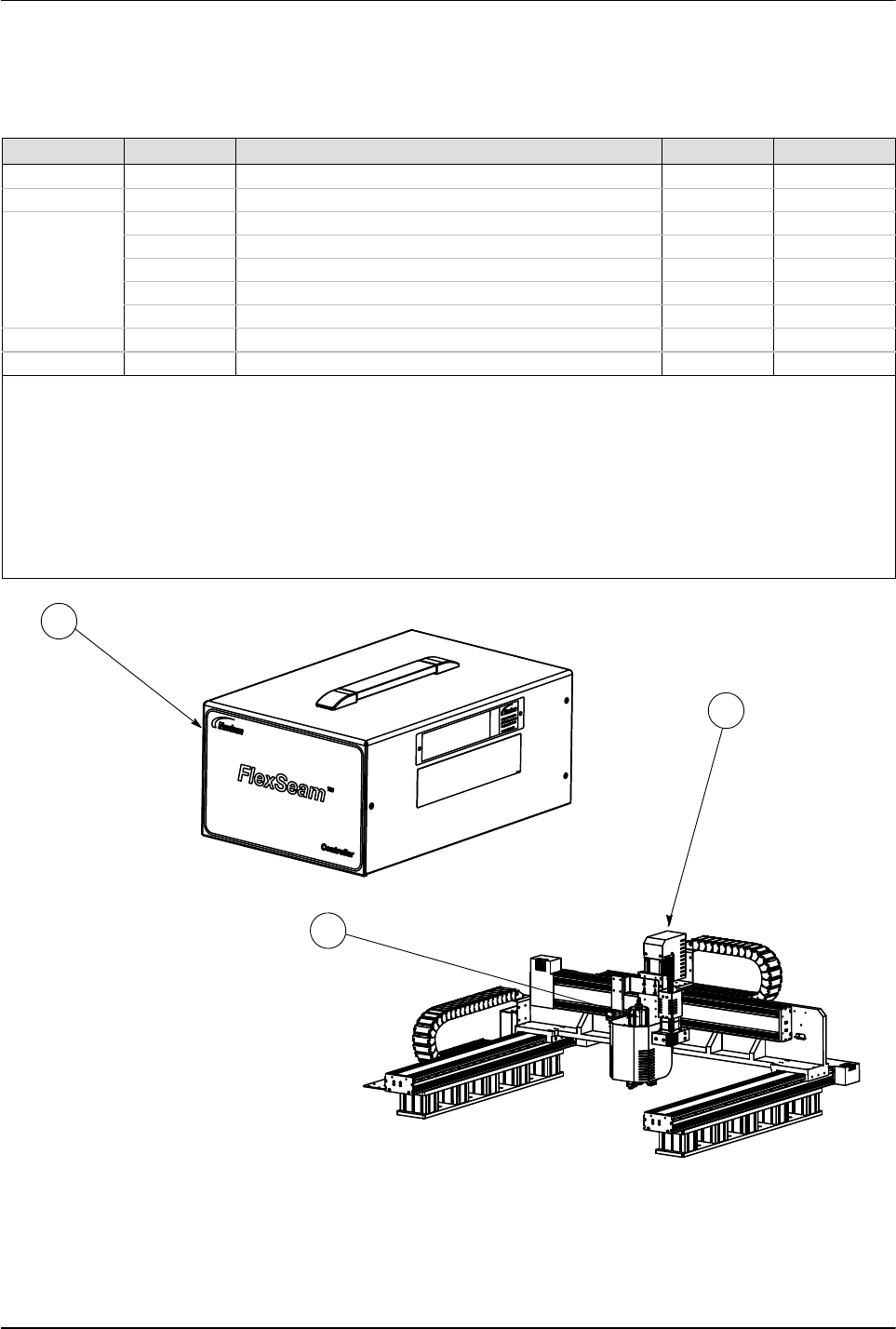

Figure 16 Flexseam controller and applicator
Flexseam Dispensing System
40
Part 1127900_01
E 2019 Nordson Corporation
Flexseam Slot Dispenser Applicator Parts
See Figure 17.
Item Part Description Quantity Note
7404039 APPLICATOR,SLOT,8MM/4/0.3X0.6/D,4AX
1 ------ MODULE BODY,FS 1
2 ------ MODULE,PUMP,300CC 1
3 ------ MODULE,NOZZLE PLATE,FS300 1
4 ------ SCR SKT M2x5,ZN 4
5 ------ L LIP COVER,7-10MM,FS 1
6 ------ LIP,SLOT,ROBOT,0.3X0.6MM,8MM,4DOTS 1
7 ------ TUBING,PFA,6MM ODX 1 MM WALL 1
8 ------ MODULE,PACKAGE,FS 1
NS ------ KIT,SHIP WITH FS 1
NS: Not Shown
Item Part Description Quantity Note
7404525 APPLICATOR,SLOT,10MM/5/0.3X0.6/D,4AX
1 ------ MODULE BODY,FS 1
2 ------ MODULE,PUMP,300CC 1
3 ------ MODULE,NOZZLE PLATE,FS300 1
4 ------ SCR SKT M2x5,ZN 4
5 ------ L LIP COVER,7-10MM,FS 1
6 ------ LIP,SLOT,ROBOT,0.3X0.6MM,10MM,5DOTS 1
7 ------ TUBING,PFA,6MM ODX 1 MM WALL 1
8 ------ MODULE,PACKAGE,FS 1
NS ------ KIT,SHIP WITH FS 1
NS: Not Shown
Item Part Description Quantity Note
7404495 APPLICATOR,SLOT,7MM/4/0.3X0.3/L,4AX
1 ------ MODULE BODY,FS 1
2 ------ MODULE,PUMP,300CC 1
3 ------ MODULE,NOZZLE PLATE,FS300 1
4 ------ SCR SKT M2x5,ZN 4
5 ------ L LIP COVER,7-10MM,FS 1
6 ------ LIP,SLOT,ROBOT,0.3X0.3MM,7MM,4DOTS 1
7 ------ TUBING,PFA,6MM ODX 1 MM WALL 1
8 ------ MODULE,PACKAGE,FS 1
NS ------ KIT,SHIP WITH FS 1
NS: Not Shown
Flexseam Dispensing System
41
Part 1127900_01
E 2019 Nordson Corporation
Item Part Description Quantity Note
7404526 APPLICATOR,SLOT,9MM/5/0.3X0.3/L,4AX
1 ------ MODULE BODY,FS 1
2 ------ MODULE,PUMP,300CC 1
3 ------ MODULE,NOZZLE PLATE,FS300 1
4 ------ SCR SKT M2x5,ZN 4
5 ------ L LIP COVER,7-10MM,FS 1
6 ------ LIP,SLOT,ROBOT,0.3X0.3MM,9MM,5DOTS 1
7 ------ TUBING,PFA,6MM ODX 1 MM WALL 1
8 ------ MODULE,PACKAGE,FS 1
NS ------ KIT,SHIP WITH FS 1
NS: Not Shown
B
8
VIEW B
1
2
3
4
2X
5
6
7

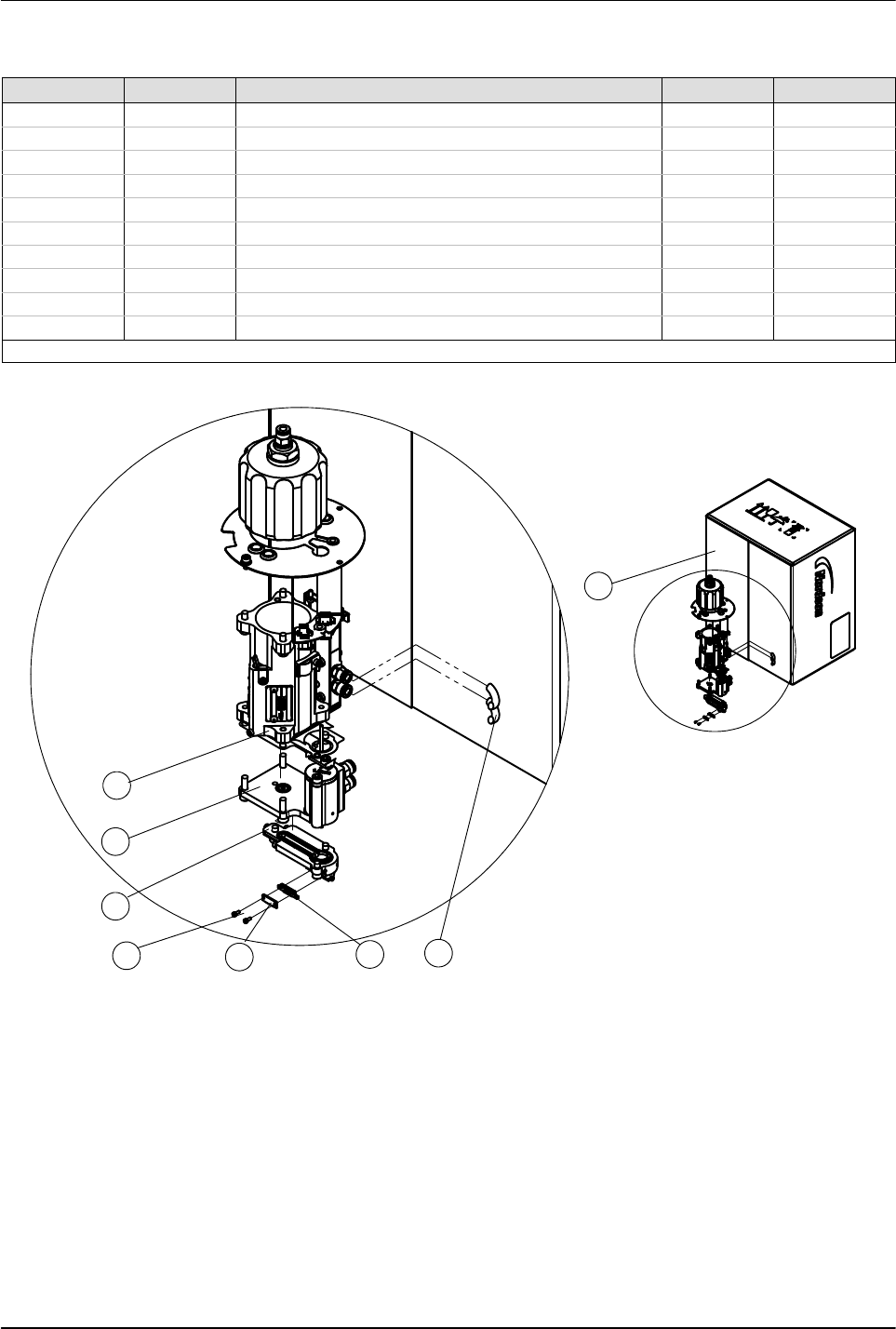

Figure 17 Flexseam slot dispenser applicator parts
