Flexseam Dispensing System 52 Part 1127900_01 E 2019 Nordson Corporation Lip Part Numbers See Figure 26. Part Description 7402556 L LIP COVER,7-10MM,FS 7403295 LIP,SLOT,ROBOT,0.3X0.6MM,8MM,4DOTS 7403299 LIP,SLOT,ROBOT,0.…
Flexseam Dispensing System
51
Part 1127900_01
E 2019 Nordson Corporation
Flexseam Ship‐with Kit
Item Part Description Quantity Note
------ KIT,SHIP WITH FS
1 ------ CHECK VALVE,SYRINGE, ASSY,PJ300 1
2 7402541 CORDSET,SOL,PJ,UNITY TOUCH 1
3 ------ MAN,FLEXSEAM SLOT DISPENSER 1
4 ------ BAG,POLY,KITS,ROLLS,5X7 3
5 ------ BAG,POLY,KITS,ROLLS,3 1/2X5 1/2 4
6 ------ SCR SKT M2x5,ZN 4
7 ------ SCR,SKT,M4X8,SST 4
8 ------ WASHER,FLT,M,NARROW,M4,STL,ZN 4
9 ------ WASHER,LK,M,SPT,M4,STL,ZN 4
10 ------ SCR,SKT,M5X16,BL 2
11 ------ SCR,SKT,M3X8,BL 2
12 ------ WASHER,FLT,M,REG,M3,ZINC PLATE 2
13 ------ WASHER,LK,M,SPT,M3,STL,ZN 2
Flexseam Dispensing System
52
Part 1127900_01
E 2019 Nordson Corporation
Lip Part Numbers
See Figure 26.
Part Description
7402556 L LIP COVER,7-10MM,FS
7403295 LIP,SLOT,ROBOT,0.3X0.6MM,8MM,4DOTS
7403299 LIP,SLOT,ROBOT,0.3X0.6MM,10MM,5DOTS
7404508 LIP,SLOT,ROBOT,0.2X0.35MM,7MM,4DOTS
7404509 LIP,SLOT,ROBOT,0.3X0.3MM,9MM,5DOTS
7404622 L LIP COVER,7-10MM,I,FS
1
2

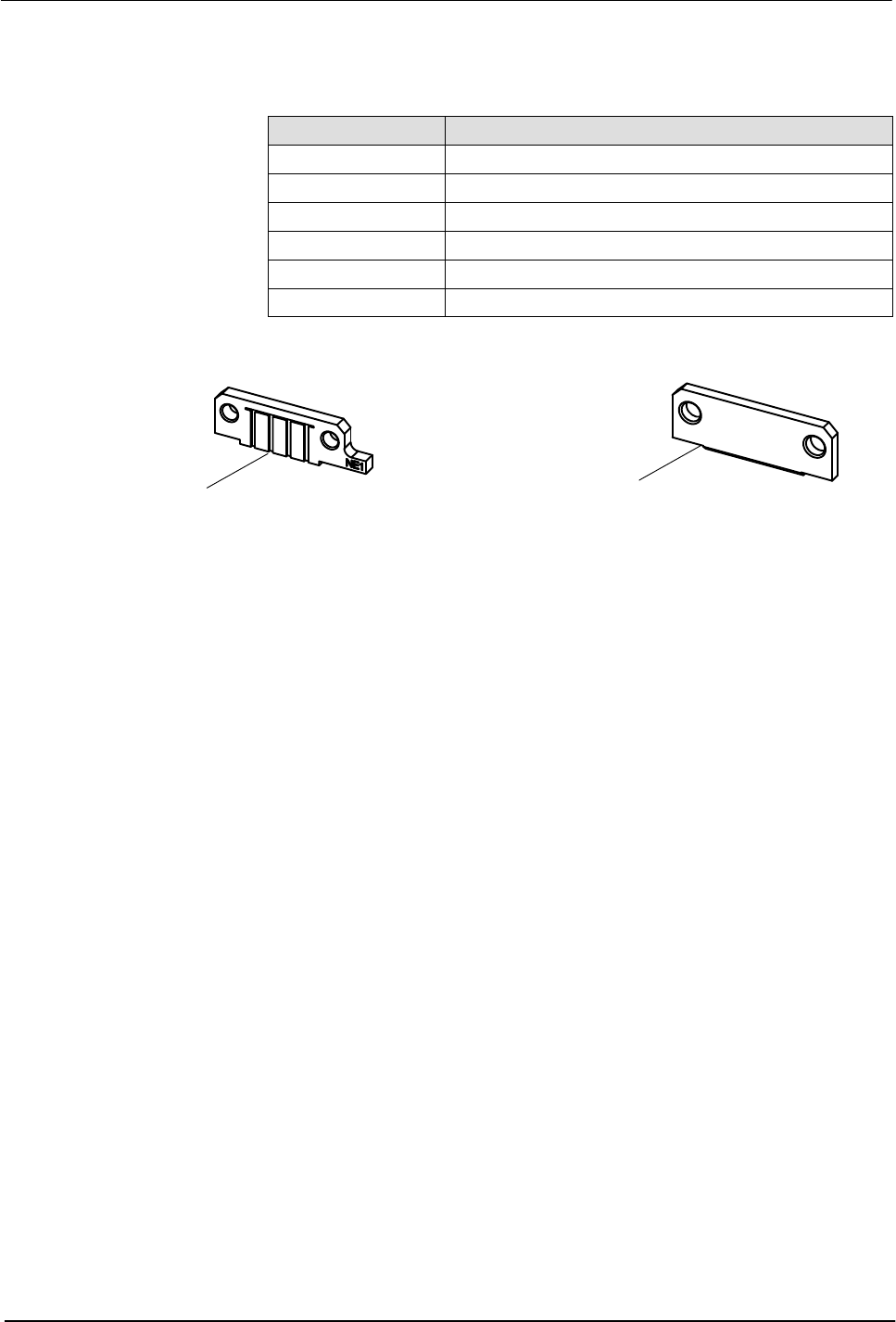

Figure 26 Lip parts
1. Nozzle lip 2. Shave lip (with mark)
Flexseam Dispensing System
53
Part 1127900_01
E 2019 Nordson Corporation
Recommended Spare Parts and Supplies
Equipment Part Item Note
System 1094186 DRYER,AIR,DESICCANT,INLINE,1/4NPT
Flexseam Applicator
7407694 KIT-SVC,SOLENOID VALVE,HIGH FREQUENCY,FS
7407697 KIT-SVC,NOZZLE PLATE 7-10MM,FS A
7407698 KIT-SVC,HARNESS,NOZZLE HEATER&RTD
7407699 KIT-SVC,HARNESS,CARTRIDGE HEATER&RTD
7407700 KIT-SVC,NEEDLE,FLAT,FS
7407701 KIT-SVC,O-RING,MODULE PUMP,FS
7407702 KIT-SVC,O-RING,NEEDLE,10/PACK,FS
7407703 KIT-SVC,AIR CAP,1.5MM
7407704 KIT-SVC,O-RING,AIR CAP,10/PACK
7407705 KIT-SVC,O-RING,NOZZLE PLATE
7407706 KIT-SVC,CAP,300CC
7404199 KIT-SVC,INSULATION, CARTRIDGE
7404200 KIT-SVC,O-RING, MODULE PLATE
7402541 CORDSET,SOL,PJ,UNITY TOUCH
7403228 CABLE,M8 MALE 0,FEMALE 90
7404246 KIT-SVC,PLATE,SEPA,JP1,DUAL DOTS
7404247 KIT-SVC,NOZZLE,SEPA,DUAL,JDN1
7404248 KIT-SVC,O-RING,NOZZLE,JP1,FS
7404244 KIT-SVC,AIR CAP,2.0MM
7404249 KIT-SVC,NEEDLE,RN1,FS
NOTE A: Apply to 7-10mm dispensed adhesive width for smooth fabric.
