Key Components
Figures 4 provides the name and location of key system components.
9
7
10
11
Slot Coating applicator
Jetting applicator
12
13

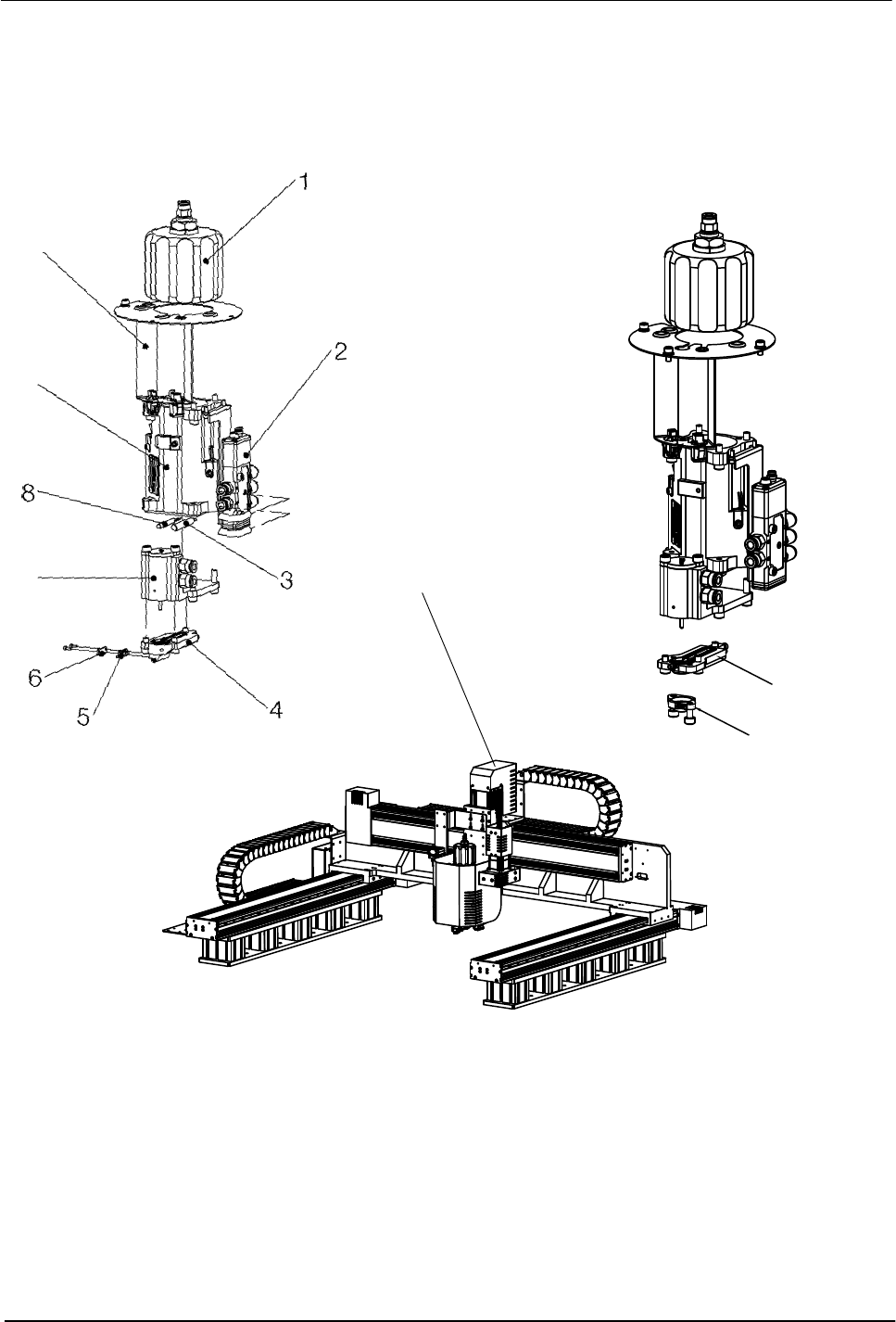

Figure 4 Flexseam applicator key components
1. Air cap
2. Solenoid valve
3. Heater
4. Nozzle plate (slot coating)
5. Shave lip
6. Nozzle lip
7. Module
8. RTD
9. Cartridge body
10. Cover and bracket
11. Robot
12. Nozzle plate (jetting)
13. Nozzle (jetting)
Flexseam Dispensing System
17
Part 1127900_01
E 2019 Nordson Corporation
Installation
Installation involves placing the system in the desired location and making
the electrical and hydraulic connections.
Electro‐Magnetic Compliance Information
This system is classified as Class A, Group 2 under the European standard
for limits and methods of measurement, EN 55011.
Experience of Installation Personnel
The instructions provided in this section are intended to be used by
personnel who have experience in the following subjects:
S Hot melt application processes
S Industrial power and control wiring
S Industrial mechanical installation practices
S Basic process control and instrumentation
Customer‐Supplied Installation Components
In addition to the components provided by Nordson Corporation, installation
of the Flexseam dispensing system requires the following customer‐supplied
components:
S Air pressure regulator and filter
S Appropriate guarding and signage as required to prevent personal
injury during operation and service activities
Flexseam Dispensing System
18
Part 1127900_01
E 2019 Nordson Corporation
Ship‐With Kit Contents
P/N 983403
P/N 7407652
P/N 7402541
P/N 7402601
P/N 1003505
P/N 982166
P/N 983402
1
2
3
4
5
6
7
8
P/N 982023
P/N 983067
9
P/N 983400
10
P/N 1005078
11

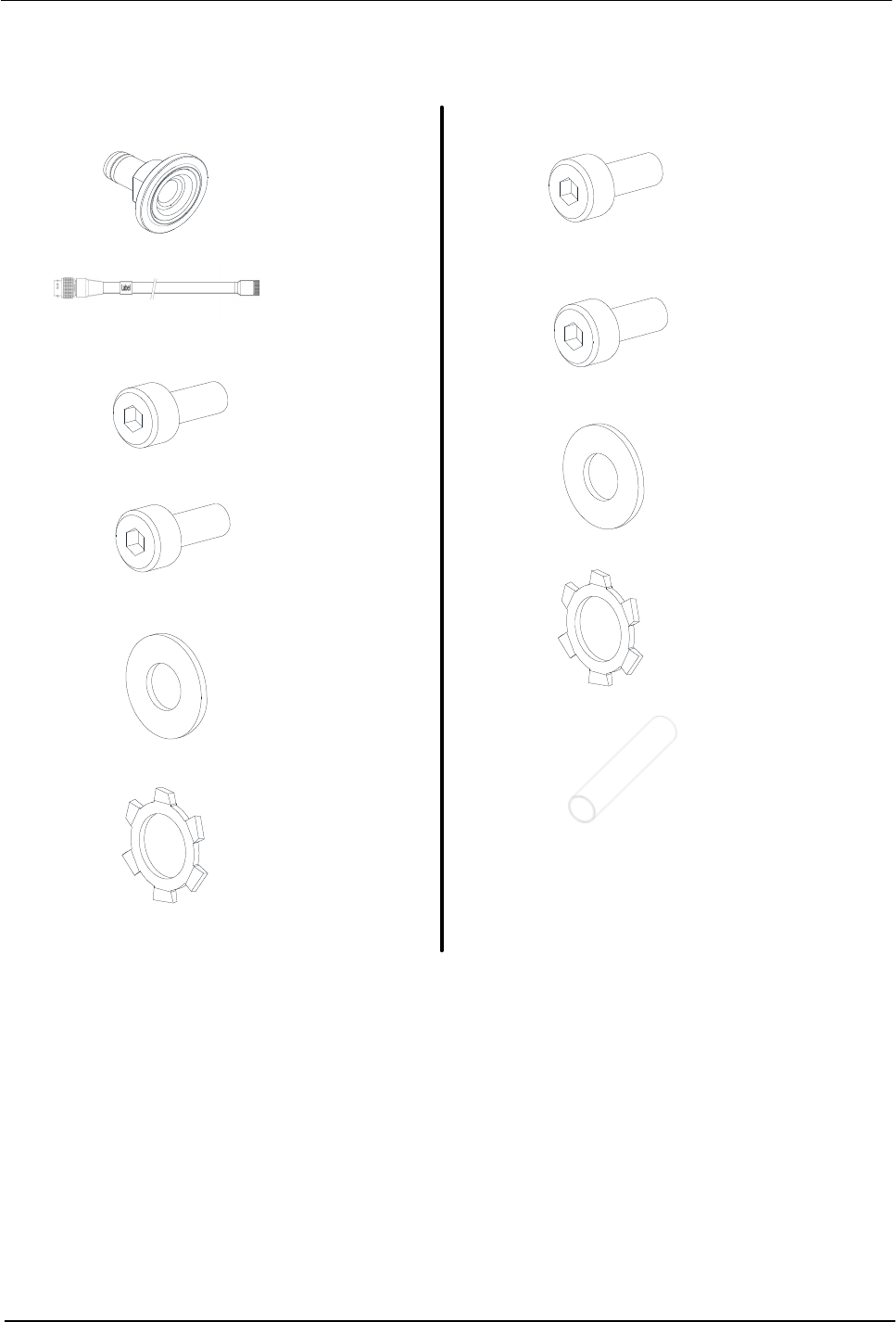

Figure 5 Contents of the ship‐with kit
1. 7407652 CHECK VALVE, SYRINGE,
ASSY, PJ300
2. 7402541 CORDSET, SOL, PJ, UNITY
TOUCH
3. 7402601 SCR SKT M2X5, ZN
4. 1003505 SCR, SKT, M4X8, SST
5. 983402 WASHER, FLT, M,
NARROW, M4, STL, ZN
6. 983403 WASHER, LK, M, SPT,
M4, STL, ZN
7. 982166 SCR, SKT, M5X16, BL
8. 982023 SCR, SKT, M3X8, BL
9. 983067 WASHER, FLT, M,
REG, M3, ZINC PLATE
10. 983400 WASHER, LK, M,
SPT, M3, STL, ZN
11. 1005078 TUBING, PTFE 6
MM OD X 1MM WALL
(0.26FT)
