2OM-1751
2-62
(G03_04)
H [mm]
The component placement height can be corrected.
H
Component
PCB
Reference Plane
F2B52
Note
When a parameter is set as "H" data in the last line (last step No.), it
becomes invalid because "E" is set in the "C (Control Command)" text
box.
(G03_05)
Component ID
Set component IDs in the text boxes.
(G03_06)
Fdr No.
Set the Nos. of the feeders loaded with components.
Note
The feeder Nos. (Fdr Nos.) to be set here must be specied in the
placement feeder location data.
(G03_07)
Symbol
Use them to enter the characters written on the board, for wiring pattern, etc.
Max. 32 characters can be used to set.
Available characters are half-width alphabetical/numerical characters and
symbols.
Note
(a) The automatic operation is not affected by these comments.
(b) The comments can be used to check "Ref. No." printed on the upper
surfaces of PCBs.
1303-001
3.7 Placement
2OM-1751
2-63
(G03_08)
C
Enter some of the following control commands.
Note
If a control command other than the following ones is used, the step
becomes invalid.
- (hyphen)
: This command handles the steps as those for component
placement.
S
: This command invalidates the steps specied as those for
component placement.
C
: This command invalidates the steps specied as those for
component placement.
Note:
As for dispensers, these steps become valid.
D
: This command handles the steps as those for component
placement.
Note:
As for dispensers, these steps become invalid.
E
: This shows the end of the placement data (O). When
placement data (O) is not created, this shows the end of the
steps in the placement data (P).
P, Q
: This shows the end of the placement data (P) of a repetitive
pattern program.
B : When the unit PCB BBR function (option) is used, set this
control command for P-No. 1. See Note (b).
0, 1, 2, 3, 4, 5, 6, 7, 8, 9:
These control commands are used to enable the block sorting
function. See Note (a).
Note
(a) When the block sorting function is used in the following case, the
productivity will be improved because components are placed on the
specied areas of unit PCBs.
•
It is required to change the nozzles in the nozzle stocker for
component placement on a certain unit PCB according to the
repetitive pattern program.
(b) Do not set the B command in any lines except "P-No. 1".
(c) Conrm that "0" (zero) is set in the "X [mm]", "Y [mm]", "Z=theta
[deg]", "H", and "Fdr No." text boxes of the last line (last step No.)
and set "E", "P", or "Q".
(G03_09)
Comment
Set a comment for each step No. Alphanumeric characters and symbols can
be used. Up to 32 characters (alphanumerics and marks) can be used.
Note
(a) The automatic operation is not affected by these comments.
(b) The comments can be used to check "Ref. No." printed on the upper
surfaces of PCBs.
1303-001
3.7 Placement
2OM-1751
2-64
(G04) O-Data

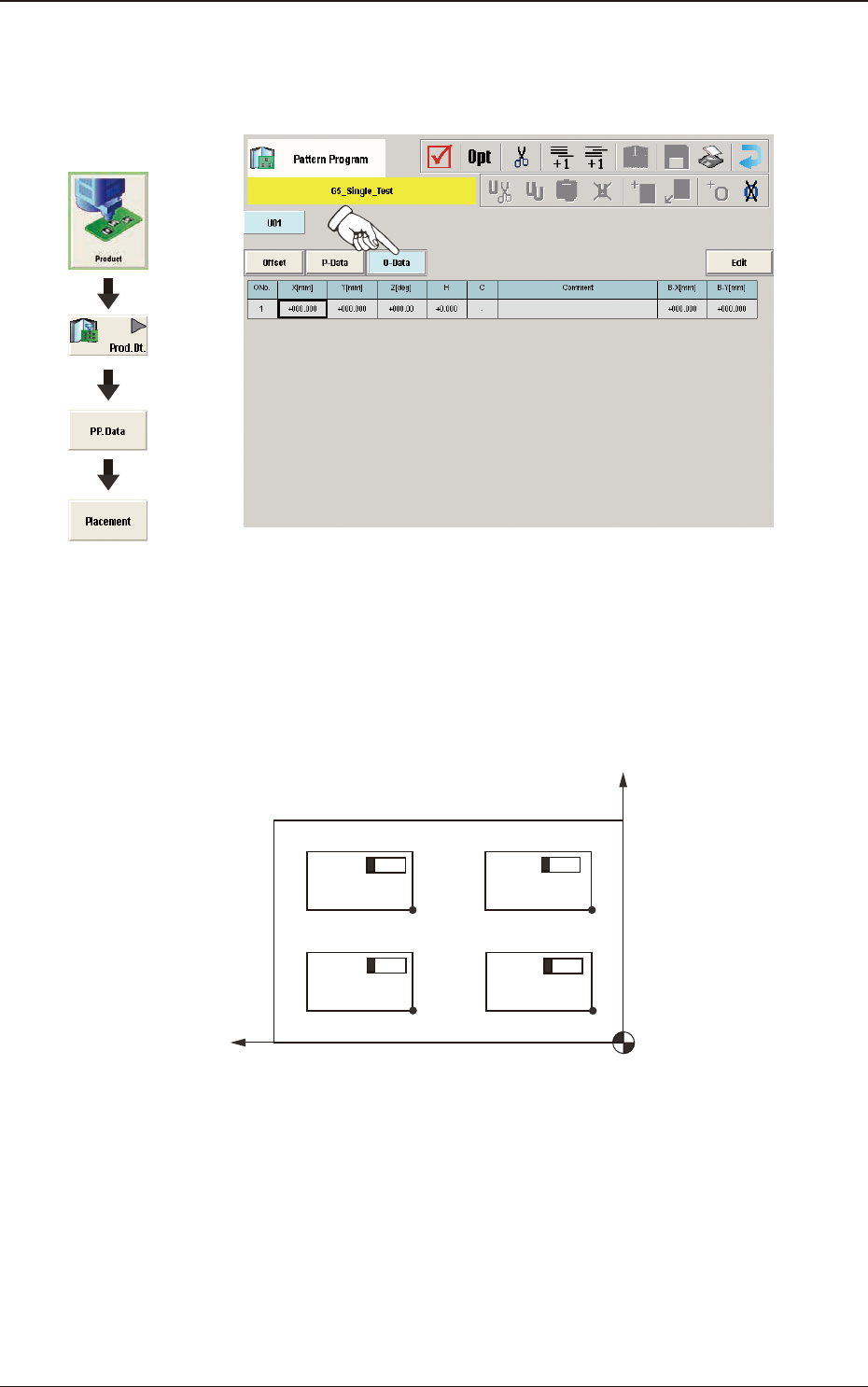

When the [O-Data] button is pressed in the "Placement" window, the
following tab sheet appears.
F2B53
(G04_01)
Ono.
Shown are the step Nos. of the placement data (O).
These step Nos. are regarded as repetitive pattern Nos. Parameters must be
entered in each line (pattern).
O-No.1
O-No.2
O-No.3
O-No.4
Pattern 4
Pattern 2 Pattern 1
Pattern 3
Example of Repetitive Pattern Program F2B54
1303-001
3.7 Placement
Graphic
