2OM-1751
6-261303-001

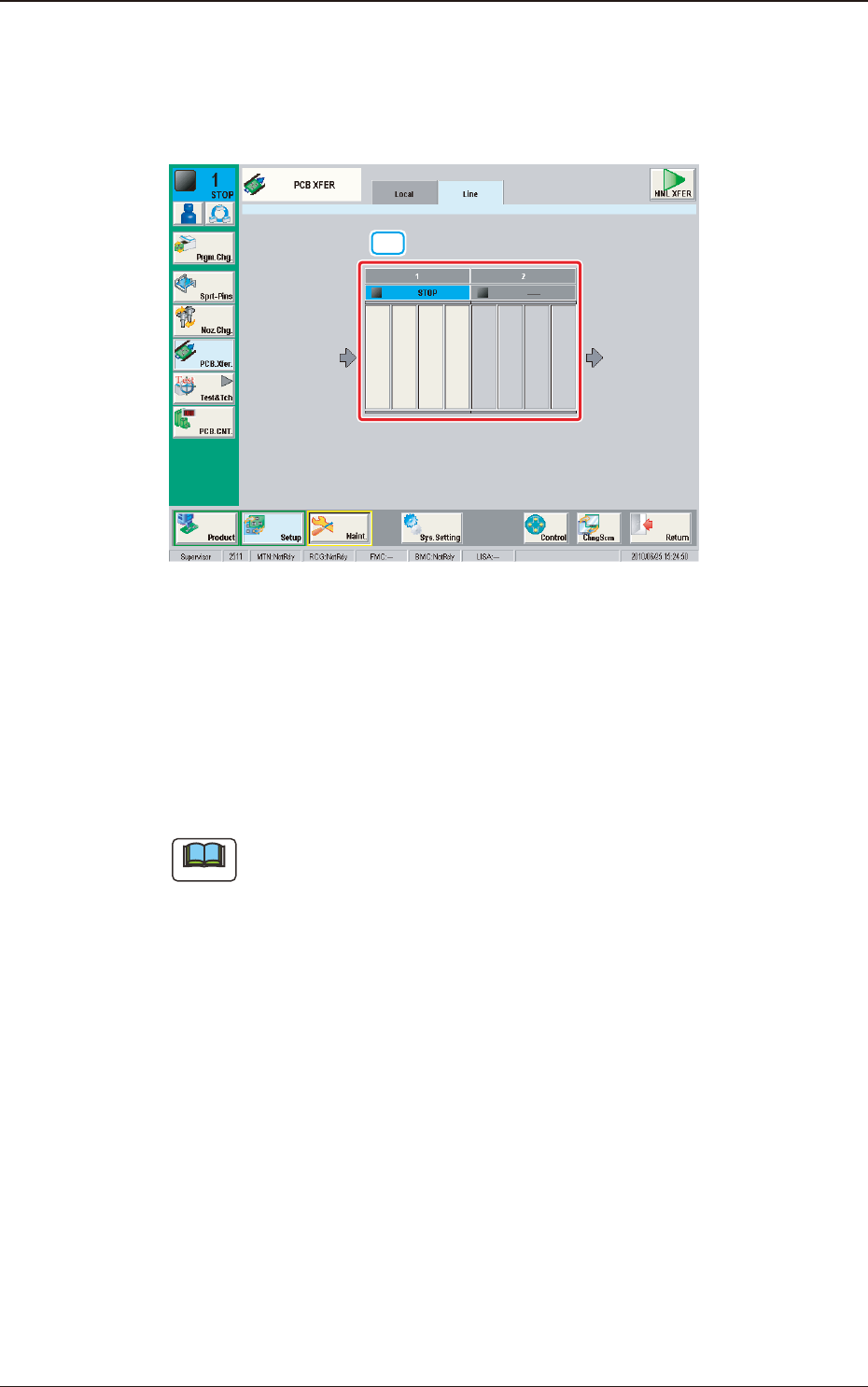

6.2 "Line" Tab Sheet
This tab sheet enables the operator to transfer a PCB between two or more
machines.
[1]
F2F30
[1] Conveyor Image Display Section
Each block of the conveyor of which an image is displayed, functions as a
button.
When the conveyor block button is pressed and within 10 seconds, the
[START] button on the operation panel is pressed, the PCB is transferred to
the position.
Note
(a) This button is displayed when two or more machines are installed in the
line.
(b) Up to 16 conveyor blocks are displayed.
6.2 "Line" Tab Sheet
2OM-1751
6-271303-001
6.3 "MNL XFER" Window
This "MNL XFER" window enables the operator to transfer a PCB manually.
[2]
[2]
[4]
[3]
[1]
F2F31
[1] Conveyor Image Display Section
Each block of the conveyor, of which an image is displayed, functions as a
button.
When the conveyor block button is pressed and within 10 seconds, the
[START] button on the operation panel is pressed, the PCB is transferred to
the position.
[2] PCB LOCATE L and PCB LOCATE R
Using these buttons, PCB positioning is performed.
When the [Exec.] button is pressed and within 10 seconds the [START]
button is pressed on the operation panel, the PCB is positioned while the
[START] button is being held down.
When the [Rlse.] button is pressed and within 10 seconds the [START]
button is pressed on the operation panel, the PCB positioning is released
while the [START] button is being held down.
[3] [Stpr L] and [Stpr R]
Using these selection buttons, the stopper positioning is performed.
When the [UP] button is pressed and within 10 seconds the [START] button
is pressed on the operation panel, the selected backup base (stopper) is
moved up while the [START] button is being held down.
When the [DOWN] button is pressed and within 10 seconds the [START]
button is pressed on the operation panel, the selected backup base (stopper)
is moved down while the [START] button is being held down.
6.3 "MNL XFER" Window
2OM-1751
6-28
[4] XFER Start
When the arrow button showing the direction to where the conveyor is to
be moved, is pressed, and within 10 seconds the [START] button is pressed
on the operation panel, the conveyor is moved while the [START] button is
being held down.
1303-001
