2. Electrical Circuit Diagram 0005-002-(M741W-BM-1 104) 5-68 Tg0250-PM-MD Operation Box B SDS IN
2. Electrical Circuit Diagram
0005-002-(M741W-BM-1103) 5-67 Tg0250-PM-MD
Operation Box A SDS OUT
2. Electrical Circuit Diagram
0005-002-(M741W-BM-1104) 5-68 Tg0250-PM-MD

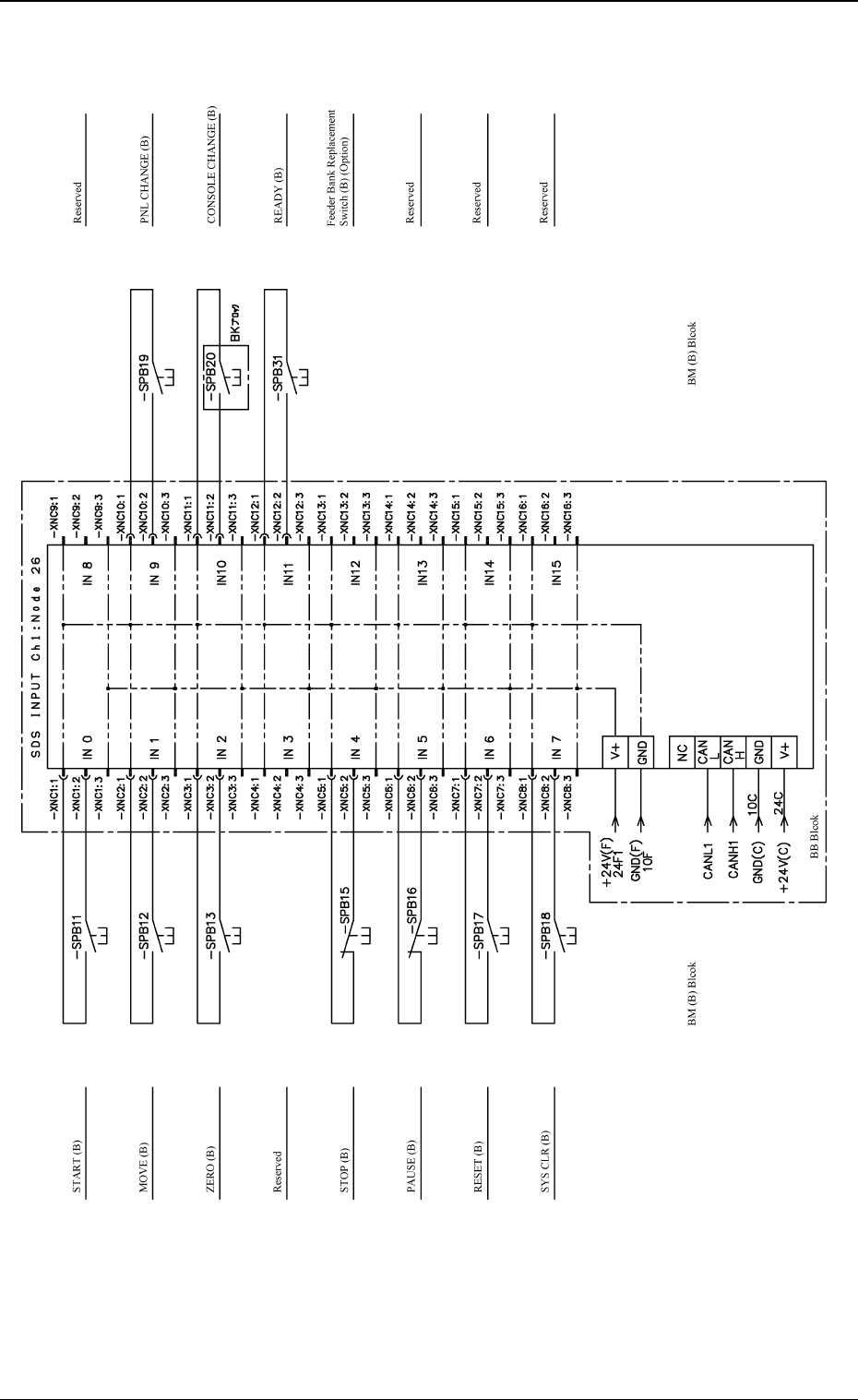

Operation Box B SDS IN
2. Electrical Circuit Diagram
0005-002-(M741W-BM-1105) 5-69 Tg0250-PM-MD

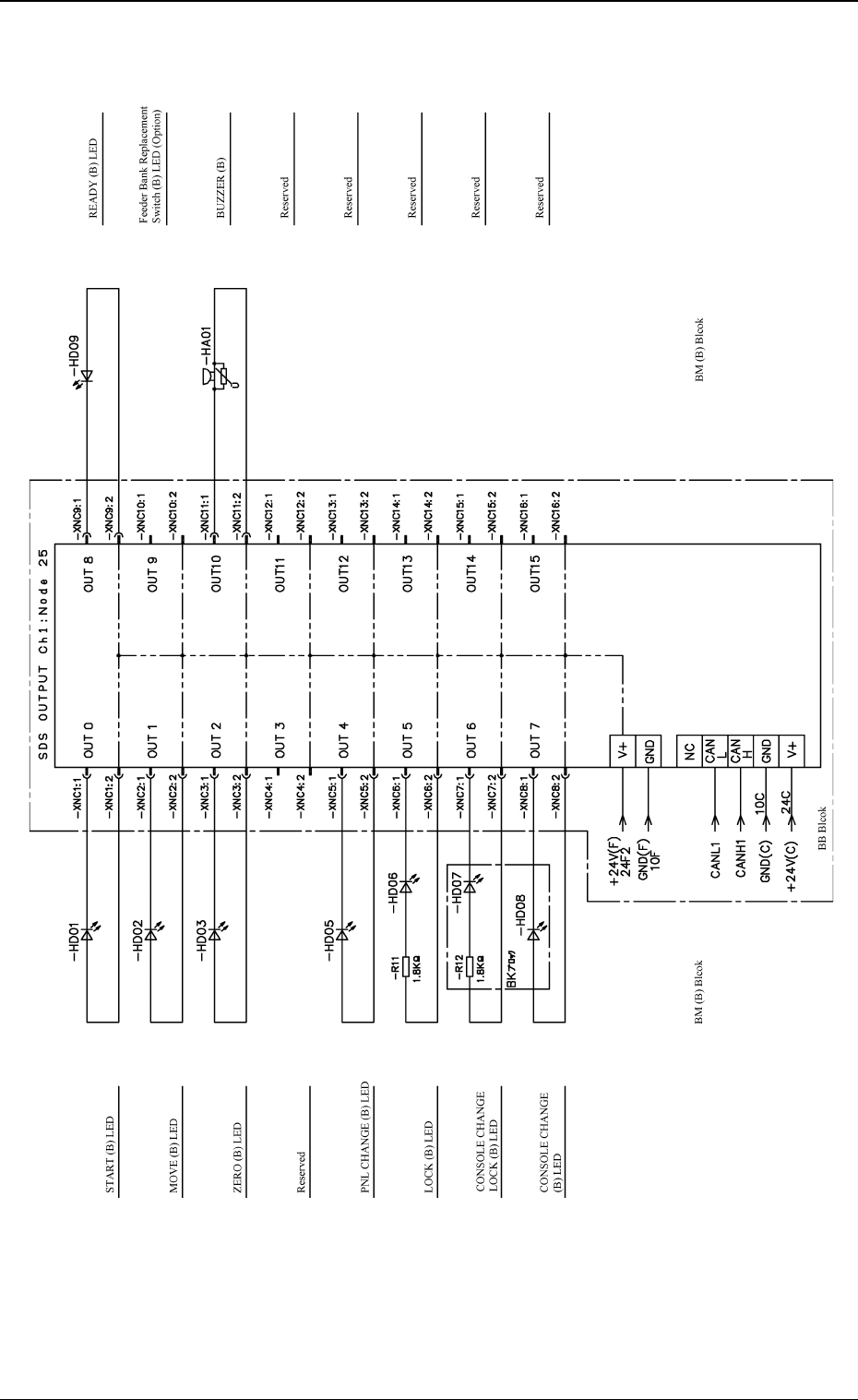

Operation Box B SDS OUT
