Section 6 Location of Sensors and Loads Layout of Sensors and Loads for Feeder A 0005-002-(M741Y-QD-1 101) 6-13 Tg0250-PM-MD

Section 6 Location of Sensors and Loads

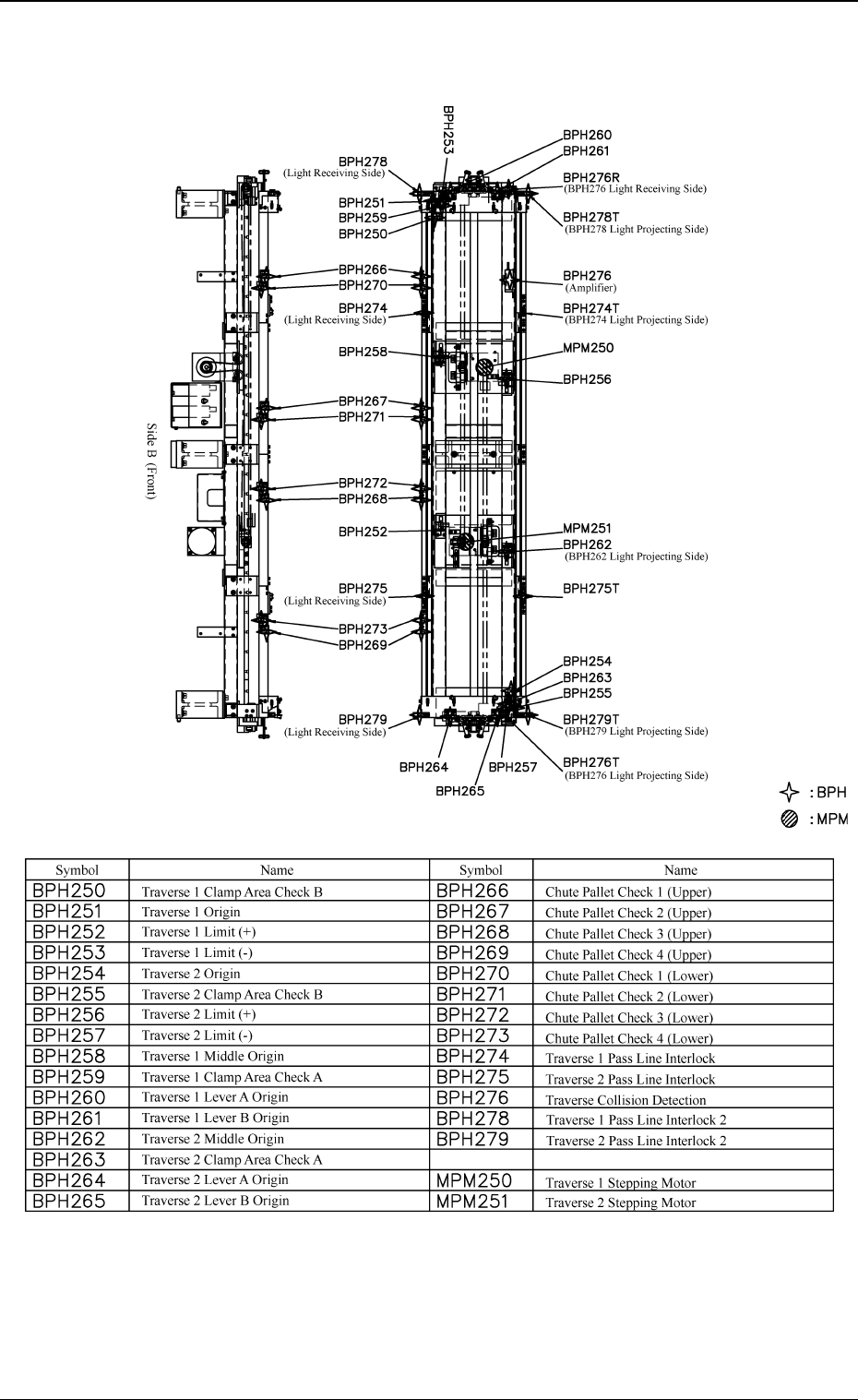

Layout of Sensors and Loads for Tray Traverse

0005-002-(M741Y-TT-1101) 6-12 Tg0250-PM-MD

Section 6 Location of Sensors and Loads

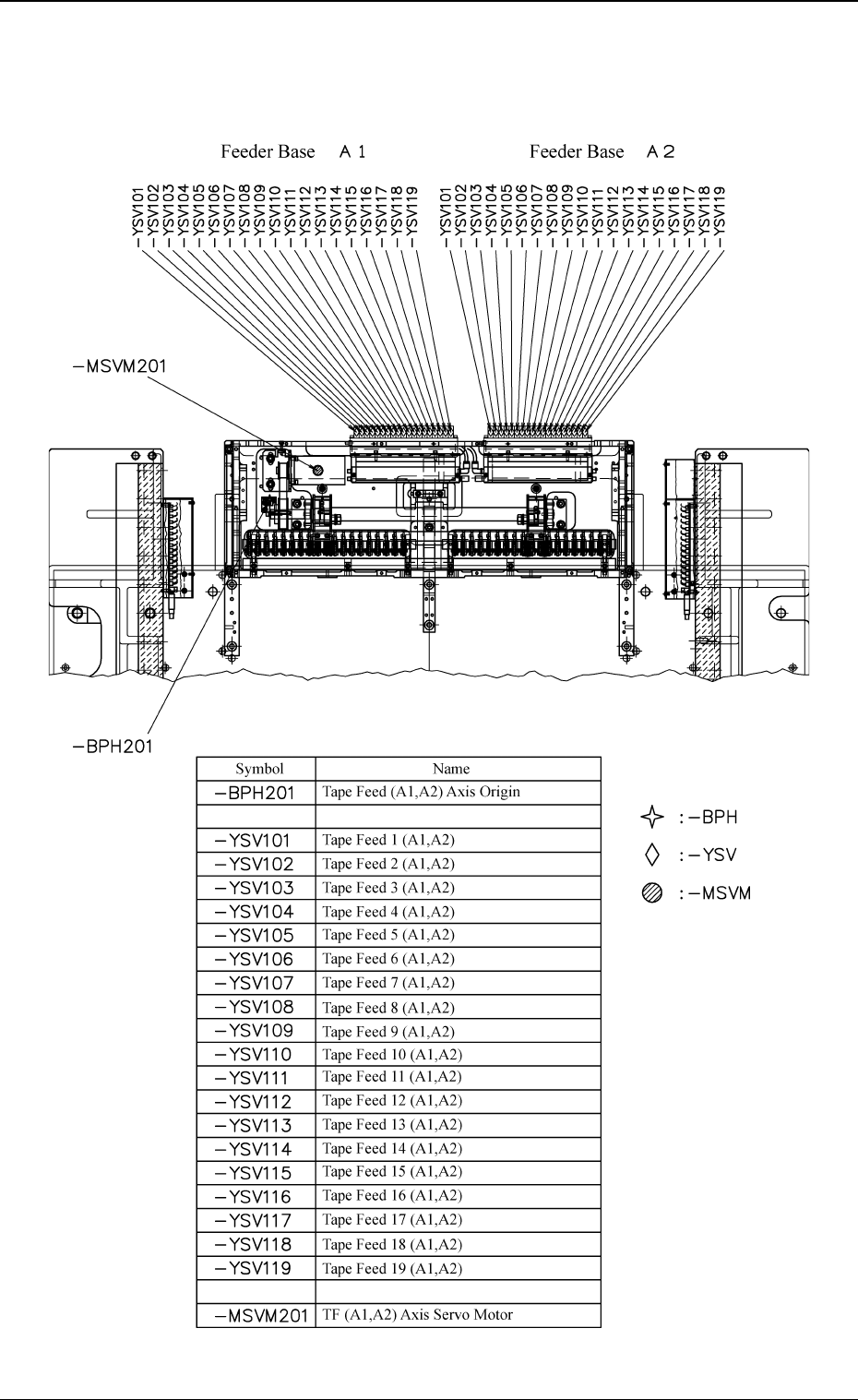

Layout of Sensors and Loads for Feeder A

0005-002-(M741Y-QD-1101) 6-13 Tg0250-PM-MD

Section 6 Location of Sensors and Loads

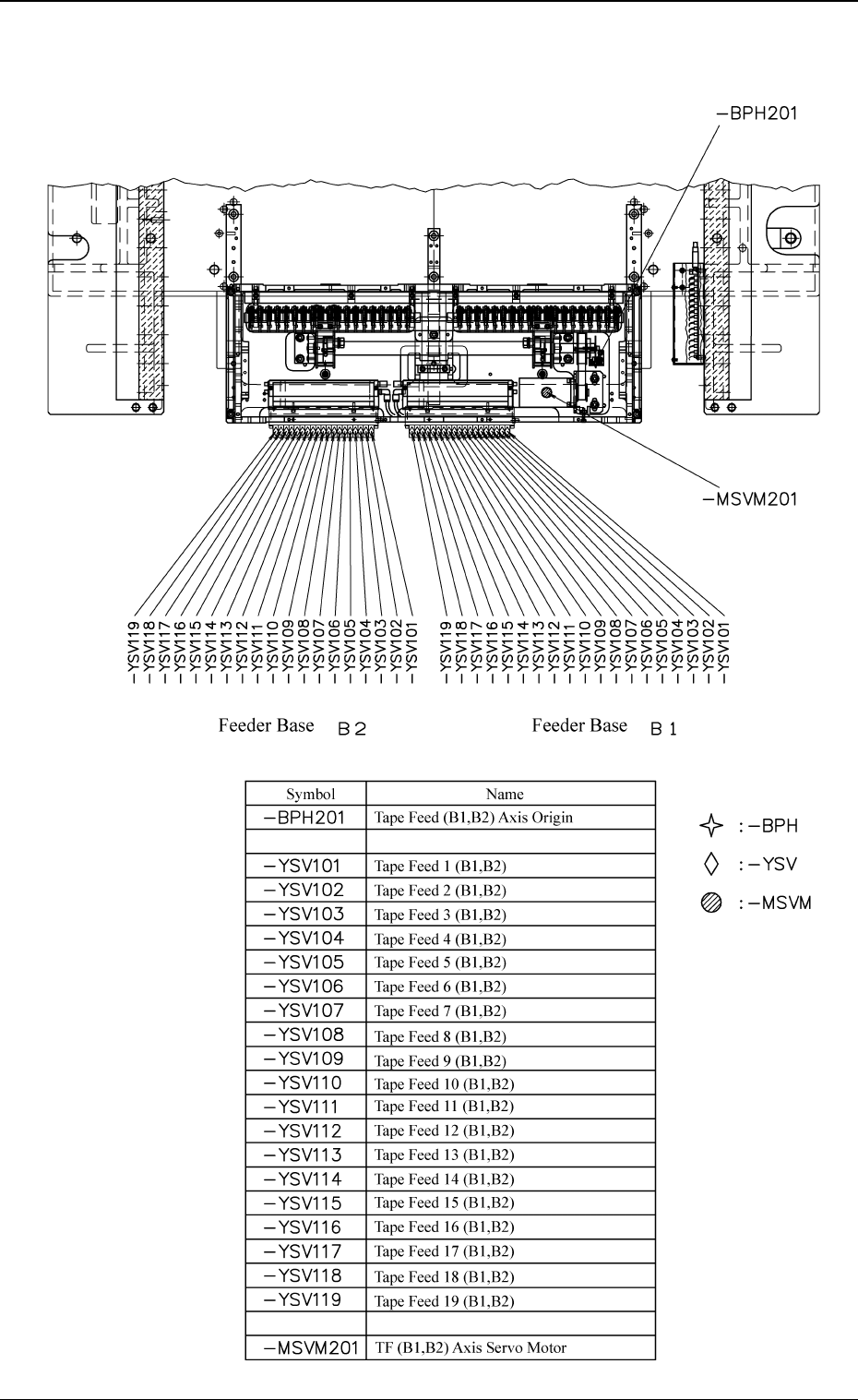

Layout of Sensors and Loads for Feeder B

0005-002-(M741Y-QD-1102) 6-14 Tg0250-PM-MD
