0005-002-(M741Y-BB-1121) 7-32 Tg0250-PM-MD

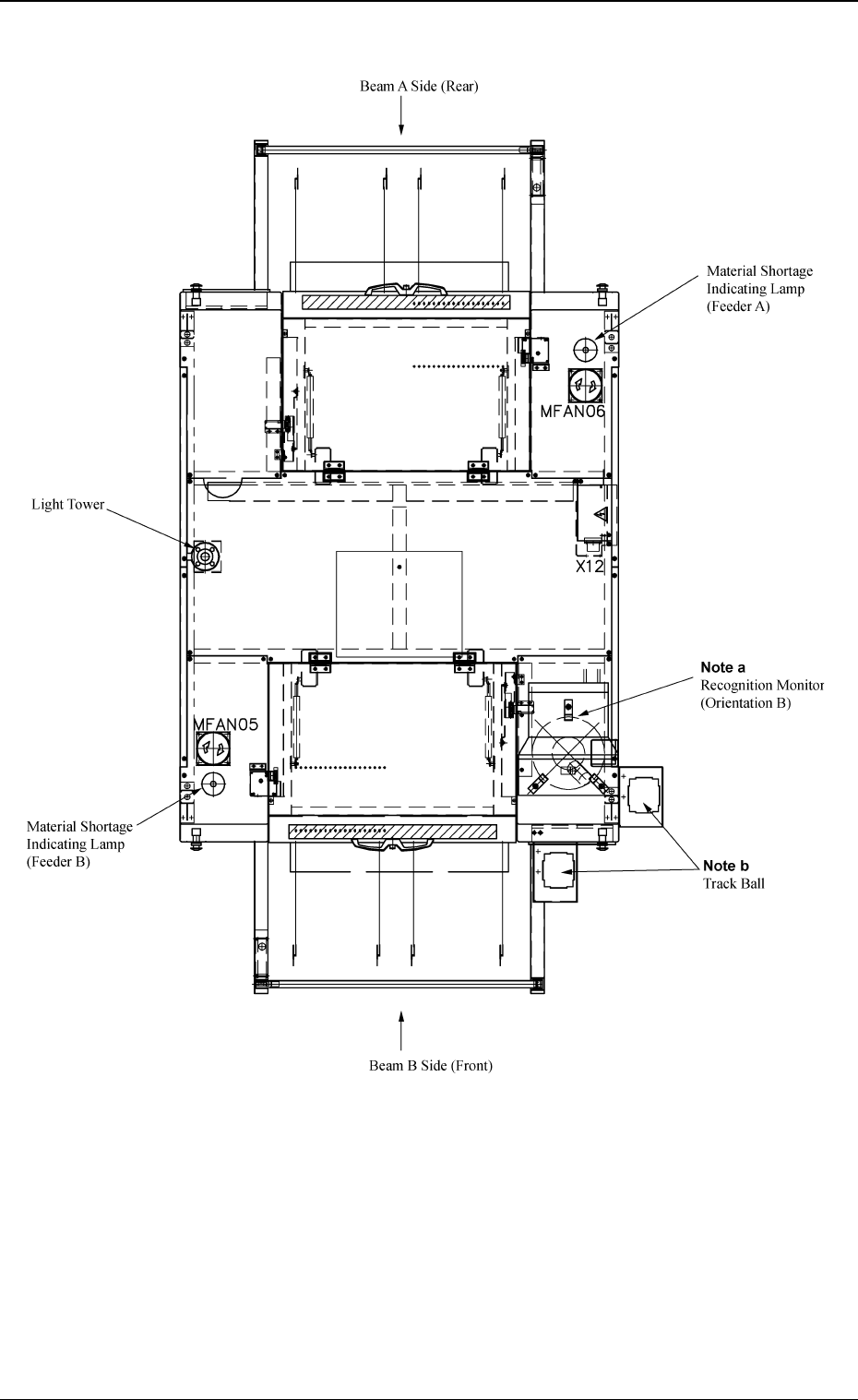

Layout of Machine Top

Section 7 Parts Location

Notes: (a) As for the recognition monitor, the standard installation is based on “Orientation

B”. The monitor can also be installed based on “Orientation A”.

(b) As for the track ball, the standard attachment is based on “Orientation B”. “Front

Side” or “Rear Side” can also be selected.
