2. Electrical Circuit Diagram 9910-001-(M741W-QG-1 101) 5-80 Tg0250-PM-MD Feeder Base R (A) SDS 1

2. Electrical Circuit Diagram

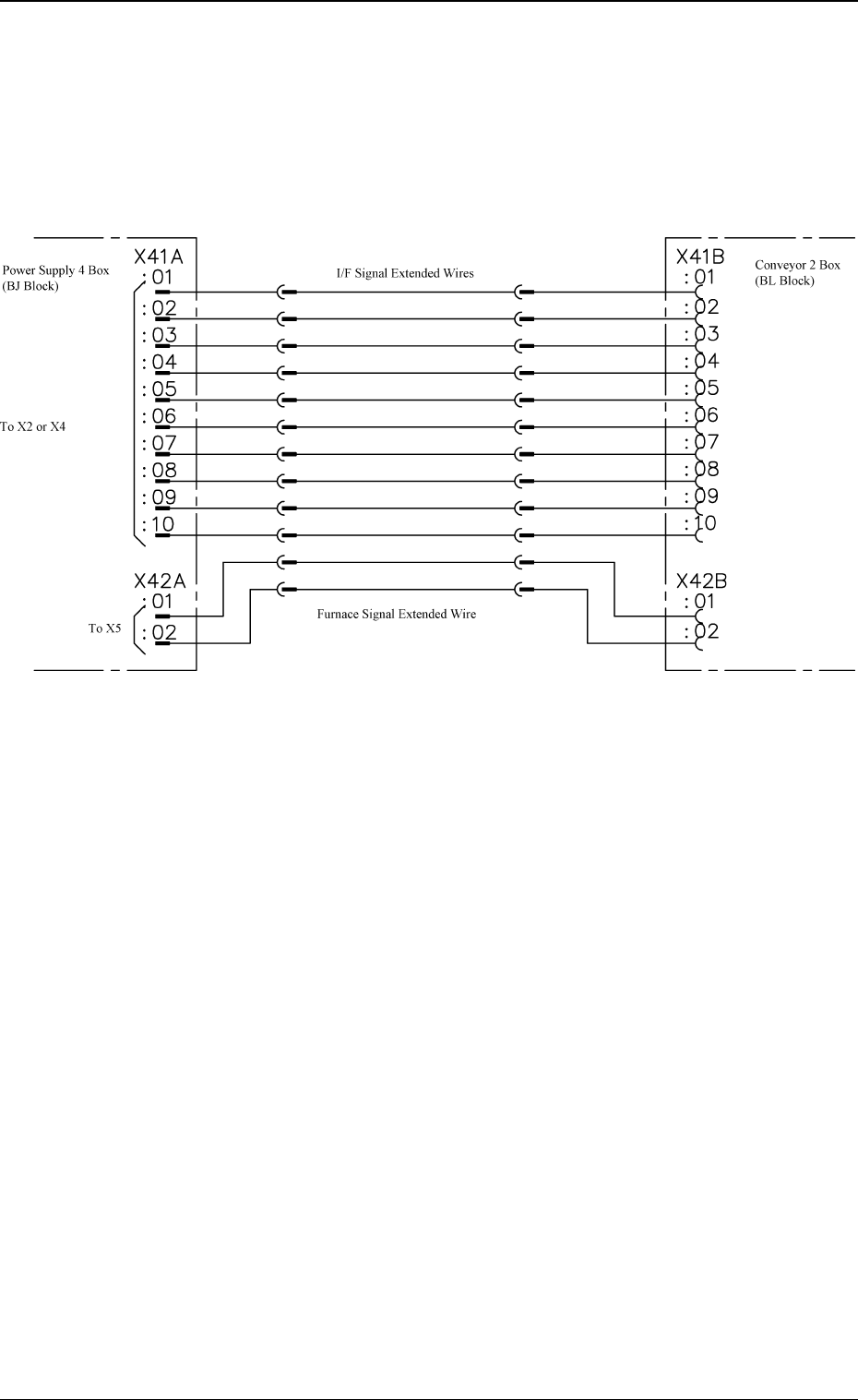

0005-002-(M741W-UC-1103) 5-79 Tg0250-PM-MD

Input/Output Machine Signal Circuit

2. Electrical Circuit Diagram

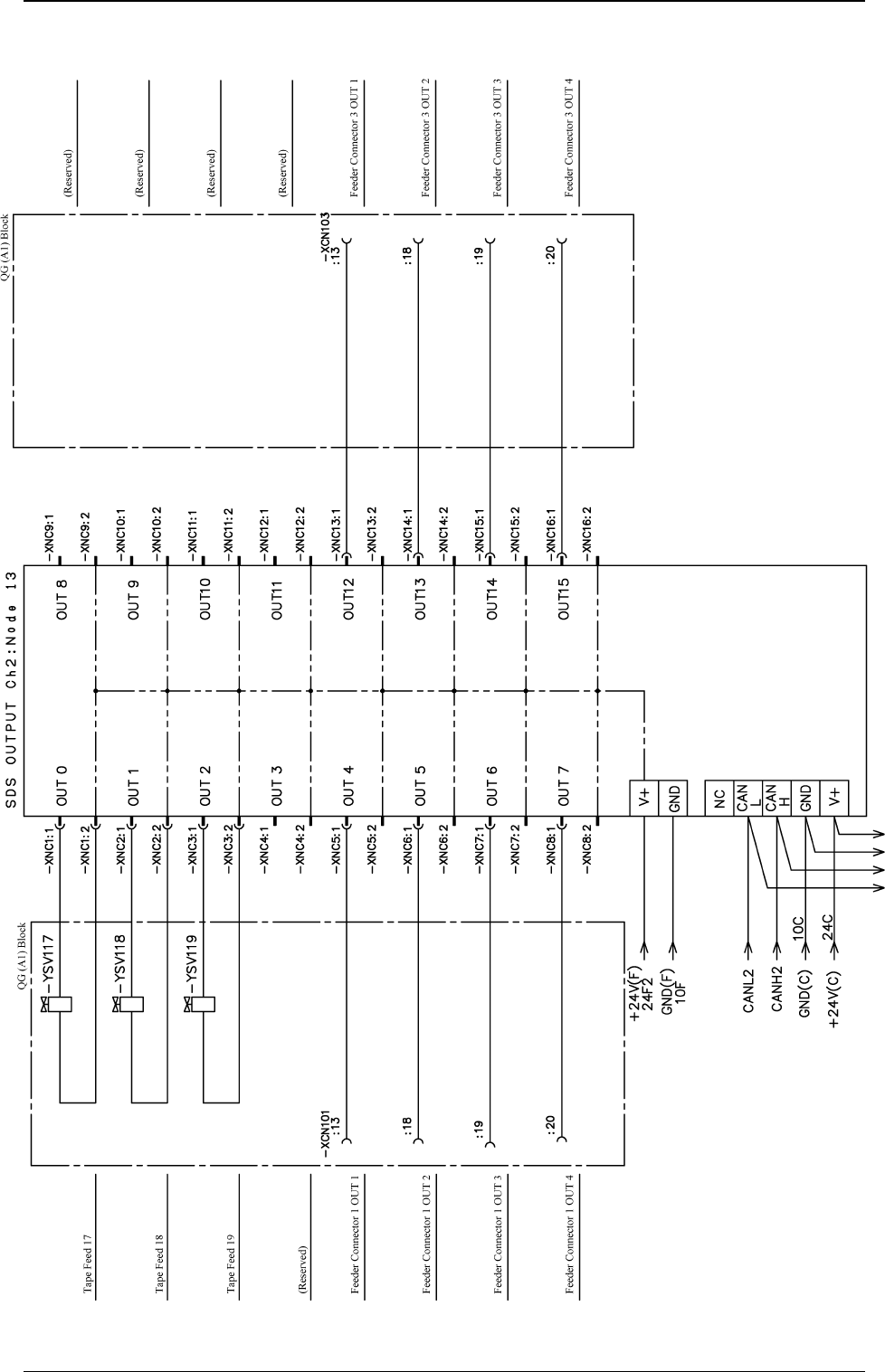

9910-001-(M741W-QG-1101) 5-80 Tg0250-PM-MD

Feeder Base R (A) SDS 1

2. Electrical Circuit Diagram

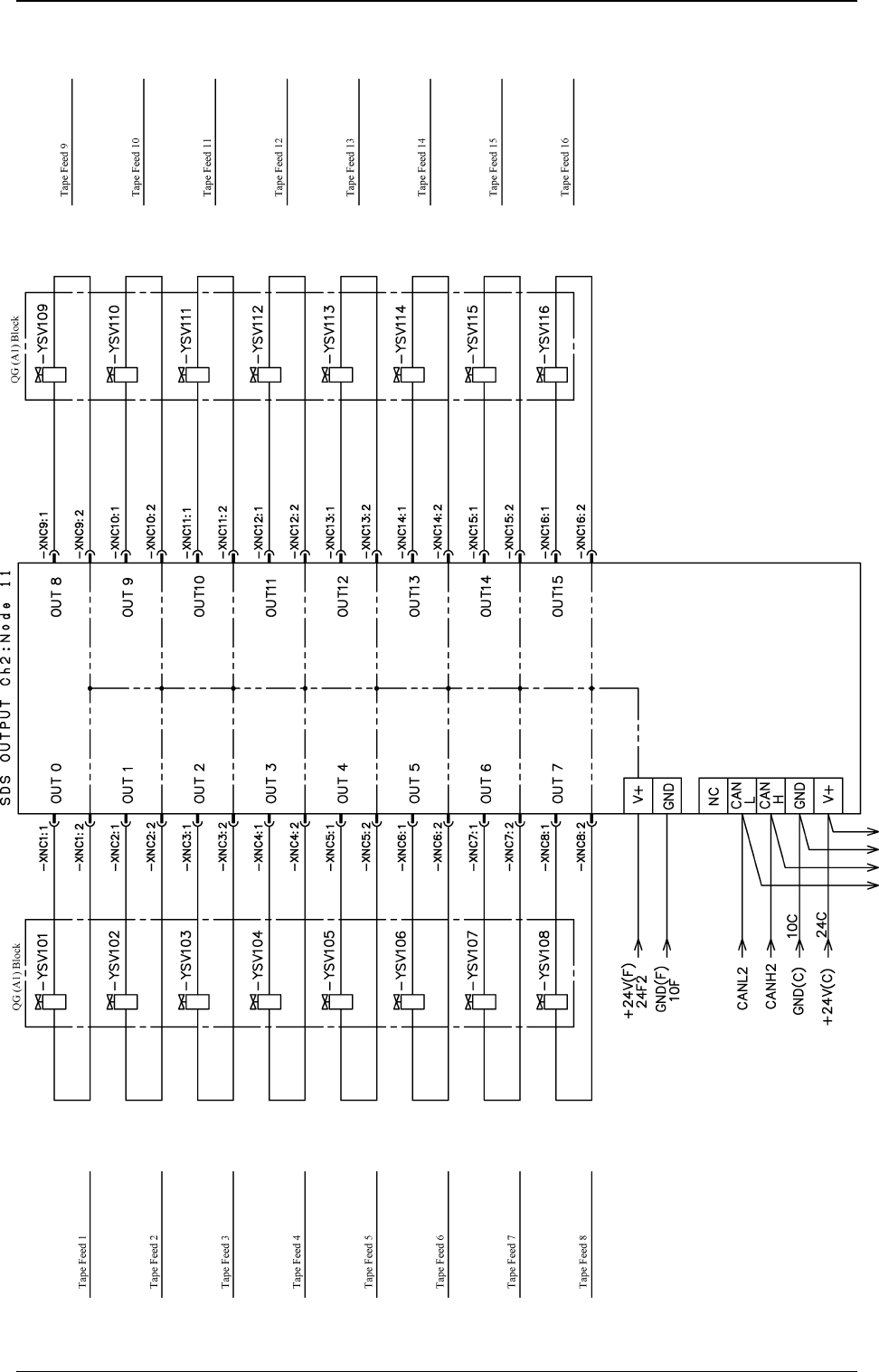

0005-002-(M741W-QG-1102) 5-81 Tg0250-PM-MD

Feeder Base R (A) SDS 2

Note: This figure is for TIM-5100 A side (rear side) installation.
