2. Electrical Circuit Diagram 9910-001-(M741W-B---1 103) 5-16 Tg0250-PM-MD Power Supply Circuit Diagram (3)

2. Electrical Circuit Diagram

9910-001-(M741W-B---1102) 5-15 Tg0250-PM-MD

Power Supply Circuit Diagram (2)

2. Electrical Circuit Diagram

9910-001-(M741W-B---1103) 5-16 Tg0250-PM-MD

Power Supply Circuit Diagram (3)

2. Electrical Circuit Diagram

0103-002A(M741W-B--1104) 5-17 Tg0250-PM-MD

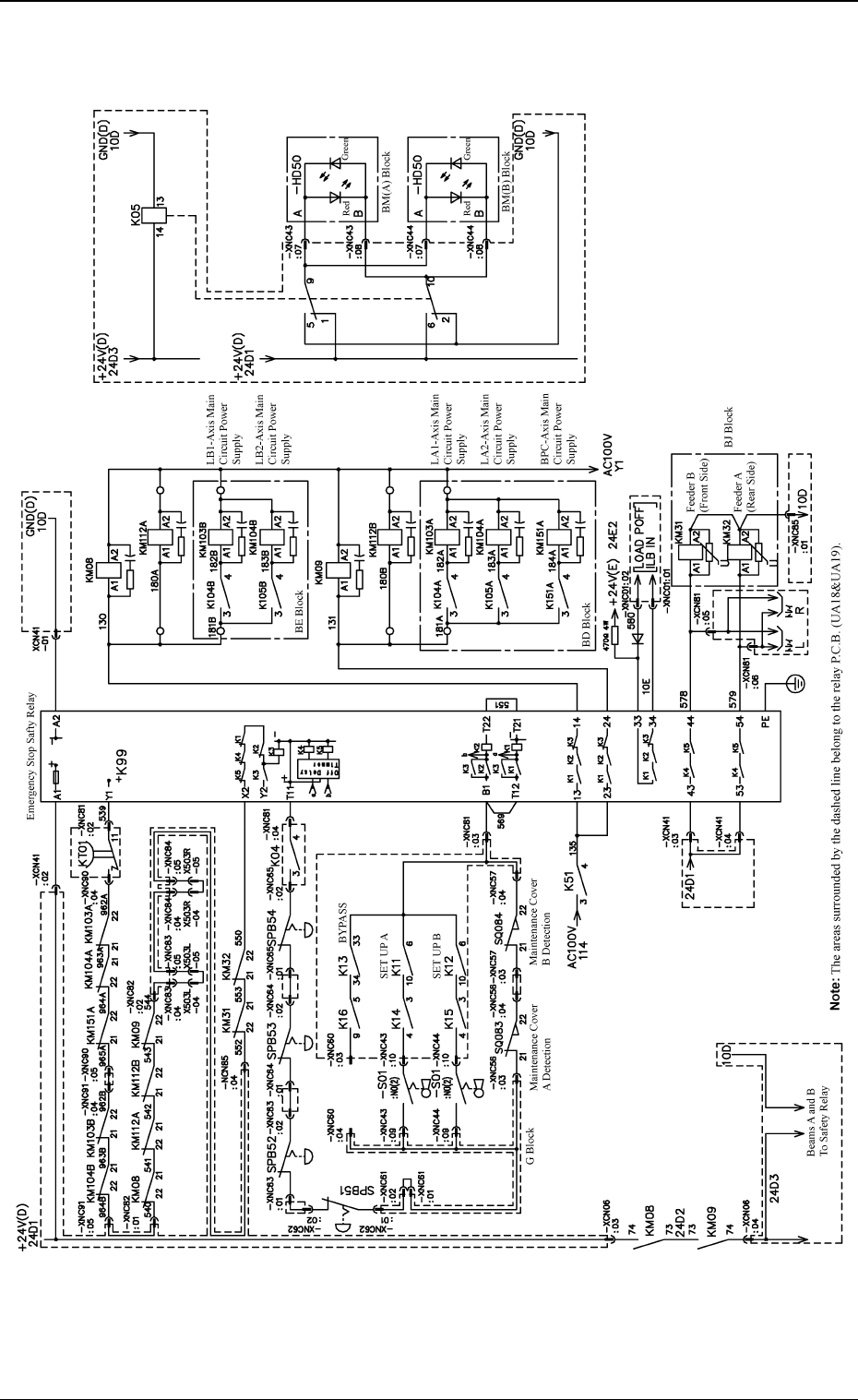

Emergency Stop Safety Relay Circuit
