2. Electrical Circuit Diagram 9910-001-(M741W-BE-1 101) 5-51 Tg0245-PM-MD XB/YB Control Board 2 - 1

2. Electrical Circuit Diagram

9910-001-(M741W-BD-1103) 5-50 Tg0250-PM-MD

BPC Control Board 3-1

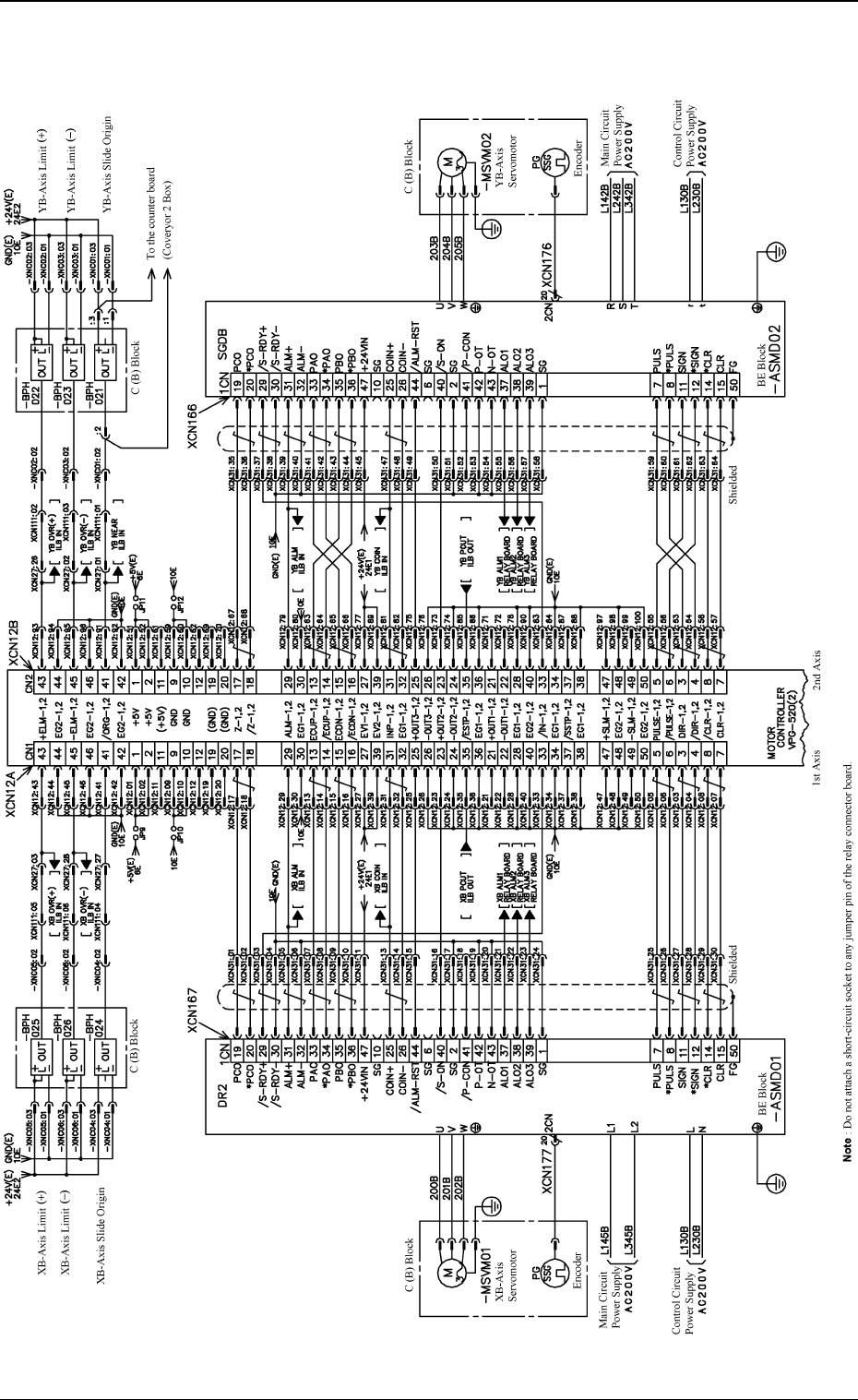

2. Electrical Circuit Diagram

9910-001-(M741W-BE-1101) 5-51 Tg0245-PM-MD

XB/YB Control Board 2-1

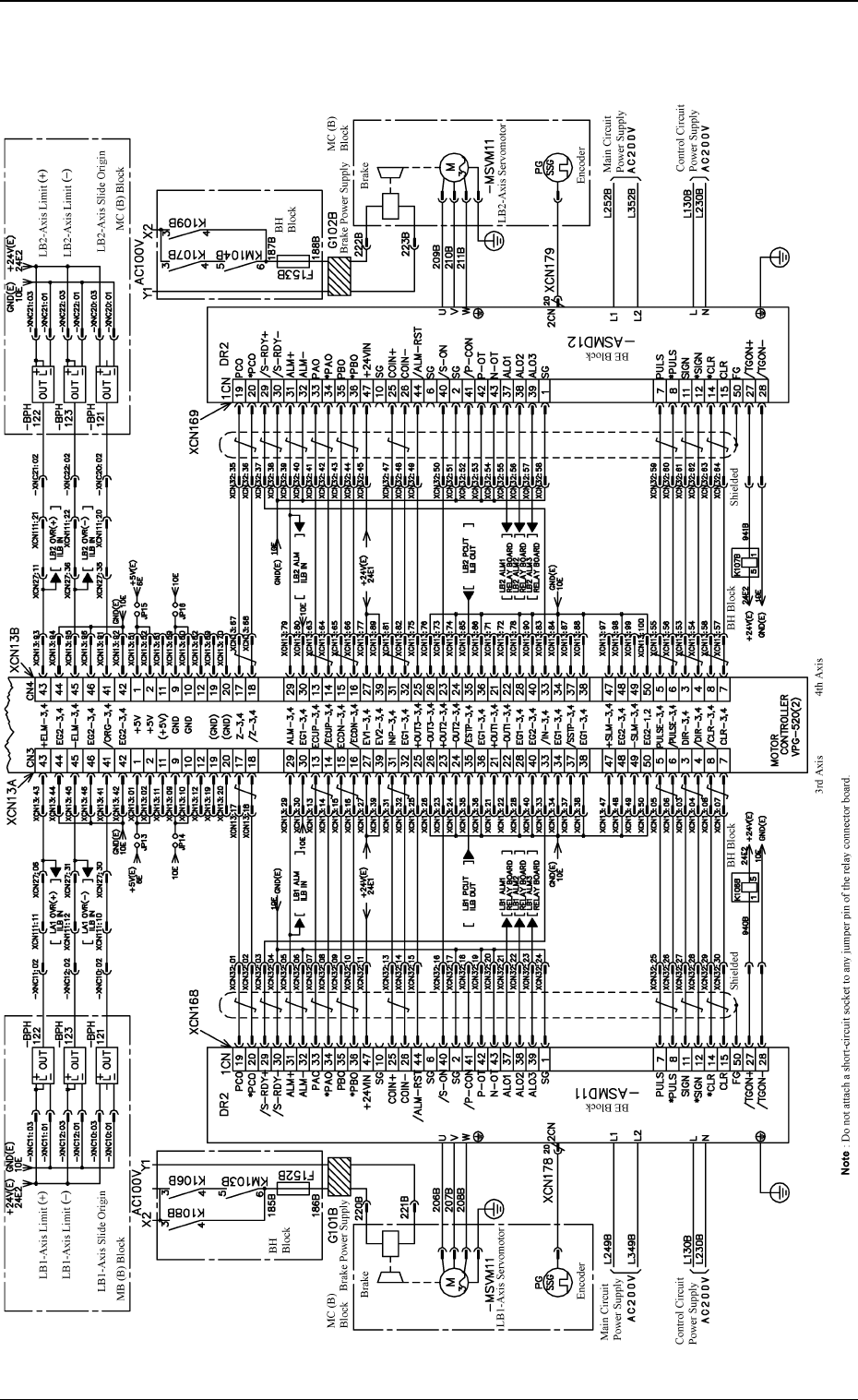

2. Electrical Circuit Diagram

9910-001-(M741W-BE-1102) 5-52 Tg0250-PM-MD

LB1/LB2 Control Board 2-2
