Section 4
Air Piping Diagram
9910-001 4-1 Tg0250-PM-MD

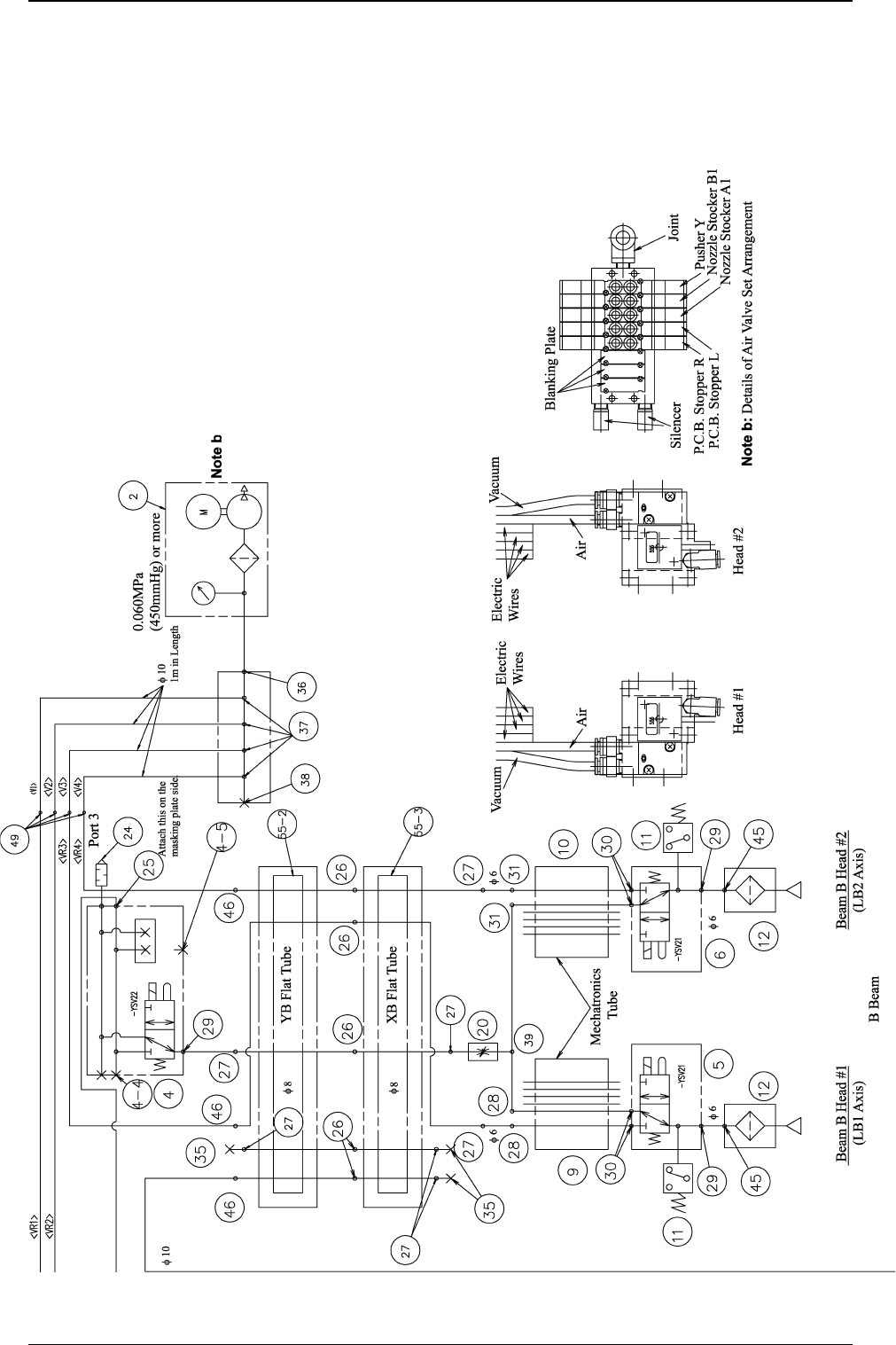

Section 4 Air Piping Diagram
9910-001-(M741X-A--1101) 4-2 Tg0250-PM-MD
Main Body Section
A
BD
C
NNameQ't
28 Elbow 4
29 Elbow 8
30 Union 8
31 Union 7
32 Union Y 3
35 Plug 7
36 Bushing 2
37 Quick Universal 8
38 Plug 2
39 Branch 2
40 Socket 2
41 Union 1
42 Elbow 2
43 Union 7
44 Plug 1
45 Elbow 4
46 Union 6
47 Bushing 1
48 Volute Nipple 1
49 Union 7
50 Elbow 2
51 Speed Controller 4
52 Elbow 1
53 Cheese Union 1
54 Plug 7
55 Flat Tube 1
55
Flat Tube 1
55
Flat Tube 1
55
Flat Tube 2
60 Air Cylinder 2
61 Solenoid Valve 2
62 Speed Controller 4
63 Silencer 4
64 Union 4
NNameQ't
1 Combination Unit 1
2 Vacuum Pump 1
3 Regulator 1
4 Air Valve Set 2
4-
Plug 2
4-
Plug 2
5Manifold 2
6Manifold 2
7 Solenoid Valve 2
8 Air Valve Set 1
8-
Manifold 1
8-
Solenoid Valve 5
8-
Blanking Plate 3
8-
Silencer 2
8-
Plug 3
8-
Elbow 1
9 Mechatronics Tube 2
10 Mechatronics Tube 2
11 Pressure Switch 4
12 Filter 4
13 Silencer 4
14 Regulator 1
15 Air Cylinder 2
16 Air Cylinder 1
17 Air Cylinder 1
18 Air Cylinder 2
19 Air Cylinder 4
20 Throttle Valve 3
21 Speed Controller 8
22 Union Y 8
23 T 1
24 Silencer 2
25 Union 4
26 Union 10
27 Union 14
Section 4 Air Piping Diagram
9910-001-(M741X-A--1101) 4-3 Tg0250-PM-MD
Main Body Section (Detail A)
Note c: The vaccum pump is installed to the right or left side of the main body.
Note c
