2. Electrical Circuit Diagram 9910-001-(M741WBB--1 119) 5-38 Tg0250-PM-MD SDS OUT 7
2. Electrical Circuit Diagram
9910-001-(M741WBB--1118) 5-37 Tg0250-PM-MD
SDS OUT 6
2. Electrical Circuit Diagram
9910-001-(M741WBB--1119) 5-38 Tg0250-PM-MD
SDS OUT 7

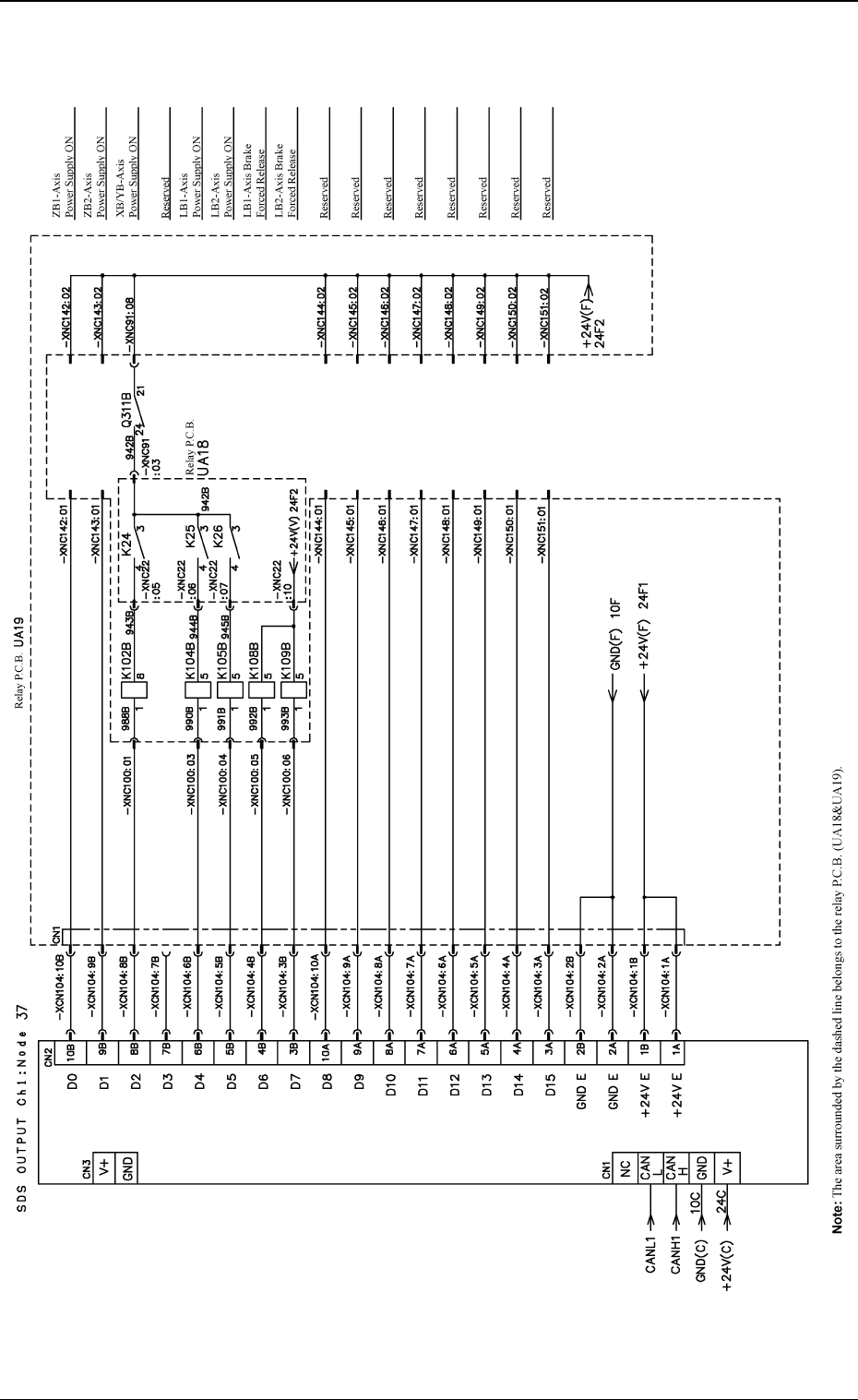

2. Electrical Circuit Diagram

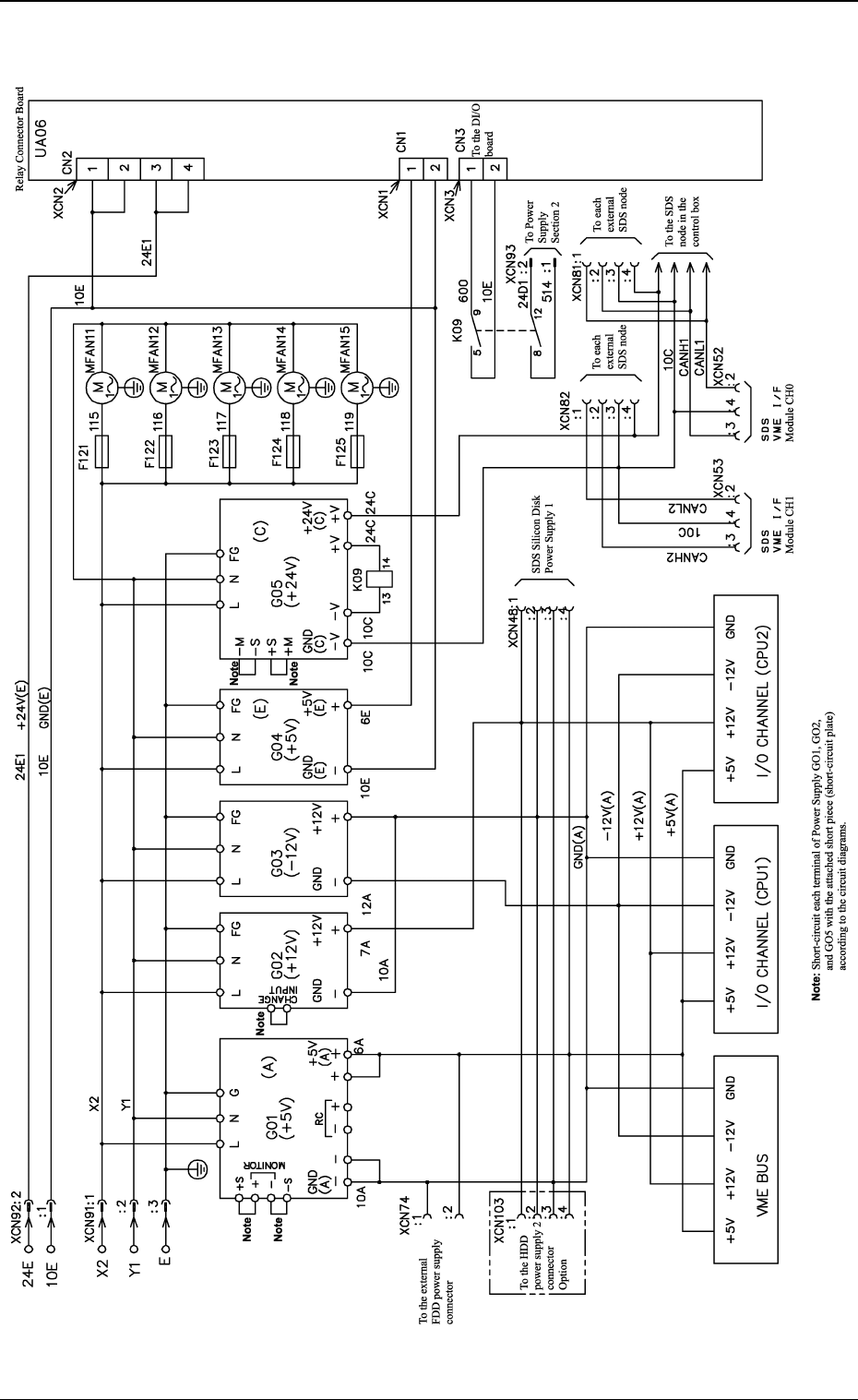

9910-001-(M741WBC--1101) 5-39 Tg0250-PM-MD
Control Box Power Supply Circuit
