Safety Precautions Safe-14 1OM-1610 4. Alert Labels The alert labels (described below) are used for this machine. Please read the instructions on each label carefully and check the contents, observing the actual object. …
Safety Precautions
Safe-13
1OM-1610
Alert Indications described as " " (continuted)
Alert Description Related Items
This setup operation must be performed with your hands inserted
inside the machine.
Open the transparent cover(door type) and perform the setup
operation with the load power supply to the servomotor being
turned "OFF".
"5.1.2" in
"Chapter 4 (Vol. 2)"
In this teaching operation, the cover of the light source device
need not be opened.
Do not open the cover of the light source device.
The cover of the light source device, when opened, exposes users to the
high voltage components and may result in electrical shocks.
"6.5.15" in
"Chapter 4 (Vol. 2)"
Be sure to wear gloves during cleaning. Otherwise, you may cut your
hands on the edges of the lighting hood.
"3.3.3" in
"Chapter 1 (Vol. 4)"
•
Even when the power breaker is set to "OFF", the primary line
is powered, making it possible to cause an electric shock.
Be sure to completely stop the power supply to the machine before
maintenance work.
"1.1" in
"Chapter 1 (Vol. 4)"
•
Residual voltages may remain behind for a few minutes in the
internal devices of the machine after power interception.
Before performing maintenance work, wait until the charge lamps of
the DC power supply and the servoamplier go "OFF" in 10 minutes
or more after the power breaker is set to "OFF".
"1.1" in
"Chapter 1 (Vol. 4)"
When
theatring
iscut,takecarenottogetinjuredbythe
commercially available cutter.
"3.3.6" in
"Chapter 1 (Vol. 4)"
Your hand might be cut at the edge of the linear guide in the
cleaning operaiton. Wear gloves.
"3.3.8" in
"Chapter 1 (Vol. 4)"
The light emitter of the linear measure sensor is made of glass.
If the light emitter happens to be damaged, be sure to suck up
the fragments with a vacuum cleaner, etc.
Do not collect the fragments with your bare hands to protect your
hands from injuries.
"4.5" in
"Chapter 1 (Vol. 4)"
CAUTION
0911-001
3. Alert Indications in Instruction Manual
Safety Precautions
Safe-14
1OM-1610
4. Alert Labels
The alert labels (described below) are used for this machine.
Please read the instructions on each label carefully and check the contents, observing the
actual object.
Be sure to follow the instructions for safety purposes.
These labels should be kept clean and easily legible at a far safe distance.
When a label has deteriorated and become illegible, contact our service department for
the replacement with a new one.
0911-001
4. Alert Labels
Safety Precautions
Safe-15
1OM-1610

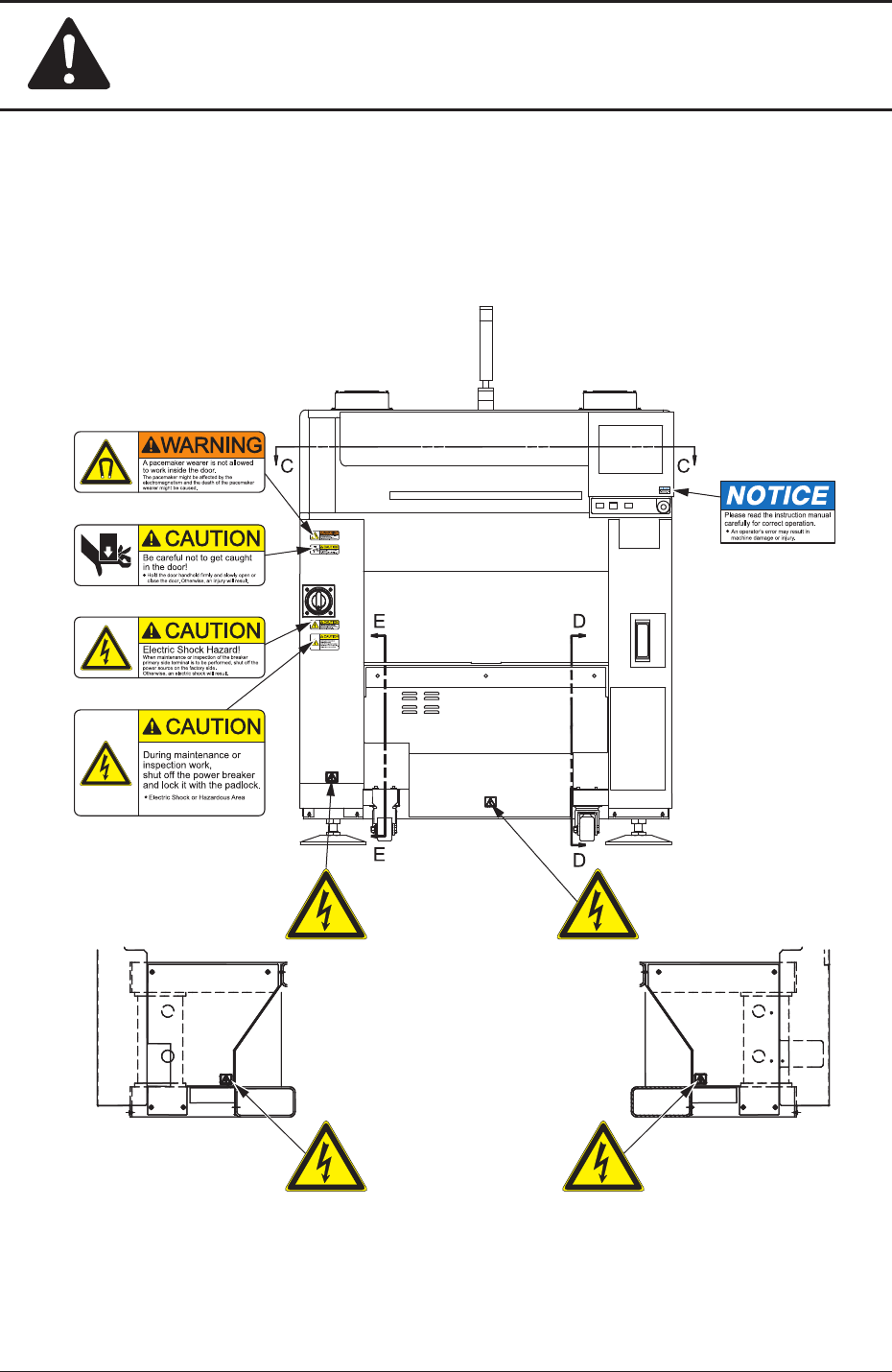

Location of Alert Labels
The alert labels are afxed on dangerous and caution-required areas.
Refer to "Alert Labels and Description" for details.
View D-DView E-E
(3)
(7)
(8)
(5)
(5) (5)
(5)
(21)
Front Side of Machine
(1)
F1X1
0911-001
4. Alert Labels
