5OM-1610 2-6 Sensor and Load Layout 091 1-001 Feeder Cart Layout Y6908 Cutter Feeder Base B6302 M63 B6904,B6906 Symbol Name Symbol Name M63 Cutter Axis Motor B6302 Cutter Origin (-) Y6908 Feeder Clamp B690 4 Feeder Clamp…
5OM-1610
2-5
Sensor and Load Layout
0911-001

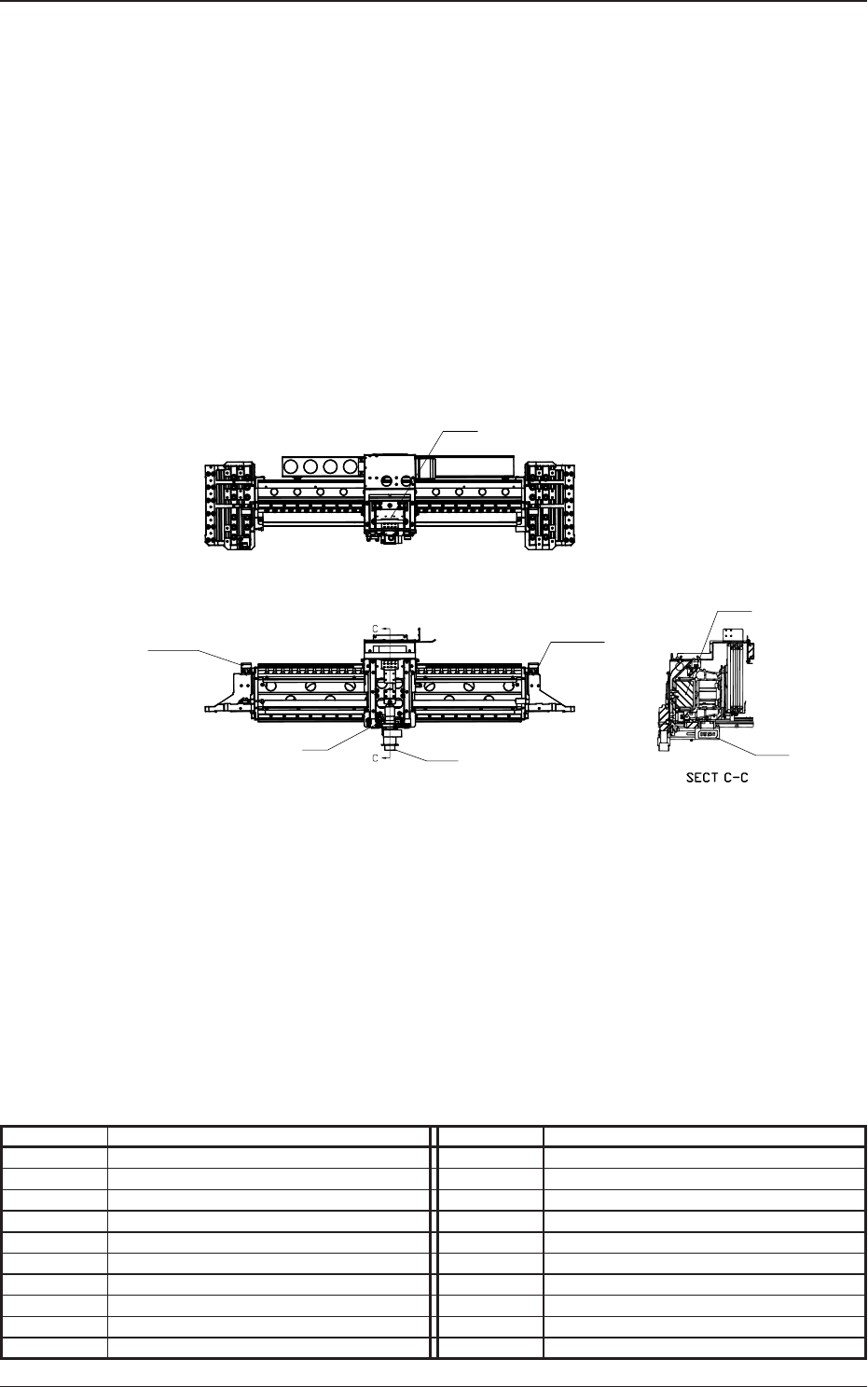

Beam X-Axis Layout
U21
B2101
B2102
B36
E39
U21
M21
Symbol Name Symbol Name
M21 X1-Axis Motor
U21 Linear Scale Head (Converter)
B2101 X-Axis Limit (+)
B2102 X-Axis Limit (-)
B36 PEC Recognition Camera
E
39 PEC Recognition Lighting
5OM-1610
2-6
Sensor and Load Layout
0911-001

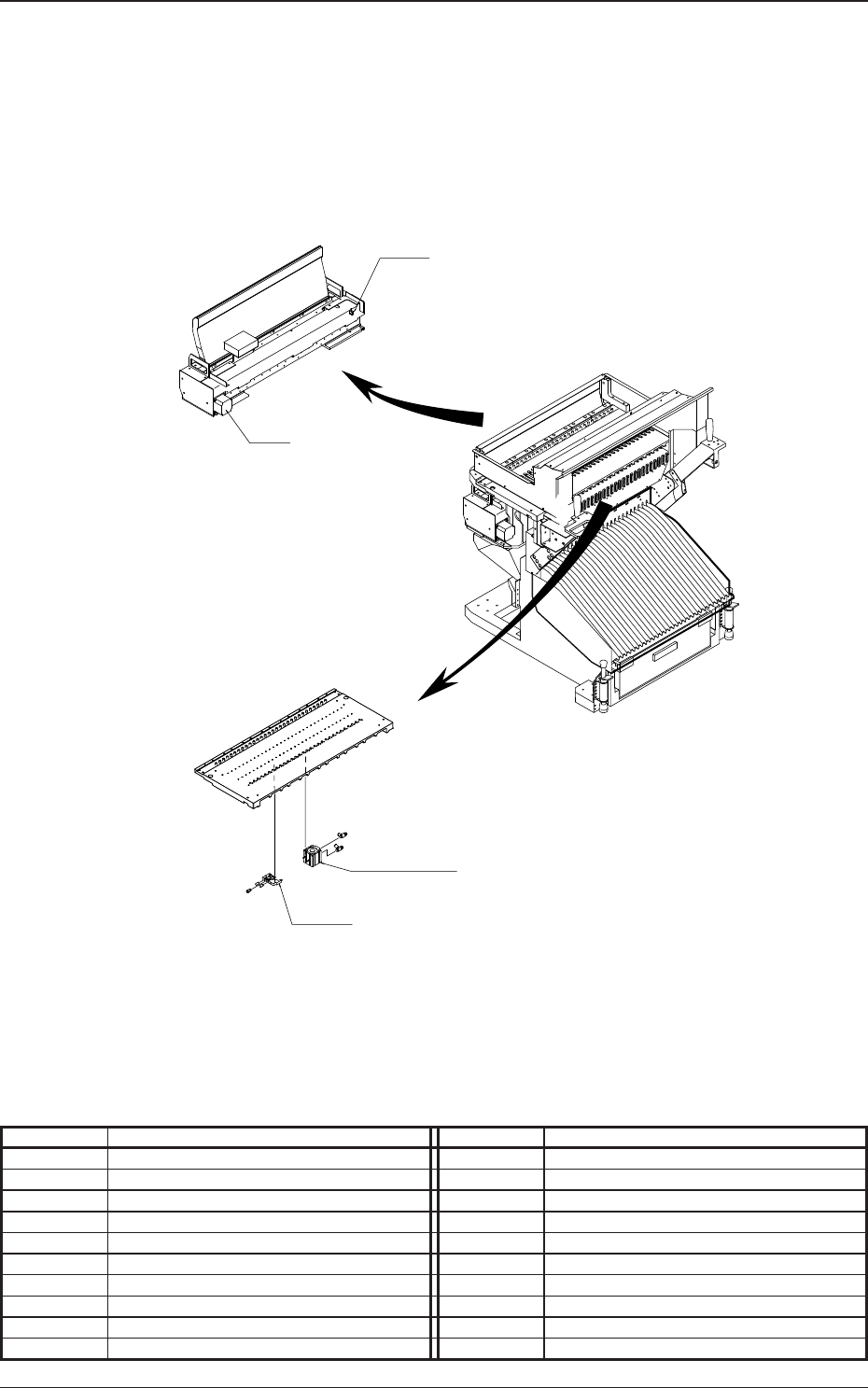

Feeder Cart Layout
Y6908
Cutter
Feeder Base
B6302
M63
B6904,B6906
Symbol Name Symbol Name
M63 Cutter Axis Motor
B6302 Cutter Origin (-)
Y6908 Feeder Clamp
B690
4 Feeder Clamp Lower Limit (Clamping)
B6906 Feeder Clamp Upper Limit (Unclamping)
5OM-1610
2-7
Sensor and Load Layout
0911-001

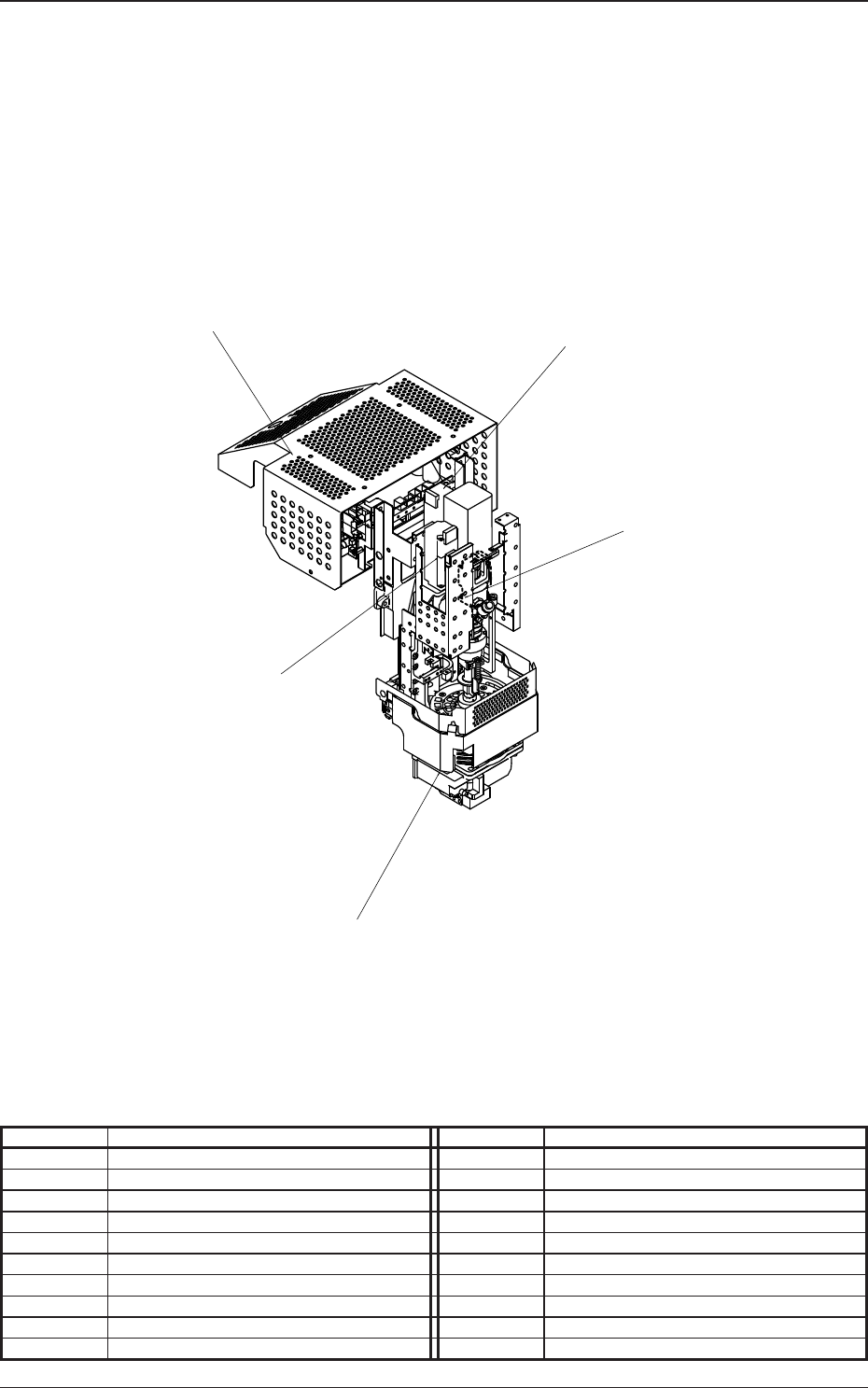

High Speed Head Section Layout (General View)
Electric Box Inside
Head Rotation Section
Head U/D Section
Nozzle U/D Section
Nozzle Selection Section
Symbol Name Symbol Name
