5OM-1610 2-19 Sensor and Load Layout 091 1-001 Locating Section Layout Symbol Name Symbol Name Y0632 Feeder Base 2 Ascending Y0633 Feeder Base 2 Descending Y0642 PCB Positioning Unit Drop Prevention Stopper 2 B0515 Pick-…
5OM-1610
2-18
Sensor and Load Layout
E194
E191
E193
E192
B61
0911-001

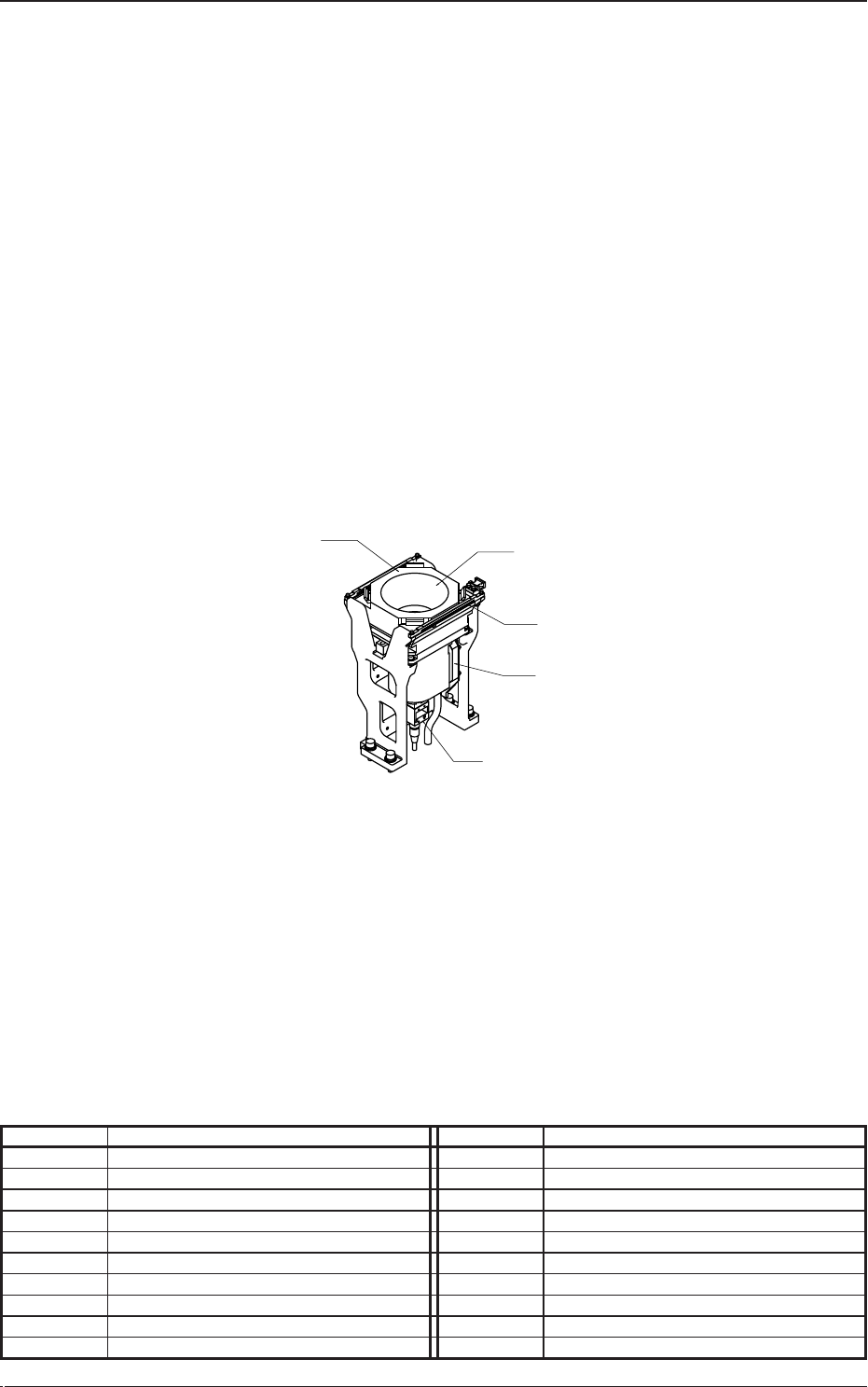

Component Recognition Camera Layout
Symbol Name Symbol Name
B61 Component Recognition Camera
E191 Component Recongnition Ring Lighting
E192 Component Recongnition Coaxial Lighting
E193 Standard Mark Lighting A
E194 Standard Mark Lighting B
5OM-1610
2-19
Sensor and Load Layout
0911-001

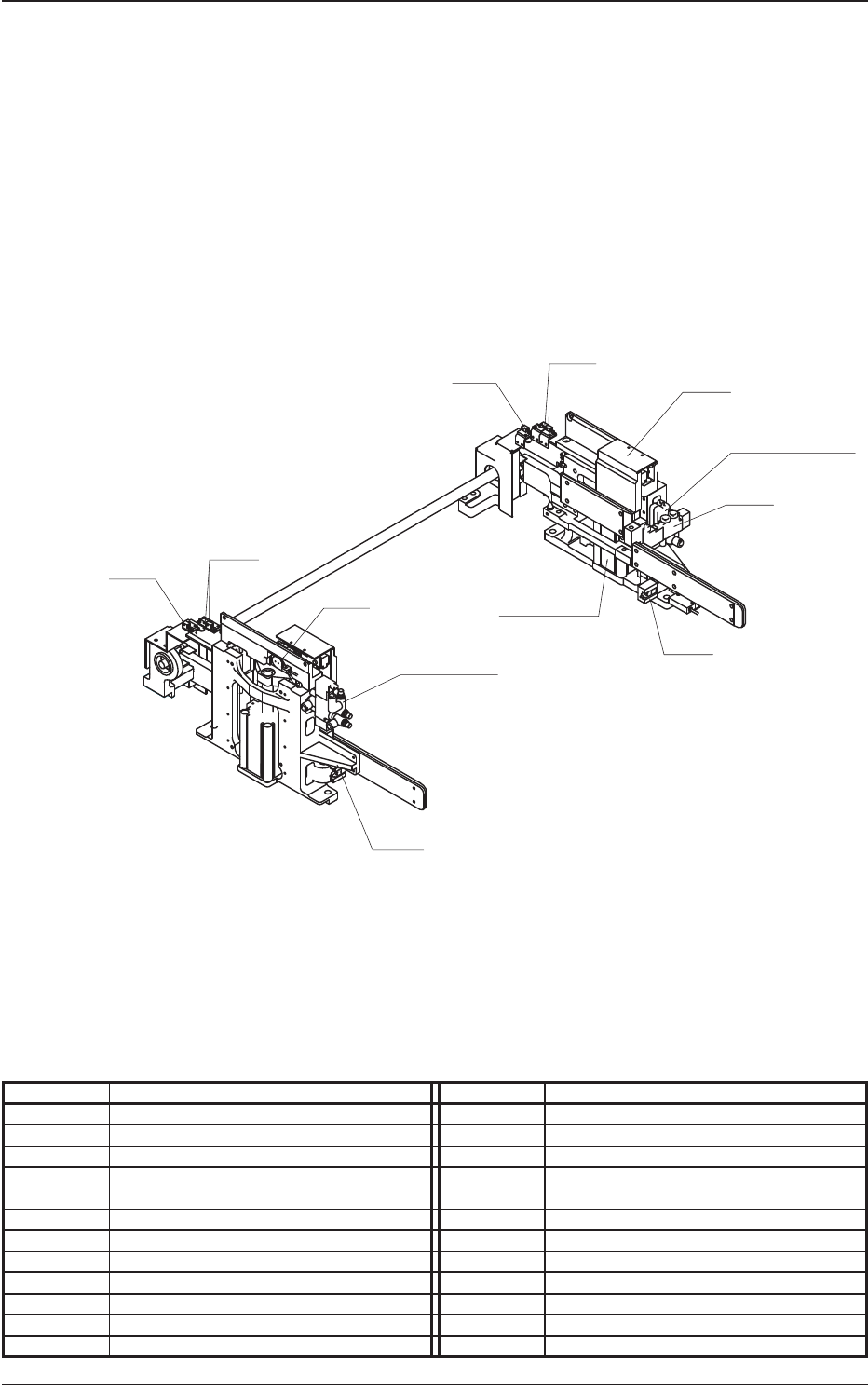

Locating Section Layout
Symbol Name Symbol Name
Y0632 Feeder Base 2 Ascending
Y0633 Feeder Base 2 Descending
Y0642 PCB Positioning Unit Drop Prevention Stopper 2
B0515 Pick-up Error Detection (Front)
B0521 Feeder Disengaged Latch Detection (Front)
B0515,0521Amp
Amplier
B0610 Feeder Base 2 Y Direction Positioning Check 1
B0611 Feeder Base 2 Y Direction Positioning Check 2
B0612
Positioning Unit Drop Prevention Lock Check 2 (L)
B0613
Positioning Unit Drop Prevention Lock Check 2 (R)
B0614 Cylinder Upper Limit Detection (Front)
B0615 Cylinder Lower Limit Detection (Front)
B0521
B0515
B0612
Y0632,Y0633
B0614,B0615
B0611
B0613
B0515,0521 Amp
Y0642
B0610
B0521
B0515
5OM-1610
2-20
Sensor and Load Layout
0911-001

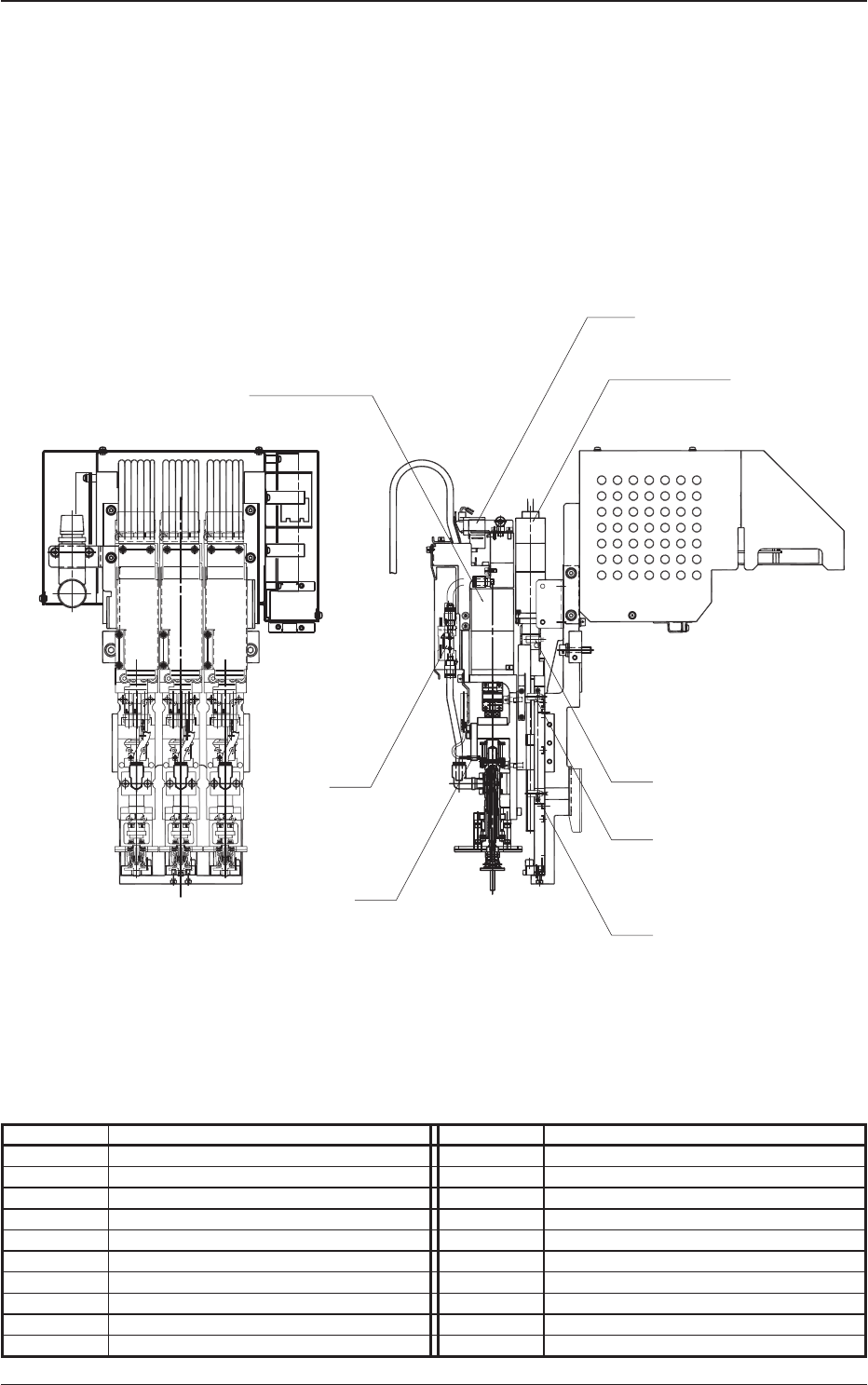

Multi Function Head Section Layout
Symbol Name Symbol Name
M141 Nozzle Z-Axis Motor B01 L-Axis 1 + Limit
M142 Nozzle L-Axis Motor B02 L-Axis 1 - Limit
Y1719 Vacuum Valve B04 L-Axis 1 Pass Line
Y1718 Vacuum Breaker B05 Excessive Pushing Detection
B07 Vacuum Sensor
Y1719
M142(1L,2L,3L)
M141(1Z,2Z,3Z)
B02
B04
B01
B05
NOZZLE1 NOZZLE2 NOZZLE3
B07
Y1718
