SMT Software Engineeri ng Group IMOperationsYAMAHAMOTORCO. ,LTD. MD OC-SOFT50033 1/30 PSC (Print S tability Control) –S yr inge T ype - Functi on Contents PSC (P rint Stability Control) –Syringe T …
SMT Software Engineering Group
IMOperationsYAMAHAMOTORCO.,LTD.
MDOC-SOFT50033
1/30
PSC (Print Stability Control) –Syringe Type- Function
Contents
PSC (Print Stability Control) –Syringe Type- Function ...............................................................................1
1. Introduction ..............................................................................................................................................2
2. Summary ..................................................................................................................................................2
3. Settings .....................................................................................................................................................3
3.1 Machine settings.................................................................................................................................3
3.1.1 Installation settings ......................................................................................................................3
3.1.2 Supply mode................................................................................................................................4
3.2 Board data...........................................................................................................................................5
4. Details.......................................................................................................................................................7
4.1 Operation while the Auto-running and the Rolling ............................................................................7
4.1.1 Interval mode...............................................................................................................................7
4.1.2 Feedback mode............................................................................................................................9
4.2 Other operations ...............................................................................................................................10
4.2.1 Solder empty warning function .................................................................................................10
4.2.2 PSC unit window....................................................................................................................... 11
4.2.3 Initial solder supply function.....................................................................................................12
4.2.4 Scanning rolling width function ................................................................................................14
4.2.5 The PSC action result output function.......................................................................................16
4.2.6 Warning the increasing print cycle time function ......................................................................17
5. Flow of production with PSC function...................................................................................................20
6. Limitations .............................................................................................................................................25
7. Appendix ................................................................................................................................................26
7.1 Summary of unit ...............................................................................................................................26
7.2 PSC settings......................................................................................................................................27
SMT Software Engineering Group
IMOperationsYAMAHAMOTORCO.,LTD.
MDOC-SOFT50033
2/30
1. Introduction
The target model and version are as follows.
Table1.1 Target model and target version
Item Object Remarks
Target model YS Series Printer (YSP)
Target version VGOS V3.10STD R1.000 or later
Y.FacT V1.10STD R1.000 or later
2. Summary
PSC （Print Stability Control） function is the function that the change of the solder rolling width on
the mask is suppressed within 1mm by scanning the rolling width and supplying the solder automatically,
and the print quality can be improved.

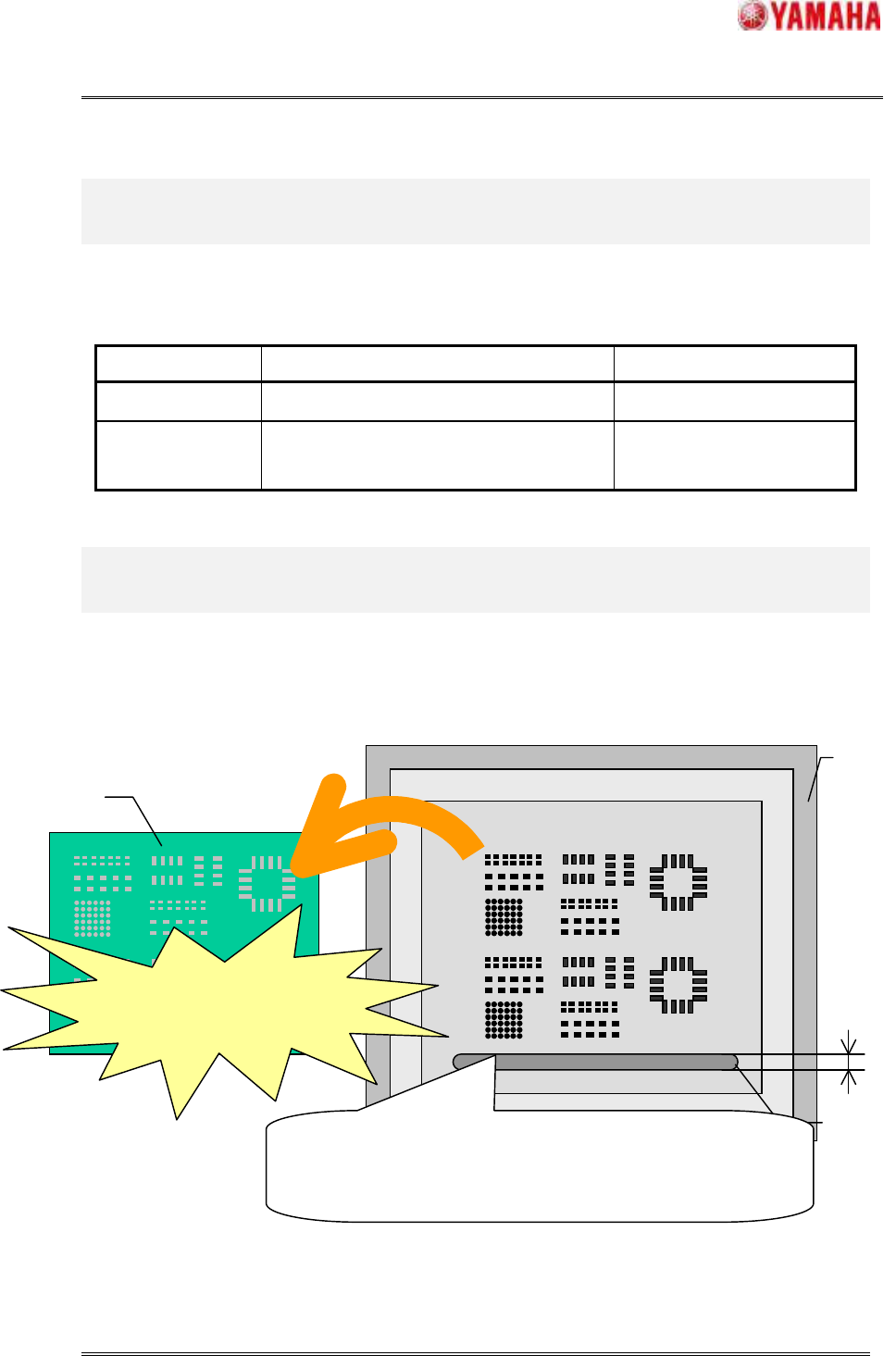

Fig.2.1.1 Purpose of PSC function
Mask
Solder
Rolling
Width
Board
PSC（
（（
（Scanning the rolling width, Auto-supplying the solder ）
））
）
⇒
⇒⇒
⇒ When the change of the rolling width is suppressed
within
the plus or minus 1mm, the solder filling amount is steady.
If the rolling width is unstable,
the solder filling amount to
board becomes unstable.
SMT Software Engineering Group
IMOperationsYAMAHAMOTORCO.,LTD.
MDOC-SOFT50033
3/30
And more, PSC function has following functions.
The function to warn the solder in syringe is empty. Please refer to “4.2.1 Solder empty warning
function”.
The function to automatically initially supply the solder on the mask. Please refer to “4.2.3 Initial
solder supply function”.
The function to display the PSC action result transition graph while the Auto-running. Please refer
to “4.2.5 PSC action result output function”.
3. Settings
The settings used to this function are as follows.
3.1 Machine settings
3.1.1 Installation settings
In the window of [Machine] – [Setting] – [Machine Information] – [Installation Setting], please set
the “Syringe Type” in “PSC (Print Stability Control)”. Refer to “Fig.3.1.1.1”.
NOTE: When this setting is changed, please save it and reboot the machine.

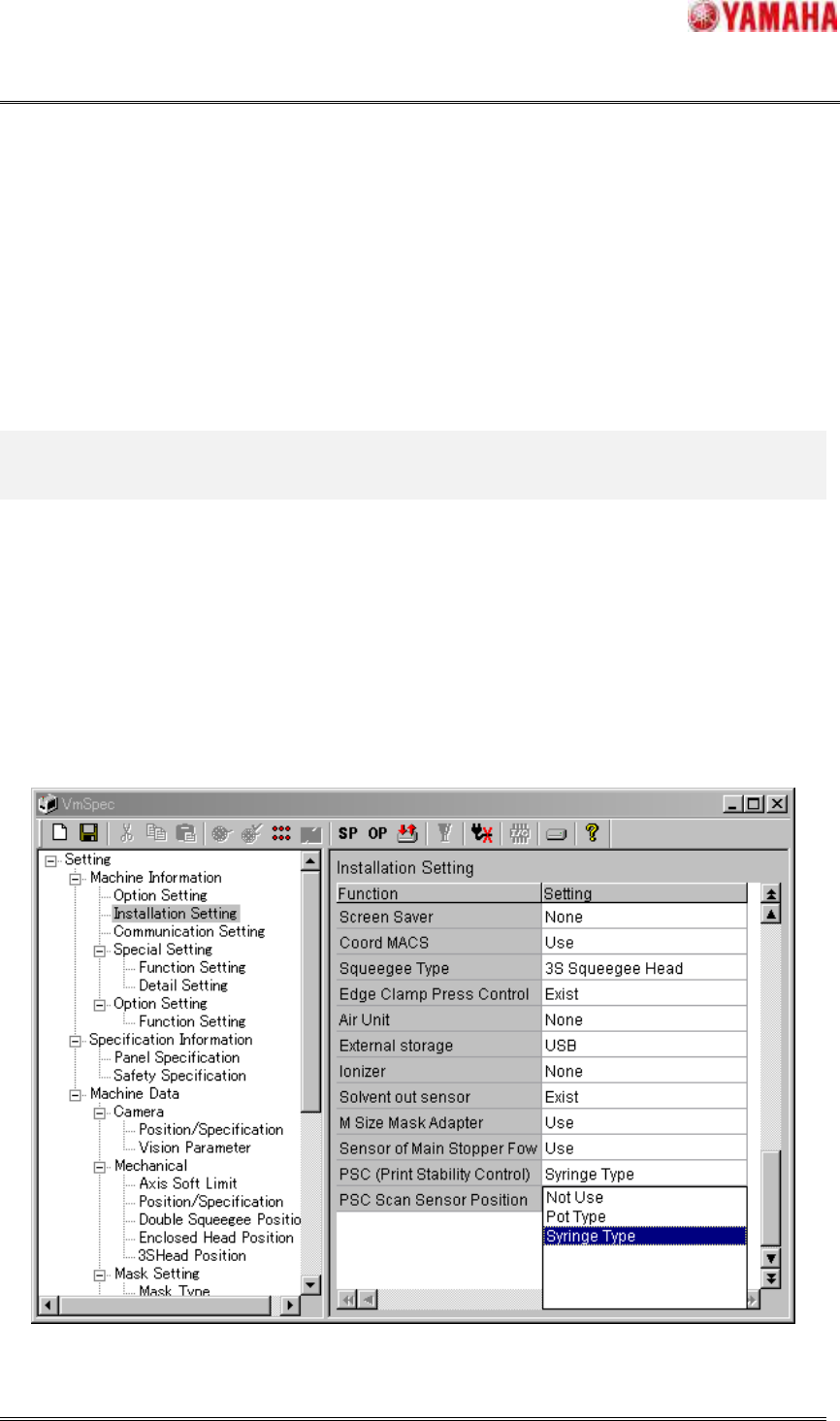

Fig.3.1.1.1 Installation setting
