Table7.2.2 Parameters of PSC common setting
Item Initial Input range Content
Supply Mode Interval
Interval/
Feedback
The supply mode is set by this parameter.
Please refer to "4. Details" for details.
Supply Nozzle Offset X (mm) 0.000
-999.999～
999.999
This is supply nozzle mounted offset of X direction
from squeegee center to supply nozzle. Please set an
initial value usually.
Supply Nozzle Offset Y (mm) 59.000
-999.999～
999.999
This is supply nozzle mounted offset of Y direction
from the center of the SR-axis rotation to supply
nozzle. Please set an initial value usually.
Supply Nozzle Diameter (mm) 4.000
0.000～99.999
This parameter is diameter of supply nozzle. This
parameter is used to decide the supply time.
Supply Start Timer (msec) 600
0～9999
This is the time from beginning to blow the syringe to
beginning the FX-axis movement.
Supply Finish Timer (msec) 300
0～9999
This is the time from stopping blowing the syringe to
beginning to cut the supplying solders.
FX-axis Supply Speed
(mm/sec)
100
0～999
This is the movement speed of the FX-axis in
supplying the solders.
SZ-axis Supply Pos. (mm) 0.000
-99.999～
99.999
This is the height of the SZ-axis in supplying the
solders. Please set an initial value usually.
SR-axis Supply Pos. (deg) 0.000
0.000～
180.000
This is the angle of the SR-axis in supplying the
solders. Please set an initial value usually.
SMT Software Engineering Group
IMOperationsYAMAHAMOTORCO.,LTD.
MDOC-SOFT50033
29/30

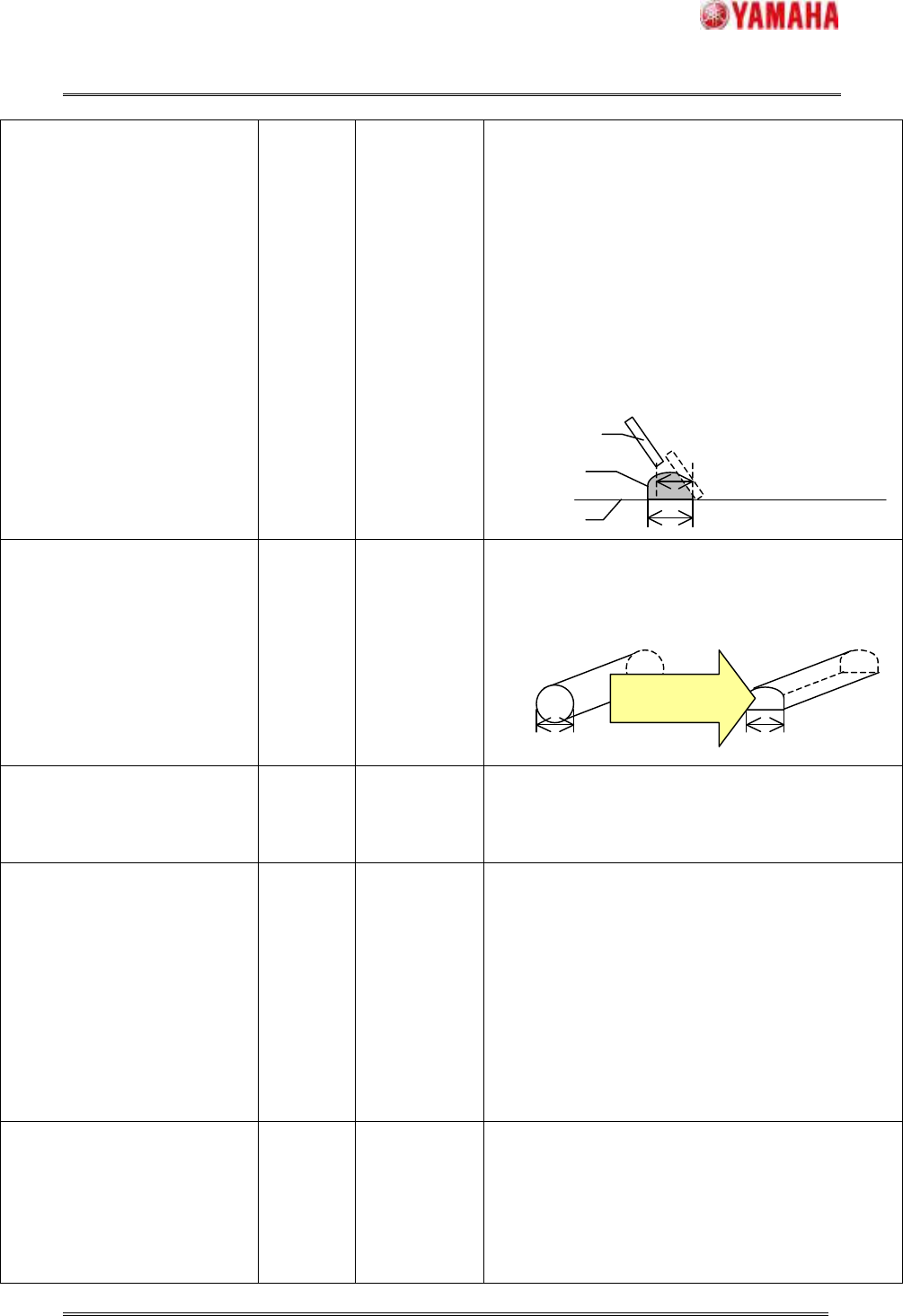

Sqg. Up Pos. Rate (%) 75
0～100
This parameter is percentage of the Y direction position
of squeegee rise after the print end. This is the
parameter for keeping the rolling shape even.
NOTE:
If this is input “0”, the squeegee rises at the position
of the print end. And if this is input “100”, the
squeegee rises to the position in which only "Target
Rolling Width (mm)" was offset from the squeegee
position after the print end.
Rolling Shape Rate (%) 70
0～100
When the amount of the solder supply is calculated,
this parameter is percentage of the rolling sectional area
from true circle.
Print Stability Rolling Width
(mm)
1.000
0.000～99.999
This parameter is the control range of PSC function
about the rolling width. This is the decreasing width
from “Target Rolling Width (mm)” of board data.
Max Rolling Width (mm) 20.000
0.000～99.999
This is an input the maximum value of "Target Rolling
Width (mm)" of the board data. This parameter is
disabled.
NOTE:
If the rolling width exceeds this parameter, the
rolling solder is adhered to all aspects of the
squeegee and might not be able to be formed even
shape.
Min Rolling Width (mm) 10.000
0.000～99.999
This is an input the minimum value of "Target Rolling
Width (mm)" of the board data. This parameter is
disabled.
NOTE: If the rolling width falls bellow this
parameter, the rolling solder rises with the squeegee
Target Rolling Width
(Target Rolling Width *
Sqg. Up Pos. Rate (%))
Squeegee
Solder
Mask
Rolling Width Rolling Width
Rolling Shape
Rate (%)
SMT Software Engineering Group
IMOperationsYAMAHAMOTORCO.,LTD.
MDOC-SOFT50033
30/30
and might not be able to be printed correctly.
SY-axis Scan Speed (mm/sec) 80
0～999
This is the movement speed of the SY-axis in scanning
the rolling width.
SZ-axis Scan Pos. (mm) 0.000
-99.999～
99.999
This is the height of the SZ-axis in scanning the rolling
width. Please set an initial value usually.
SR-axis Scan Pos. (deg) 0.000
0.000～
180.000
This is the angle of the SR-axis in scanning the rolling
width. Please set an initial value usually.
Rear Scan Sensor Offset (mm) -23.200
-999.999～
0.000
This parameter is the solder scan sensor mounted offset
of Y direction from the center of the SR-axis rotation to
the solder scan sensor. Please set an initial value
usually.
Rear Scan Width Correct (mm) 1.000
0.000～99.999
This parameter is the correction value that is added to
the scanning result of the rolling width.
Table7.2.3 Parameters of PSC syringe setting
Item Initial Input range Content
Min Supply Timer (msec) 1000
0～999999
This is minimum time that is controllable when
supplying solder.
Supply Retry Timer (msec) 3000
0～999999
This parameter is the time that can be supplied after the
solder empty warning. For more details, please refer to
“4.2.1 Solder empty warning” section.
Supply Wait Timer (msec) 100
0～1000
This is the wait timer from beginning to blow the
syringe to beginning to press the solder from the nozzle
point.
