SMT Software Engineering Group
IMOperationsYAMAHAMOTORCO.,LTD.
MDOC-SOFT50033
9/30

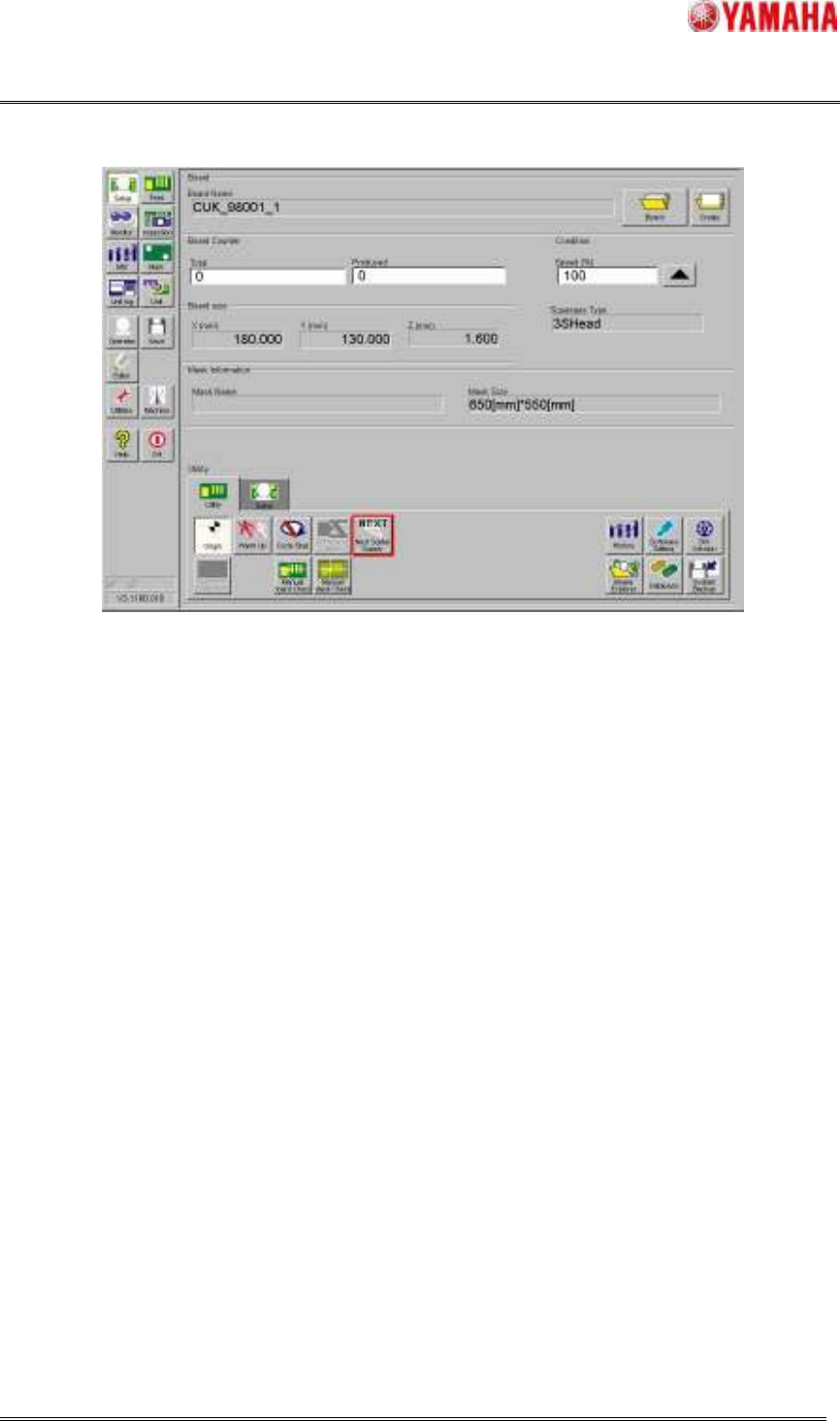

Fig.4.1.1.2 [Setup] - [Utility] “Next Solder Supply” button
4.1.2 Feedback mode
The “Feedback” mode is the mode that keeps the rolling width constant by scanning the rolling width
on the mask and automatically supplying the amount of solder that decreased from "Target Rolling Width
(mm)" of the board data. The amount of supplying solder is calculated as the necessary volume to keep
"Target Rolling Width (mm)" automatically and the supply time is converted from it.
When either of the following conditions is satisfied, the solder supply action in this mode is executed
while the Auto-running and the Rolling action. The printing time doesn't increase so much while the
Auto-running because the solder supply action is executed at the same time as the board transfer action,
the mark recognition processing and so on.
Condition1 When the supply time calculated by scanning result of the rolling width exceeds the
“Min Supply Time (msec)” of the machine data and the printing in the forward
direction is finished.
Condition2 When the scanning result of rolling width decreased more than 1 mm from "Target
Rolling Width (mm)" of board data and the printing in the forward direction is
finished.
SMT Software Engineering Group
IMOperationsYAMAHAMOTORCO.,LTD.
MDOC-SOFT50033
10/30
4.2 Other operations
4.2.1 Solder empty warning function
This function is the function that the operator is notified to exchange an old syringe to a new syringe
when the “Solder empty sensor” has detected the solder in the syringe decreasing. At this time,
“SOLDER” is displayed in machine’s status area and the yellow light in the signal tower is blinking.
Fig.4.2.1.1 Status area display of decreased solder in a syringe
Please prepare the new syringe while the warning is displayed, because the Auto-running can be
continued until the supply unit supplies solder for the "Supply Retry Time (msec)" of the machine setting.
When the supplied time after displaying warning exceeds the “Supply Retry Time (msec)”, the
Auto-running is stopped after the printed board is transferred to the exit position and “Ea8392 SOLDER
EMPTY ERROR” is displayed. When “Ea8392 SOLDER EMPTY ERROR” is cleared, the solder supply
unit moves to the syringe change position and “Ea8393 PLEASE EXCHANGE THE SOLDER
CARTRIDGE” is displayed. Please exchange the syringe according to the message and start the
Auto-running again.
NOTE: If the syringe isn’t exchanged, “Ea8392 SOLDER EMPTY ERROR” is displayed again
and the Auto-running isn’t started.
Fig.4.2.1.2 Message of “Ea8392 SOLDER EMPTY ERROR”
SMT Software Engineering Group
IMOperationsYAMAHAMOTORCO.,LTD.
MDOC-SOFT50033
11/30
Fig.4.2.1.3 Message of “Ea8393 PLEASE EXCHANGE THE SOLDER CARTRIDGE.”
4.2.2 PSC unit window
In the chapter of “3.1.1 Installation settings”, when “Syringe Type” is selected, the window of [Unit] –
[PSC] is appeared.
In this [Unit] – [PSC] window, “Solder Supply”, “Solder Scan”, “Solder Press” and “Solder Cutter”
can be executed.
Fig.4.2.2.1 [Unit] - [PSC] window
