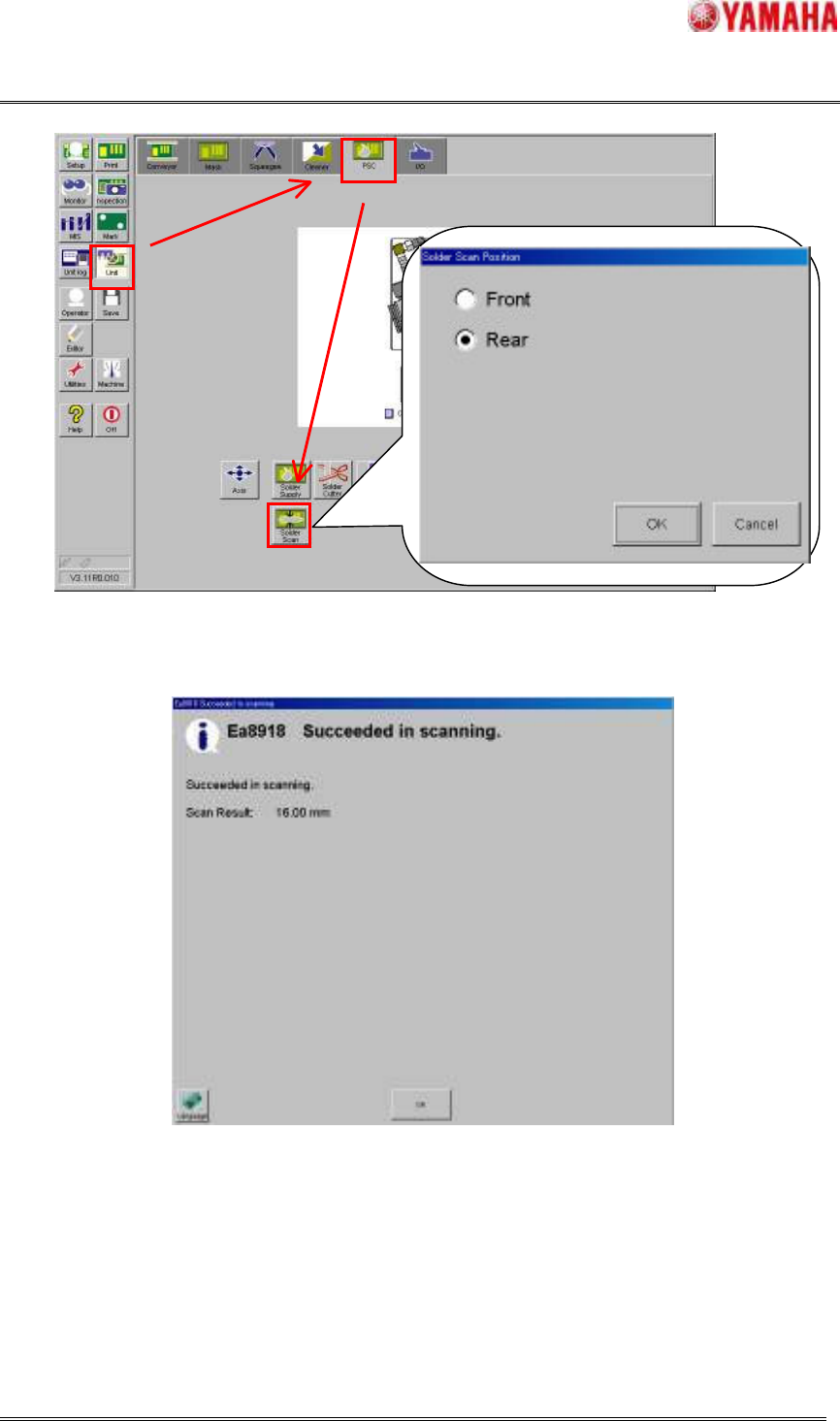

Fig.4.2.4.1 Action of scanning rolling width (select the location of scanning)
Fig.4.2.4.2 Message of “Ea8918 Succeeded in scanning”
SMT Software Engineering Group
IMOperationsYAMAHAMOTORCO.,LTD.
MDOC-SOFT50033
16/30
4.2.5 The PSC action result output function
The PSC action results (the solder supply time and scanning result of the rolling width) of each printed
board are output to history and are displayed to transition graph.
Output to the board log
The "Rolling Width (mm)" column and the "Solder Supply Amount (msec)" column are added newly in
existed Board Log in window of [MIS] – [Board Log] and the PSC action results of every printed board
are output here.
When the PSC action results are output in this board log, the CSV file can be output and can be used
for result analysis in offline.
Fig.4.2.5.1 [MIS] - [Board Log] window
Output the PSC transition graph
In the PSC transition graph with the rolling width on the y-axis and board number of sheets on the
x-axis, you can confirm the PSC action results visually. The red line is “Target Rolling Width (mm)” and
the blue line is the scanning results of the rolling width. And, in this graph, the flag of “PSC Sup.” is
shown when the solder is supplied. But the amount of solder supply cannot be confirmed here. If you
want to confirm it, please refer to [MIS] – [Board Log].
SMT Software Engineering Group
IMOperationsYAMAHAMOTORCO.,LTD.
MDOC-SOFT50033
17/30
Fig.4.2.5.2 [Monitor] - [PSC Transition] window
Output the inspection result analysis graph
When the solder is supplied, the filling amount is changed and may affect the inspection result. And
then, in inspection result analysis graph, the flag of “PSC Sup” is shown like the events of the "Cleaning"
and the "Solder Supply Stop". So, you can know a timing of the solder supply at one view.
4.2.6 Warning the increasing print cycle time function
From the limitations in the PSC unit installation position layout, the solder is supplied only after
printing in the forward direction. Therefore, when the “Round” printing is set and the Auto-running is
started from the forward direction, the solder supply action is executed even if on the way of the “Round”
printing and the print cycle time is increased. Please refer to “7.1 Summary of units”. Therefore, if the
"One Way / Round" in window of [Print] - [Squeegee] has been set to "Round", please set the “One Way /
Round” of other settings (filling correct after each cleaning and inspection feedback printing) to “Round”
too and start the Auto-running from the backward direction. And the solder is not supplied on the way of
“Round” printing and print cycle time is not increased much more.
The flag of “PSC Sup. ”
