SMT Software Engineering Group
IMOperationsYAMAHAMOTORCO.,LTD.
MDOC-SOFT50033
5/30
3.2 Board data
When you enable this function, the [PSC] tab is appeared in [Print] window.

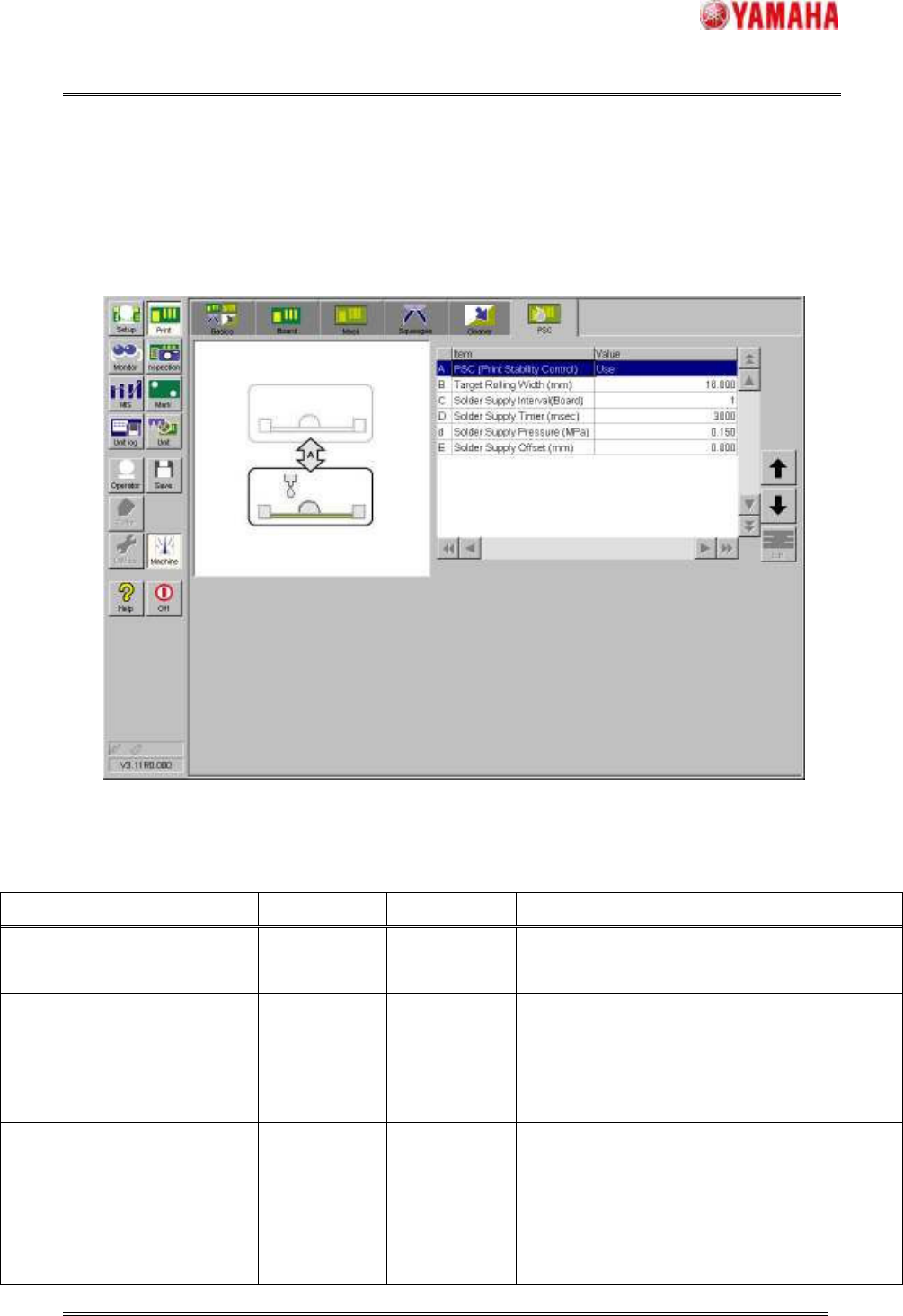

Fig.3.2.1 [Print] - [PSC] tab
Table3.2.2 Parameter of board data
Item Initial Input range Content
PSC (Print Stability Control) Not Use
Not Use / Use Please select the “Not Use” or “Use” of this
function in this board data.
Target Rolling Width (mm) 16.000
0.000～99.999
Please specify the target rolling width.
NOTE: When “Interval” mode is selected, this
parameter is only used to calculate the supply
time in executing solder initial supply.
Solder Supply Interval (Board) 50
0～9999
This is the solder supply interval while the Auto-
running. The solder is supplied only in time
specified as the following "Solder Supply Timer
(msec)" after the board of the number of sheets
specified by this parameter is printed.
SMT Software Engineering Group
IMOperationsYAMAHAMOTORCO.,LTD.
MDOC-SOFT50033
6/30
NOTE: When “Feedback” mode is selected, this
parameter is hidden.
Solder Supply Timer (msec) 1500
0～99999
This is supply time in which solder is supplied at
once. The solder of about 10.0 (g) per 2000 (msec)
is supplied. (But, the solder supply amount
depends on the supply pressure, the kind of solder,
and the temperature.)
NOTE: When “Feedback” mode is selected, this
parameter is hidden.
Solder Supply Pressure (MPa) 0.150
0.000～0.400
The supply pressure of the solder used by this
board data can be input. Please use it as a memo.
(This value is not used to control pressure.)
Solder Supply Offset (mm) 0.000
-999.999～
999.999
This value changes the position in which solder is
supplied. When plus value is set, the supply
position is offset the direction that outward from
mask center.
NOTE: Please set an initial value usually.
SMT Software Engineering Group
IMOperationsYAMAHAMOTORCO.,LTD.
MDOC-SOFT50033
7/30
4. Details
4.1 Operation while the Auto-running and the Rolling
The PSC action has two supply modes as the above-mentioned. Those details are described in this
section.
Those modes have a merit and a demerit. Please select which mode to use as your operation and usage.
Interval mode
Because the solder of the decided time is supplied at decided interval, the used amount of the
solder in the syringe is easy manageable and the timing that solder in the syringe empties
cannot be forecasted. From the production planning, the usable number of the solder syringe is
forecast and can be managed inventory.
But, this function’s purpose of “the change of the solder rolling width on the mask is
suppressed within 1mm” is not accomplished.
Feedback mode
The change of the solder rolling width on the mask is suppressed within 1mm by scanning
the rolling width and supplying the solder automatically and the print quality can be improved.
But, neither the supply time nor the supply timing are necessarily fixed every time, the
timing that solder empties cannot be forecasted, too.
And, the rolling width scan action is executed after printing in the backward direction regardless of the
setting of the supply mode. The PSC action transition result of each printed board is displayed after the
PSC action (supplying the solder and scanning the rolling width) is executed while the Auto-running. This
PSC action transition result is displayed in the window of [Monitor] – [PSC Transition] and the window
of [MIS] – [Board Log]. For more details, please refer to “4.2.5 PSC action result output function”.
4.1.1 Interval mode
This mode is a mode that supplies the time specified by “Solder Supply Timer (msec)” at the interval
specified by “Solder Supply Interval (Board)”.
The rolling width scan action is executed after printing in the backward direction and its transition
result of each printed board is displayed after this action. Please use this result for the confirmation of the
change in the rolling width and the rough standard of decision of the “Solder Supply Timer (msec)” and
the “Solder Supply Interval (Board)”.
NOTE: When this mode is selected, all of the PSC actions are not executed during the Rolling
action or the Test-printing.
