17 Assembly Instructions 4 Installation of the XPL SIPLACE X-Series Productivity Shu ttle T ype I/II 4.3 Aligning the XPL 2. Connect the limit switch cable, which is already installed in the placement s ystem, to the XPL…

4 Installation of the XPL Assembly Instructions

4.2 Making Electrical Connections SIPLACE X-Series Productivity Shuttle Type I/II

4.2 Making Electrical Connections

1. Join together the connectors of the two parts of the XPL. These cannot be interchanged

because the different cable lengths mean that only two connector pairs per side fit each other.

NOTE

Make sure that the cables do not protrude the duct.

Join together the

appropriate connectors

on both sides of the XPL.

Assembly Instructions 4 Installation of the XPL

SIPLACE X-Series Productivity Shuttle Type I/II 4.3 Aligning the XPL

2. Connect the limit switch cable, which is already installed in the placement system, to the XPL.

4.3 Aligning the XPL

1. Switch on the SIPLACE X-Series again at the main switch.

NOTE

For better accessibility, the walls should be in position 268 and the machine should be

operated in the “Transport walls outside” or “Fixed rail outside” transport mode!

2. Adjust the width of both transport tracks of the SIPLACE X-Series to 152 mm.

3. Push the two transport walls of the XPL apart up to the stop. Make sure that all three adjusting

units of the XPL are moved the maximum distance apart!

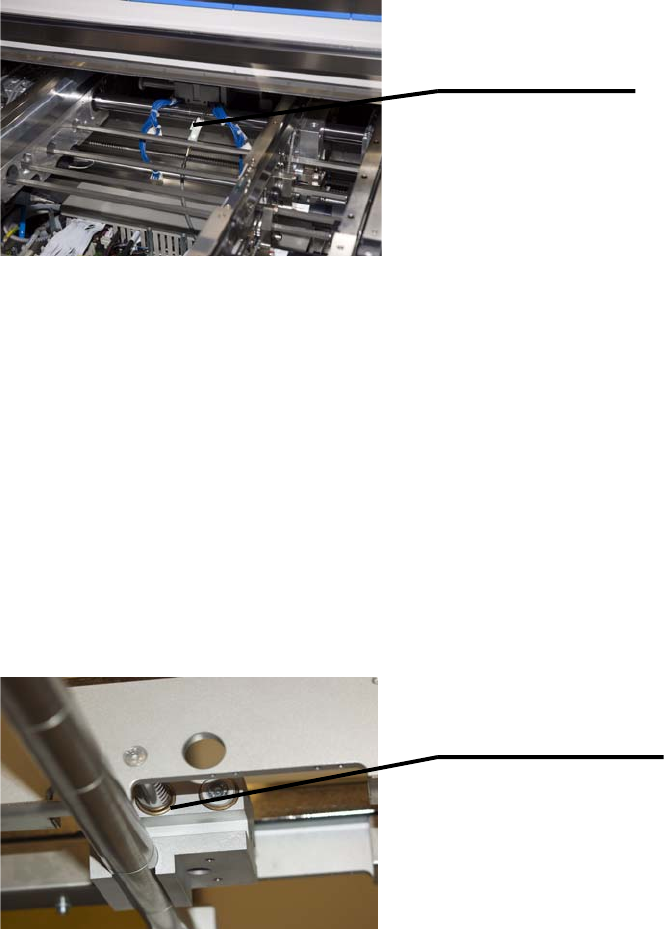

Connect limit switch

cable to XPL.

Adjusting unit of XPL

4 Installation of the XPL Assembly Instructions

4.3 Aligning the XPL SIPLACE X-Series Productivity Shuttle Type I/II

4. Now align the XPL laterally so that it runs in the center between the two transport tracks of the

SIPLACE X-Series and the limit switches are just short of being activated. Lightly tighten the

fastening screws.

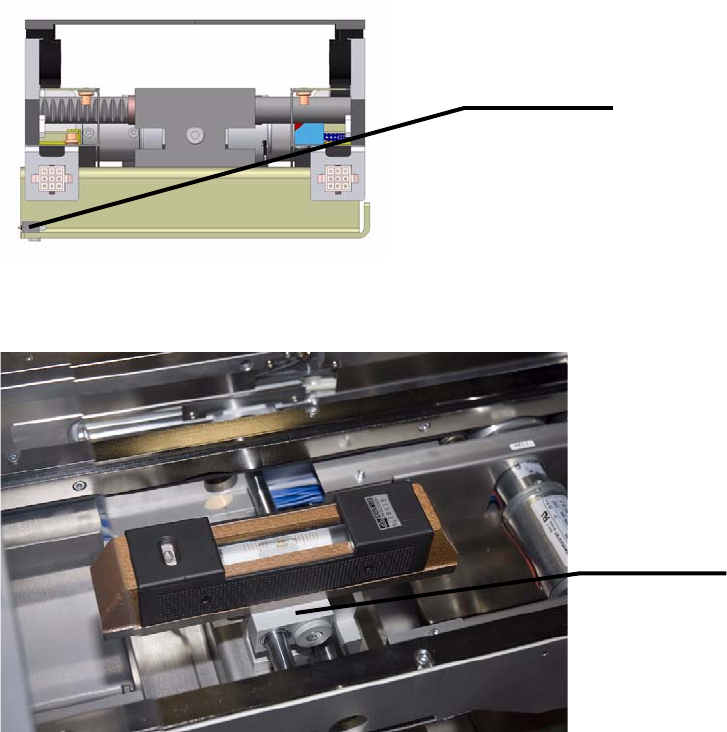

5. Now place the precision spirit level on the top of the shaft bearing of the XPL, as shown below.

6. Turn the shaft bearing until is leveled and then tighten the screws of the shaft clamping. This

adjusts the height of the XPL. Perform this adjustment on the inlet and outlet of the SIPLACE

X-Series. The placement system must have already been adjusted and aligned prior to this.

Limit switch

Shaft bearing
